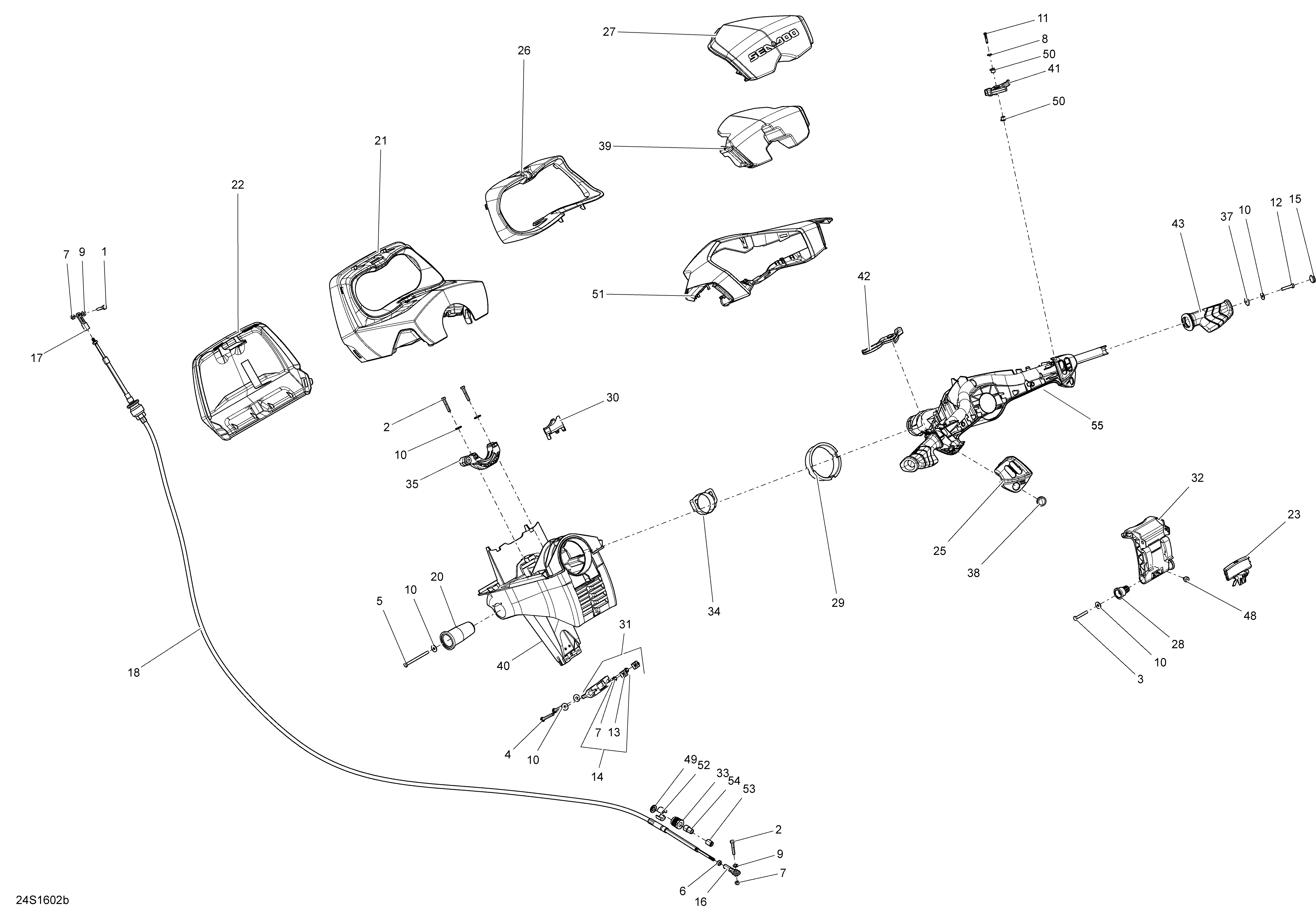

07- Steering - Without Suspension для BRP GTX - 2016
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
2207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
5207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
6211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
7232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
8234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
12250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
13269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
14269501166 Nut Housing Ass'yNut Housing Ass'y
-
15277000203 Cap, BlackCap, Black
-
16277000775 Ball JointBall Joint
-
17277001180 Ball JointBall Joint
-
18277001602 Steering CableSteering Cable
-
20277001605 Steering Support PivotSteering Support Pivot
-
21277001953 Gauge SupportGauge Support
-
22277001613 Gauge Support CoverGauge Support Cover
-
23277001616 LockLock
-
25277001625 RH Housing CoverRH Housing Cover
-
25277001626 LH Housing Cover. Package LTDLH Housing Cover. Package LTD
-
25277001860 LH Housing Cover. Package STDLH Housing Cover. Package STD
-
26277001630 Gauge Trim, BlackGauge Trim, Black
-
27277001904 Steering Pad, BlackSteering Pad, Black
-
28277001652 PivotPivot
-
29277001653 Wear RingWear Ring
-
30277001654 SpacerSpacer
-
31277001655 Thrust Support Ass'yThrust Support Ass'y
-
32277001658 Handle Ass'yHandle Ass'y
-
33277001729 Steering Cable LockSteering Cable Lock
-
34277001741 Wear RingWear Ring
-
35277001779 Support Ass'ySupport Ass'y
-
37277001863 Insert Grip HandleInsert Grip Handle
-
38277001887 Knob Switch, RedKnob Switch, Red
-
38277001888 Knob Switch, GreyKnob Switch, Grey
-
39277001921 Handle Bar FoamHandle Bar Foam
-
40277001942 Steering SupportSteering Support
-
41277001944 Throttle HandleThrottle Handle
-
42277001945 Reverse HandleReverse Handle
-
43277001946 Handle Grip RHHandle Grip RH
-
43277001958 Handle Grip LHHandle Grip LH
-
48293830005 Rubber BumperRubber Bumper
-
49293830063 Rubber WasherRubber Washer
-
50293900091 BushingBushing
-
51277001969 Steer. CoverSteer. Cover
-
52277001527 Half RingHalf Ring
-
53277001582 Small BootSmall Boot
-
54277001583 Large BootLarge Boot
-
55277001963 SteeringSteering
