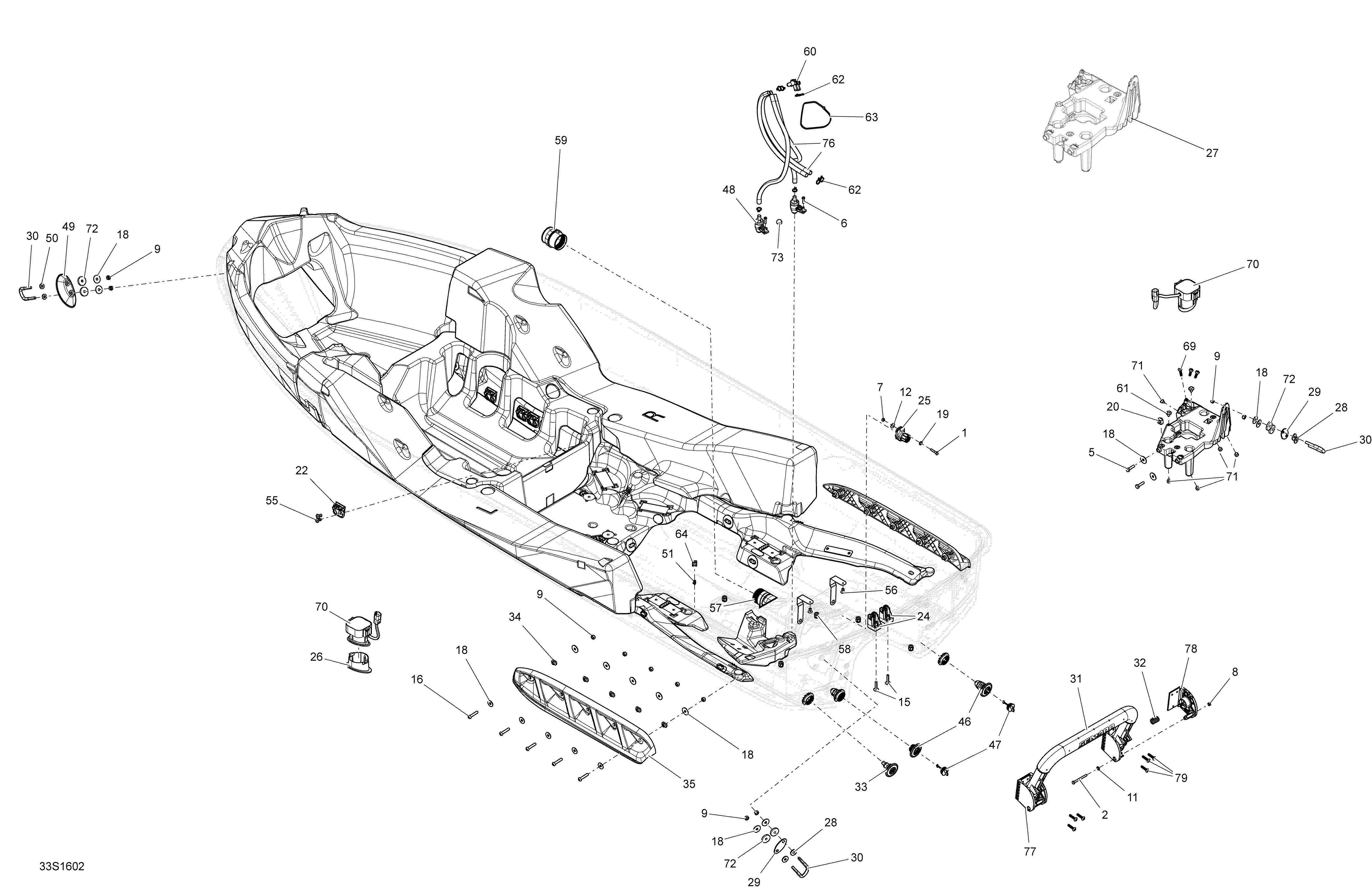

09- Hull для BRP GTX - 2016
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30. Model without 300 EngineHex. Screw M6 X 30. Model without 300 Engine
-
2207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
5207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
6211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
7232561200 Elastic Stop Nut M6, Brass. Model without 300 EngineElastic Stop Nut M6, Brass. Model without 300 Engine
-
8232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
9232581200 Hex. Elastic Nut M8, Brass. Model With SuspensionHex. Elastic Nut M8, Brass. Model With Suspension
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234062600 Flat Washer M6, Stainless. Model without 300 EngineFlat Washer M6, Stainless. Model without 300 Engine
-
15250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
16250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
18250200011 Flat Washer 8 mm, Stainless. Model With SuspensionFlat Washer 8 mm, Stainless. Model With Suspension
-
18250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19250200114 Sealing Washer. Model without 300 EngineSealing Washer. Model without 300 Engine
-
20269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
22270000933 Strap Retaining. Model without 300 EngineStrap Retaining. Model without 300 Engine
-
24270000988 Strap AnchorStrap Anchor
-
25277001881 Cable Adaptor Ass'y. Model without 300 EngineCable Adaptor Ass'y. Model without 300 Engine
-
26278001994 Depth Sensor BaseDepth Sensor Base
-
27278003273 Battery Base Ass'yBattery Base Ass'y
-
28279000164 Flat WasherFlat Washer
-
29291001386 Finition Plate, BlackFinition Plate, Black
-
30292000933 U-ClampU-Clamp
-
31292001204 Overmolded BarOvermolded Bar
-
32292001259 SpringSpring
-
33292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
33a292001825 Plastic NutPlastic Nut
-
34292001349 Spacer SponsonSpacer Sponson
-
35292001878 RH SponsonRH Sponson
-
35292001877 LH SponsonLH Sponson
-
46292001580 Drain Ass'yDrain Ass'y
-
46a292001825 Plastic NutPlastic Nut
-
47292001583 Plug Ass'yPlug Ass'y
-
48292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
49292001867 Bow CupBow Cup
-
50293050001 Flat WasherFlat Washer
-
51293150037 Avdel Rivet 3/16''. Model With SuspensionAvdel Rivet 3/16''. Model With Suspension
-
51293150037 Avdel Rivet 3/16''. Model GTX without 300 EngineAvdel Rivet 3/16''. Model GTX without 300 Engine
-
55293150123 Pop Rivet 3/16''. Model With SuspensionPop Rivet 3/16''. Model With Suspension
-
55293150123 Pop Rivet 3/16''. Model GTX without 300 EnginePop Rivet 3/16''. Model GTX without 300 Engine
-
56293150186 Pop Rivet 3/16Pop Rivet 3/16
-
57293450309 Outer Hull Insert. Model without 300 EngineOuter Hull Insert. Model without 300 Engine
-
59293450355 Hull Insert. Model without 300 EngineHull Insert. Model without 300 Engine
-
60293710152 Fitting Elbow 90°Fitting Elbow 90°
-
61293730040 Mount DartMount Dart
-
62293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
63293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
64293750026 Tie Rap Mount. Model With SuspensionTie Rap Mount. Model With Suspension
-
64293750026 Tie Rap Mount. Model GTX without 300 EngineTie Rap Mount. Model GTX without 300 Engine
-
69250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
70278002954 Depth SensorDepth Sensor
-
71293830005 Rubber BumperRubber Bumper
-
72293830037 Rubber WasherRubber Washer
-
73293830080 Floating BallFloating Ball
-
76275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
77292001509 A Section SupportA Section Support
-
78292001510 B Section SupportB Section Support
-
79250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
