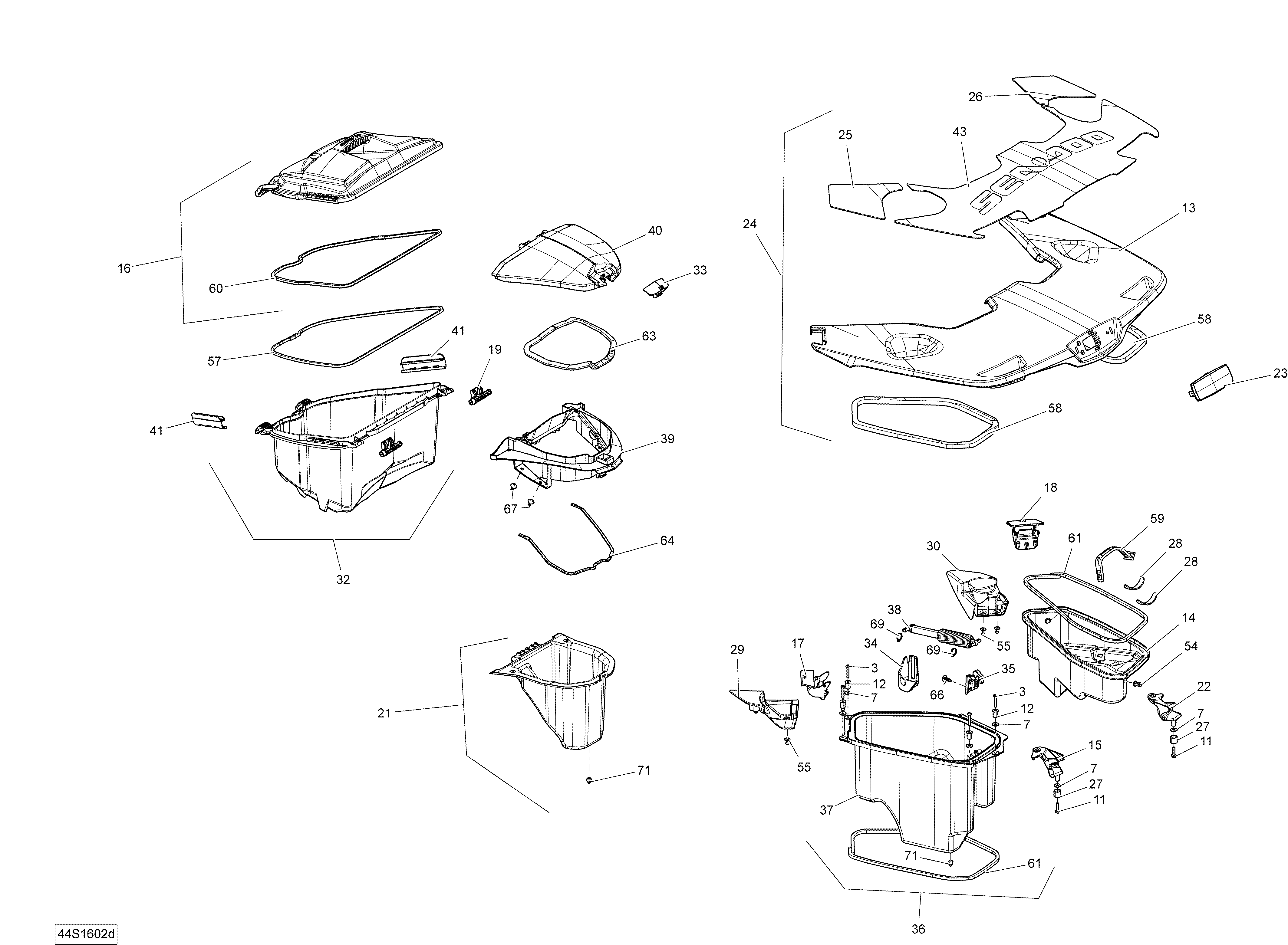

09- Storage Compartments - GTX S 155 для BRP GTX - 2016
-
№АртикулНазвание
-
3205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
12250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
13264000034 Rear Platform Ass'yRear Platform Ass'y
-
14264000002 RH Rear TrayRH Rear Tray
-
15264000003 LH Pivot SupportLH Pivot Support
-
16264000120 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
17264000020 LH LatchLH Latch
-
18264000021 RH LatchRH Latch
-
19264000024 LatchLatch
-
21264000031 Glove Box Ass'yGlove Box Ass'y
-
22264000032 RH Pivot SupportRH Pivot Support
-
23264000033 Rear Rewind CapRear Rewind Cap
-
24264000034 Rear Platform Ass'yRear Platform Ass'y
-
25264000040 LH Platform CarpetLH Platform Carpet
-
26264000041 RH Platform CarpetRH Platform Carpet
-
27264000042 SpacerSpacer
-
28264000043 Tray PadTray Pad
-
29264000055 LH Latch Base, BlackLH Latch Base, Black
-
30264000056 RH Latch Base, BlackRH Latch Base, Black
-
32264000118 Storage Bin Ass'yStorage Bin Ass'y
-
33264000091 Latch, BlackLatch, Black
-
34264000092 StiffenerStiffener
-
35264000093 StiffenerStiffener
-
36264000097 LH TrayLH Tray
-
37264000097 LH TrayLH Tray
-
38264000099 Shock Ass'yShock Ass'y
-
39264000112 Glove Box Ext.Glove Box Ext.
-
40264000111 Door Ass'y. Incl 33, 63Door Ass'y. Incl 33, 63
-
41269501609 ClipClip
-
43291002585 Rear Platform CarpetRear Platform Carpet
-
54293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
55293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
57293250161 GasketGasket
-
58293250186 GasketGasket
-
59269500408 StrapStrap
-
60293250210 Neoprene SealNeoprene Seal
-
61293250218 GasketGasket
-
63293250367 GasketGasket
-
64293250376 SealSeal
-
66293730006 Black DartBlack Dart
-
67293730011 Dart, BlackDart, Black
-
69293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
71293830005 Rubber BumperRubber Bumper
