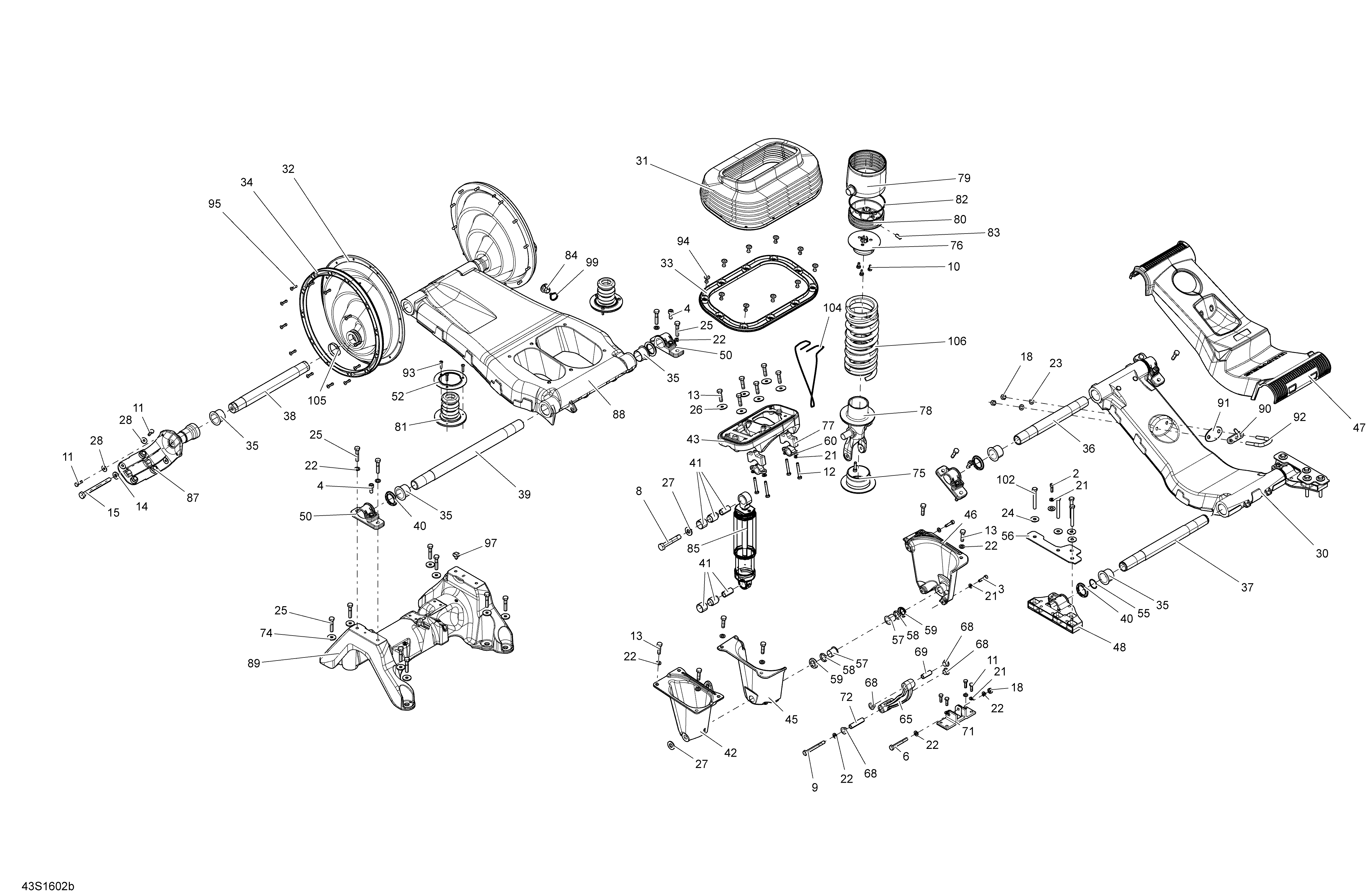

08- Suspension - GTX S для BRP GTX - 2016
-
№АртикулНазвание
-
2205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
4205582060 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
6207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
8207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
9207287560 Hex. Screw M8 x 75, Scotch GripHex. Screw M8 x 75, Scotch Grip
-
10207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
11207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
12207364560 Hex. Screw M6 x 45, Scotch GripHex. Screw M6 x 45, Scotch Grip
-
13207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
14211200051 Flat WasherFlat Washer
-
15230201060 Hex. Screw M10 X 110, Scotch GripHex. Screw M10 X 110, Scotch Grip
-
18232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
21234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
22234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
23234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
25250000729 Hex. Screw M8 X 40, SOtch GripHex. Screw M8 X 40, SOtch Grip
-
26250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
27250200053 Flat Washer M12Flat Washer M12
-
28250200115 Flat Washer M6Flat Washer M6
-
30279000001 Rear Arm Ass'yRear Arm Ass'y
-
31279000008 Central BellowsCentral Bellows
-
32279000009 Lateral BellowsLateral Bellows
-
33279000010 Retaining PlateRetaining Plate
-
34279000011 Retaining RingRetaining Ring
-
35279000019 BushingBushing
-
36279000031 Pivot TubePivot Tube
-
37279000033 Pivot TubePivot Tube
-
38279000038 Pivot TubePivot Tube
-
39279000041 Pivot TubePivot Tube
-
40279000047 Rubber BumperRubber Bumper
-
41279000051 BushingBushing
-
42279000055 Shock Lower HolderShock Lower Holder
-
43279000057 Shock Upper HolderShock Upper Holder
-
45279000070 LH Spring HolderLH Spring Holder
-
46279000074 RH Spring HolderRH Spring Holder
-
47279000080 Rear Arm MouldingRear Arm Moulding
-
48279000083 LH Rear BaseLH Rear Base
-
50279000092 RH ClampRH Clamp
-
50279000089 LH ClampLH Clamp
-
52279000115 Retaining RingRetaining Ring
-
55279000100 Retaining RingRetaining Ring
-
56279000114 Retaining PlateRetaining Plate
-
57279000103 BushingBushing
-
58279000104 O-RingO-Ring
-
59279000105 BushingBushing
-
60279000106 ClampClamp
-
65279000157 Spring Alignment ArmSpring Alignment Arm
-
68279000137 BushingBushing
-
69279000138 SpacerSpacer
-
71279000155 BracketBracket
-
72279000153 SpacerSpacer
-
74279000164 Flat WasherFlat Washer
-
75279000182 Lower Spring ProtectorLower Spring Protector
-
76279000183 Upper Spring ProtectorUpper Spring Protector
-
77279000206 E-Coat SpacerE-Coat Spacer
-
78279000188 Lower Spring ProtectorLower Spring Protector
-
79279000189 Upper Spring HolderUpper Spring Holder
-
80279000191 Upper Spring HolderUpper Spring Holder
-
81279000193 Rubber BumperRubber Bumper
-
82279000198 Retaining RingRetaining Ring
-
83279000205 PlungerPlunger
-
84279000321 GrommetGrommet
-
85279000218 ShockShock
-
87279000306 Foot RestFoot Rest
-
88279000308 Front Arm Ass'yFront Arm Ass'y
-
89279000316 Front Arm BaseFront Arm Base
-
90291002351 HookHook
-
91291001386 Finition Plate, BlackFinition Plate, Black
-
92292000933 U-ClampU-Clamp
-
93293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
94293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
95293150176 Pop Rivet 3/16''Pop Rivet 3/16''
-
97293730040 Mount DartMount Dart
-
99293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
102207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
104708200118 Retaining CableRetaining Cable
-
105293650242 Oetiker ClampOetiker Clamp
-
106279000219 Painted SpringPainted Spring
