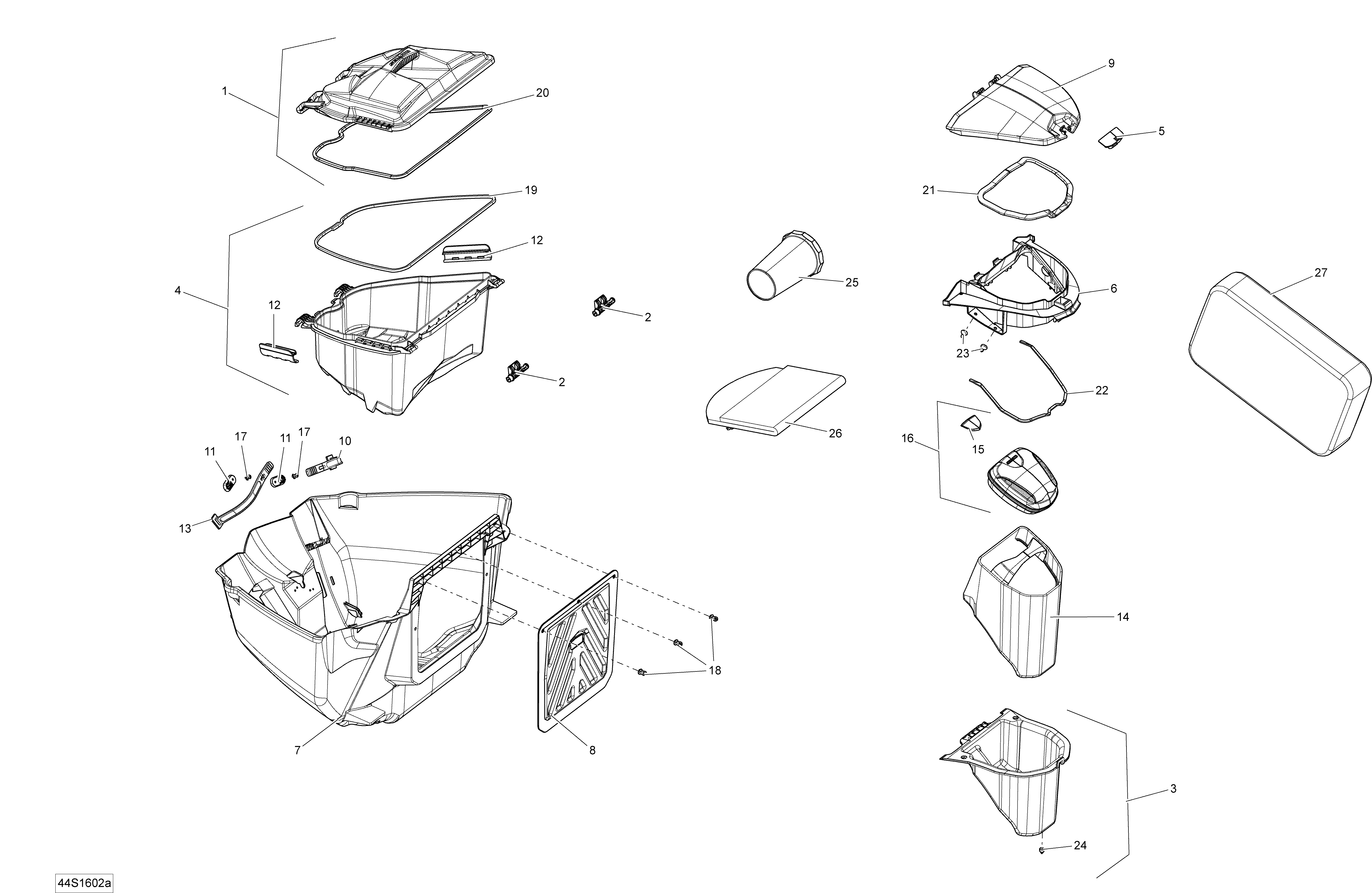

09- Storage Compartments - GTX LTD для BRP GTX - 2016
-
№АртикулНазвание
-
1264000120 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
2264000024 LatchLatch
-
3264000031 Glove Box Ass'yGlove Box Ass'y
-
4264000118 Storage Bin Ass'yStorage Bin Ass'y
-
5264000091 Latch, BlackLatch, Black
-
6264000112 Glove Box Ext.Glove Box Ext.
-
8264000114 Door Compartm.Door Compartm.
-
9264000111 Door Ass'y. Incl 5, 21Door Ass'y. Incl 5, 21
-
10269500408 StrapStrap
-
11269500521 HookHook
-
12269501609 ClipClip
-
13269502145 StrapStrap
-
14291002761 Protection LinerProtection Liner
-
15291002793 Sea-Doo DecalSea-Doo Decal
-
16291002814 Removable Case Ass'yRemovable Case Ass'y
-
17293150027 Avdel RivetAvdel Rivet
-
18293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
19293250161 GasketGasket
-
20293250210 Neoprene SealNeoprene Seal
-
21293250367 GasketGasket
-
22293250376 SealSeal
-
23293730011 Dart, BlackDart, Black
-
24293830005 Rubber BumperRubber Bumper
-
25295100330 Safety KitSafety Kit
-
26269001936 BagBag
-
27280000460 CoverCover
