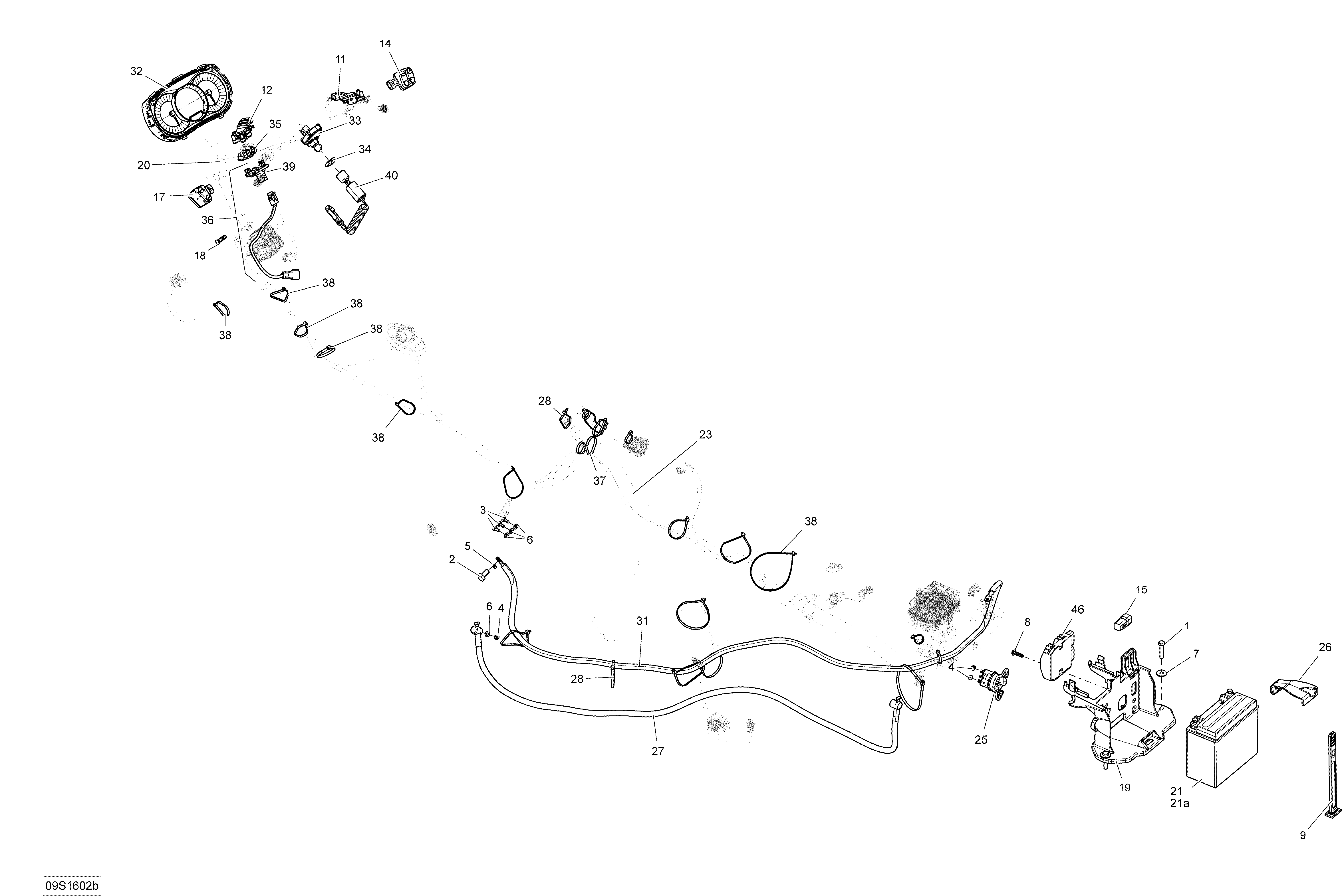

10- Electrical System - GTX S 155 для BRP GTX - 2016
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
9269500408 StrapStrap
-
11278002283 RH Throttle SensorRH Throttle Sensor
-
12278002284 LH Throttle SensorLH Throttle Sensor
-
14278002602 SwitchSwitch
-
15278002704 Diagnostic ConnectorDiagnostic Connector
-
17278002768 SwitchSwitch
-
18278002910 ClipClip
-
19278003136 Batt. SupportBatt. Support
-
20278003265 Steering Harness Ass'ySteering Harness Ass'y
-
21410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
21a250000282 Battery Bolt KitBattery Bolt Kit
-
23278003332 Wiring HarnessWiring Harness
-
25278003012 Starter RelayStarter Relay
-
26278003359 ClipClip
-
27278003398 Cable-StarterCable-Starter
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31278003269 Battery Ground CableBattery Ground Cable
-
32278003376 LCD GaugeLCD Gauge
-
33515178049 DESS SwitchDESS Switch
-
34278002963 Safety NutSafety Nut
-
35278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
36278003009 O.T.A.S. Sensor Ass'yO.T.A.S. Sensor Ass'y
-
37293750053 Tie Rap 300mmTie Rap 300mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
39278003008 O.T.A.S. SensorO.T.A.S. Sensor
-
40278003400 Anti-Theft Tether CordAnti-Theft Tether Cord
-
40278003401 Anti-Theft Tether Cord, LearningAnti-Theft Tether Cord, Learning
-
46710001103 Voltage RegulatorVoltage Regulator
