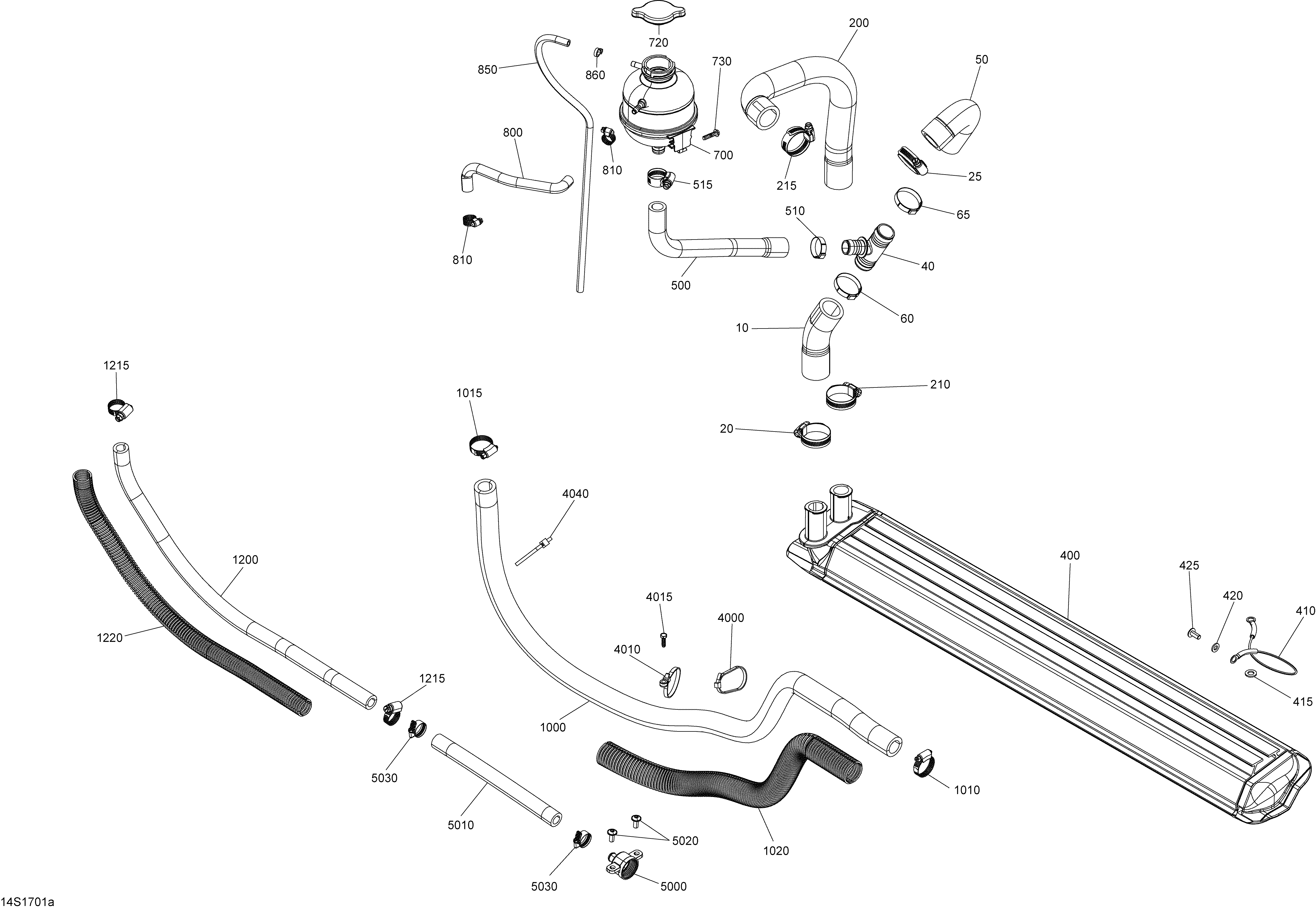

01- Cooling System - All Models для BRP SPARK - 2017
-
№АртикулНазвание
-
10276000292 Radiator HoseRadiator Hose
-
20293650245 Norma ClampNorma Clamp
-
25293650245 Norma ClampNorma Clamp
-
40509000372 T-FittingT-Fitting
-
50276000301 HoseHose
-
60509000529 Oetiker Gear ClampOetiker Gear Clamp
-
65509000529 Oetiker Gear ClampOetiker Gear Clamp
-
200276000291 Radiator HoseRadiator Hose
-
210293650245 Norma ClampNorma Clamp
-
215293650245 Norma ClampNorma Clamp
-
400276000389 Heat ExchangerHeat Exchanger
-
410278003272 Ground WireGround Wire
-
420234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
425250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
500276000290 HoseHose
-
510293650099 Crimp ClampCrimp Clamp
-
515293650016 Tridon ClampTridon Clamp
-
700509000802 Coolant TankCoolant Tank
-
720509000180 Pressure CapPressure Cap
-
730241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
730a269501166 Nut Housing Ass'yNut Housing Ass'y
-
800276000316 Formed HoseFormed Hose
-
810293650170 Tridon Gear ClampTridon Gear Clamp
-
850415080200 Hose, PolyurethaneHose, Polyurethane
-
860293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
1000276000158 Hose 19 mm. Engine 900HO ACEHose 19 mm. Engine 900HO ACE
-
1010293650051 Tridon Gear ClampTridon Gear Clamp
-
1015293650051 Tridon Gear ClampTridon Gear Clamp
-
1020409902200 Tubing 25 mmTubing 25 mm
-
1210293650172 Tridon Gear ClampTridon Gear Clamp
-
1215293650172 Tridon Gear ClampTridon Gear Clamp
-
1220409901600 Tubing 19 mmTubing 19 mm
-
4000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4010293750049 Tie Rap 305 mmTie Rap 305 mm
-
4015211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4040414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5000269800521 Drain Plug NeckDrain Plug Neck
-
5010296000303 Hose 12.5 mmHose 12.5 mm
-
5020250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
5030293650172 Tridon Gear ClampTridon Gear Clamp
