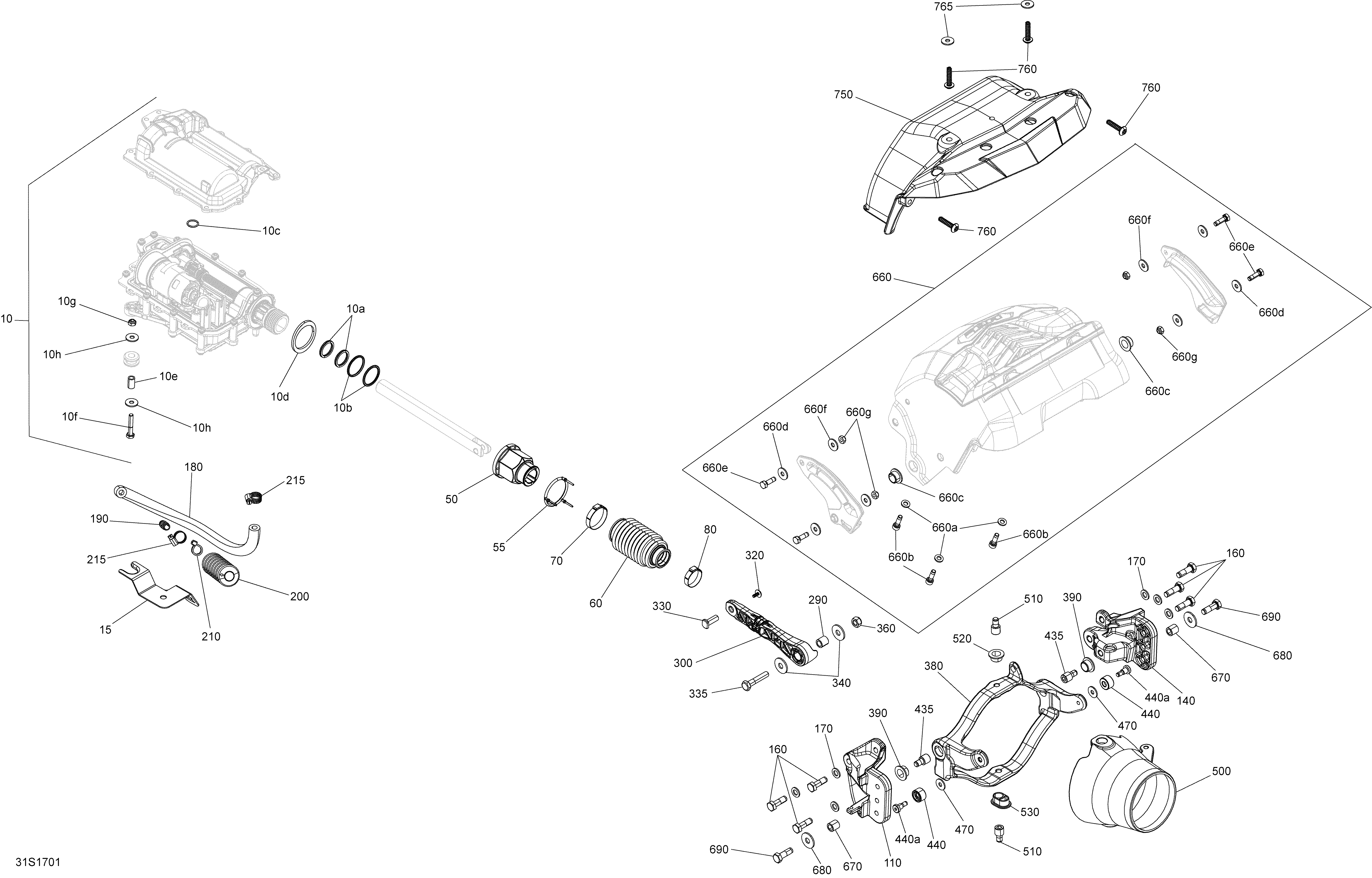

05- Reverse - Models with iBR для BRP SPARK - 2017
-
№АртикулНазвание
-
10>10h278003478 Actuator. Includes 10 to 10hActuator. Includes 10 to 10h
-
10a279000108 O-RingO-Ring
-
10b293300107 O-RingO-Ring
-
10c293300187 O-RingO-Ring
-
10d268000208 GasketGasket
-
10e271001020 SpacerSpacer
-
10f207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
10g232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10h234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15268000210 Actuator SupportActuator Support
-
50268000267 Ibr NutIbr Nut
-
55277001977 Rubber GasketRubber Gasket
-
60268000186 BootBoot
-
70509000529 Oetiker Gear ClampOetiker Gear Clamp
-
80293650099 Crimp ClampCrimp Clamp
-
110268000163 LH Reverse SupportLH Reverse Support
-
140268000166 RH Reverse SupportRH Reverse Support
-
160207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
170234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
180509000407 Hose 8 mmHose 8 mm
-
190293710157 Fitting-StraigFitting-Straig
-
200268000211 Inner BootInner Boot
-
210293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
215293650171 Tridon Gear ClampTridon Gear Clamp
-
290271001039 SpacerSpacer
-
300268000187 Reverse RodReverse Rod
-
320250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
330268000207 Shoulder PinShoulder Pin
-
335207084060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
340234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
360232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
380268000179 Trimming RingTrimming Ring
-
390293900007 Venturi BushingVenturi Bushing
-
435268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
440>440a295501160 Roller Bushing Kit. Includes 440 to 440aRoller Bushing Kit. Includes 440 to 440a
-
440a250000775 Screw-Socket Shoulder M8X8Screw-Socket Shoulder M8X8
-
470234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500267000705 NozzleNozzle
-
510268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
520293900007 Venturi BushingVenturi Bushing
-
530293900010 Plastic BushingPlastic Bushing
-
660>660g268000303 Reverse Gate Ass'y. Trim Ramp Kit 295501169. Includes 660 to 660gReverse Gate Ass'y. Trim Ramp Kit 295501169. Includes 660 to 660g
-
660a234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
660b205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
660c293900007 Venturi BushingVenturi Bushing
-
660d234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
660e207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
660f234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
660g232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
670271001039 SpacerSpacer
-
680234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
690207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
750268000189 Guard. Model 2 upGuard. Model 2 up
-
760250000828 Screw Torx M6.81 X 30. Model 2 upScrew Torx M6.81 X 30. Model 2 up
-
765234062600 Flat Washer M6, Stainless. Model 2 upFlat Washer M6, Stainless. Model 2 up
