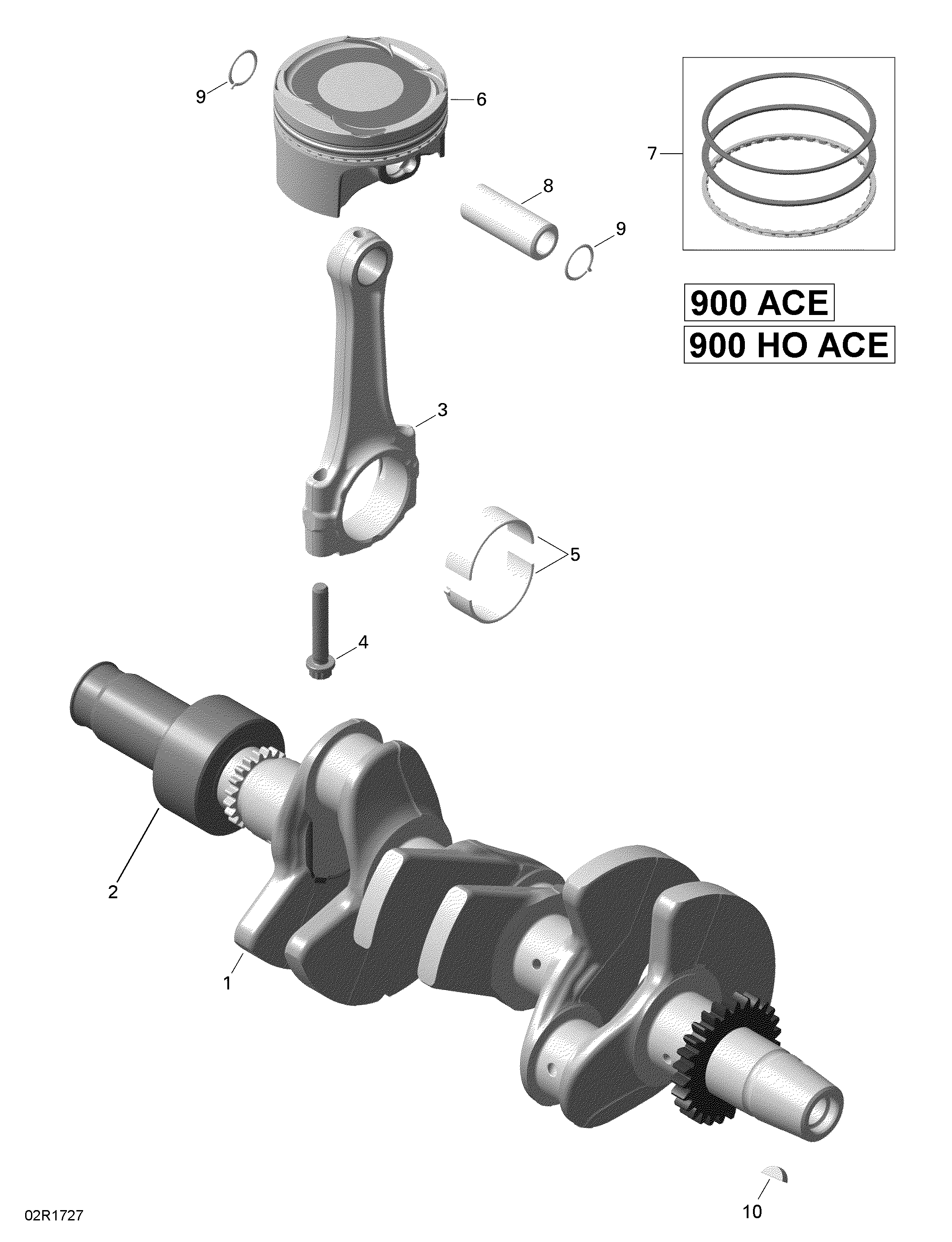

01- Crankshaft and Pistons - 900-900 HO ACE для BRP SPARK - 2017
![](/wa-data/public/shop/sheme/bombardier/watercraft/6a118dd5-8f10-4605-96a5-b4fd9a82213b.png)
-
№АртикулНазвание
-
1420819809 Crankshaft Ass'y. Include 2, 10.Crankshaft Ass'y. Include 2, 10.
-
2420947573 Output SleeveOutput Sleeve
-
3420917705 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641790 Connecting Rod Screw M7 X 1Connecting Rod Screw M7 X 1
-
5420933191 Plain BearingPlain Bearing
-
6420892821 Piston Ass'y, 73.958 mm. Includes 6 to 7Piston Ass'y, 73.958 mm. Includes 6 to 7
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916510 Piston PinPiston Pin
-
9420845810 Piston CirclipPiston Circlip
-
10420246571 Woodruff KeyWoodruff Key
