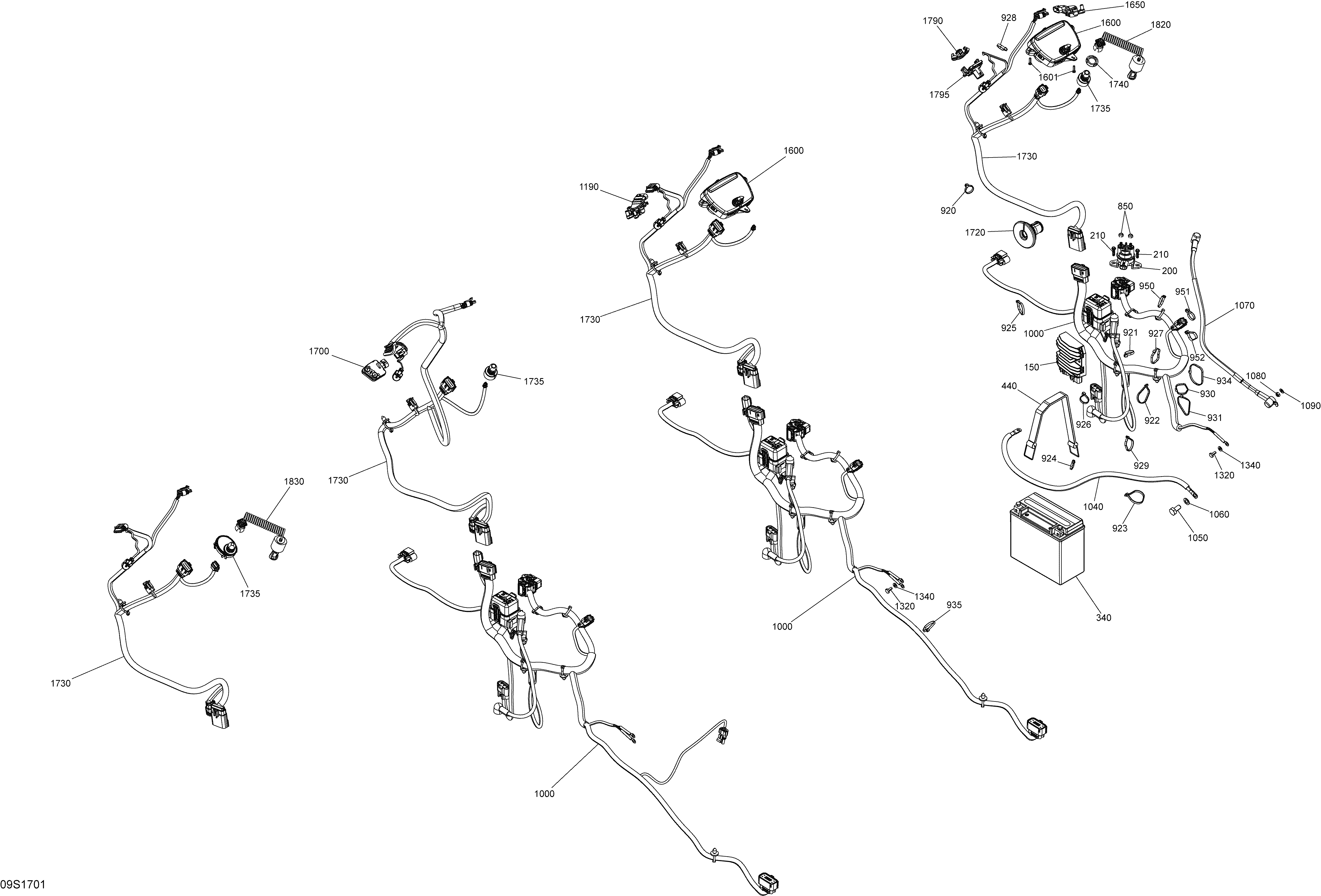

10- Electrical System - All Models для BRP SPARK - 2017
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
200278003012 Starter RelayStarter Relay
-
210241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
340410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
440293850093 StrapStrap
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
920414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
921414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
922414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
923414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
924414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
926414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
927414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
928414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
929414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
930414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
931414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
934414115200 Tie-Rap 180 mm. Models with iBRTie-Rap 180 mm. Models with iBR
-
935414115200 Tie-Rap 180 mm. Models with iBRTie-Rap 180 mm. Models with iBR
-
950414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
951414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
952414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000278003422 Main Harness. Models with iBRMain Harness. Models with iBR
-
1000278003423 Main Harness. Models without iBRMain Harness. Models without iBR
-
1000278003470 Main Harness. Package TrixxMain Harness. Package Trixx
-
1040278003271 Cable GroundCable Ground
-
1050207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
1060234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
1070278003268 Cable StarterCable Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle Sensor. Models with iBRLH Throttle Sensor. Models with iBR
-
1320207361260 Hex. Screw M6 X 12, Scotch Grip. Except Package TrixxHex. Screw M6 X 12, Scotch Grip. Except Package Trixx
-
1340234061600 Flat Washer M6, Stainless. Except Package TrixxFlat Washer M6, Stainless. Except Package Trixx
-
1600278003404 LCD Gauge. Models without iBRLCD Gauge. Models without iBR
-
1600278003406 LCD Gauge. Models with iBRLCD Gauge. Models with iBR
-
1601250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278002604 Switch. Package TrixxSwitch. Package Trixx
-
1720293720092 Cable GrommetCable Grommet
-
1730278003225 Steering Harness Ass'y. Package Convenience with iBRSteering Harness Ass'y. Package Convenience with iBR
-
1730278003349 Steering Harness Ass'y. Package BaseSteering Harness Ass'y. Package Base
-
1730278003350 Steering Harness Ass'y. Package Base With IBRSteering Harness Ass'y. Package Base With IBR
-
1730278003417 Steering Harness Ass'y. Package TrixxSteering Harness Ass'y. Package Trixx
-
1735278002677 Emergency Switch Ass'y. Package BaseEmergency Switch Ass'y. Package Base
-
1735278002677 Emergency Switch Ass'y. Package TrixxEmergency Switch Ass'y. Package Trixx
-
1735515178225 DESS Switch. Package ConvenienceDESS Switch. Package Convenience
-
1740278002963 Safety NutSafety Nut
-
1790278003053 O.T.A.S Actuator. Models without iBRO.T.A.S Actuator. Models without iBR
-
1795278003008 O.T.A.S. Sensor. Models without iBRO.T.A.S. Sensor. Models without iBR
-
1795278003614 Sensor Simulator O.T.A.S.. Models with iBRSensor Simulator O.T.A.S.. Models with iBR
-
1820278003400 Anti-Theft Tether Cord. Package ConvenienceAnti-Theft Tether Cord. Package Convenience
-
1820278003410 Safety Lanyard Ass'y. Package BaseSafety Lanyard Ass'y. Package Base
-
1820278003410 Safety Lanyard Ass'y. Package TrixxSafety Lanyard Ass'y. Package Trixx
-
1830278003401 Anti-Theft Tether Cord, Learning. Package Convenience, Engine 900 HO ACEAnti-Theft Tether Cord, Learning. Package Convenience, Engine 900 HO ACE
