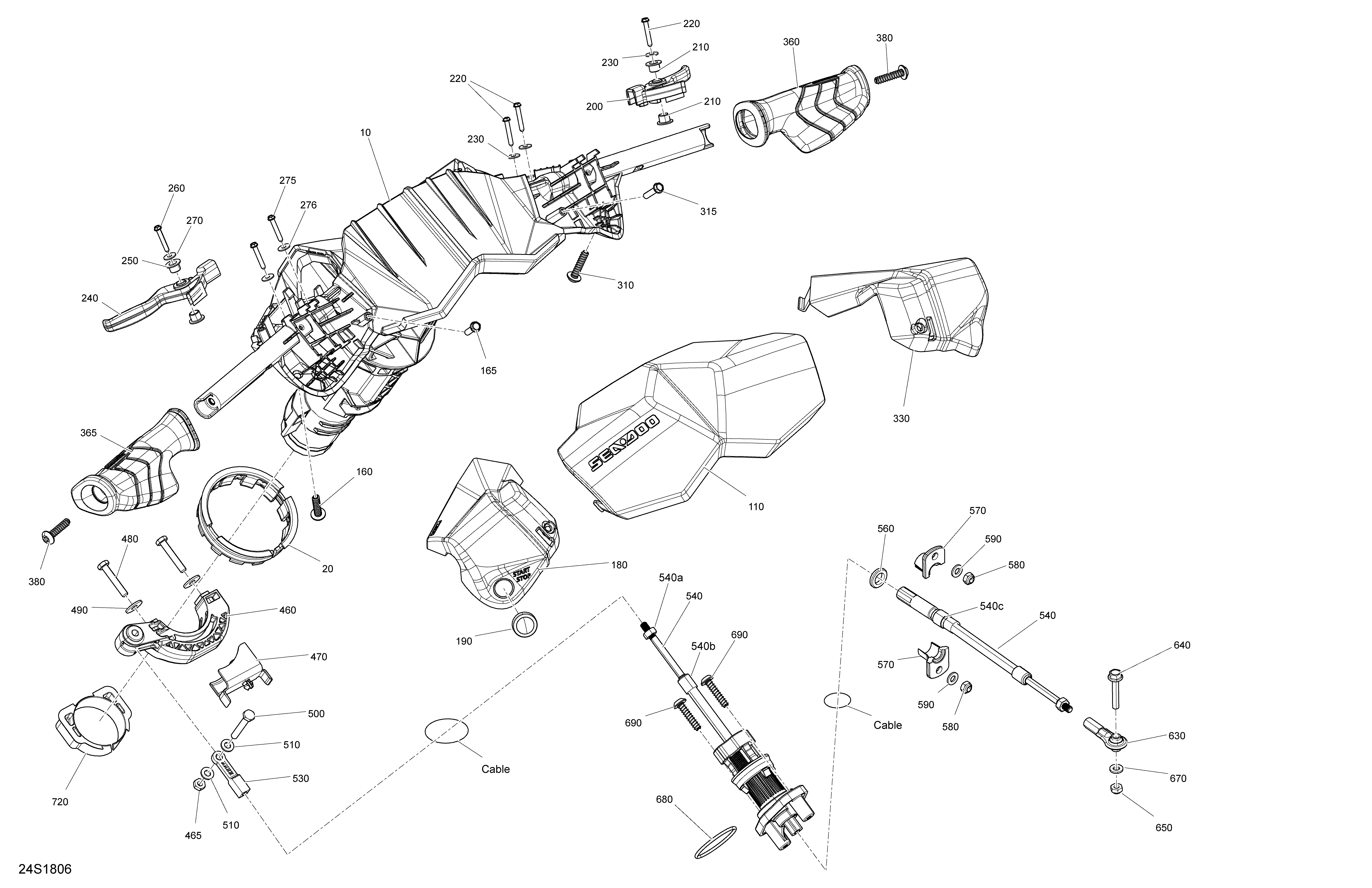

07- Steering Spark - Except Trixx для BRP SPARK - 2017
-
№АртикулНазвание
-
10277001952 SteeringSteering
-
20277001874 Wear RingWear Ring
-
110277001786 Steering Pad, Bright WhiteSteering Pad, Bright White
-
160250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
165211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
180277001787 LH CoverLH Cover
-
180277001900 LH Cover. With iBRLH Cover. With iBR
-
190277001887 Red Knob SwitchRed Knob Switch
-
200277001944 Throttle HandleThrottle Handle
-
210293900091 BushingBushing
-
220241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
230234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse Handle. With iBRReverse Handle. With iBR
-
250293900091 Bushing. With iBRBushing. With iBR
-
260241142560 Hex. Flanged Screw K40 X 25. With iBRHex. Flanged Screw K40 X 25. With iBR
-
270234042600 Flat Washer 4 mm, Stainless. With iBRFlat Washer 4 mm, Stainless. With iBR
-
275241142560 Hex. Flanged Screw K40 X 25. With iBRHex. Flanged Screw K40 X 25. With iBR
-
276234042600 Flat Washer 4 mm, Stainless. With iBRFlat Washer 4 mm, Stainless. With iBR
-
310250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
315211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
330277001788 RH CoverRH Cover
-
360277001946 Handle Grip RHHandle Grip RH
-
365277001958 Handle Grip LHHandle Grip LH
-
380250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
460277002019 Support Ass'ySupport Ass'y
-
465232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277001180 Ball JointBall Joint
-
540277002065 Steering Cable. Includes 540 to 540cSteering Cable. Includes 540 to 540c
-
540a211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540b277001582 Small BootSmall Boot
-
540c277001583 Large BootLarge Boot
-
560293830063 Rubber WasherRubber Washer
-
570277001856 Ring HalvesRing Halves
-
580232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
590234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
630277000775 Ball JointBall Joint
-
640207663560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680293300176 O-RingO-Ring
-
690250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
720277001741 Wear RingWear Ring
