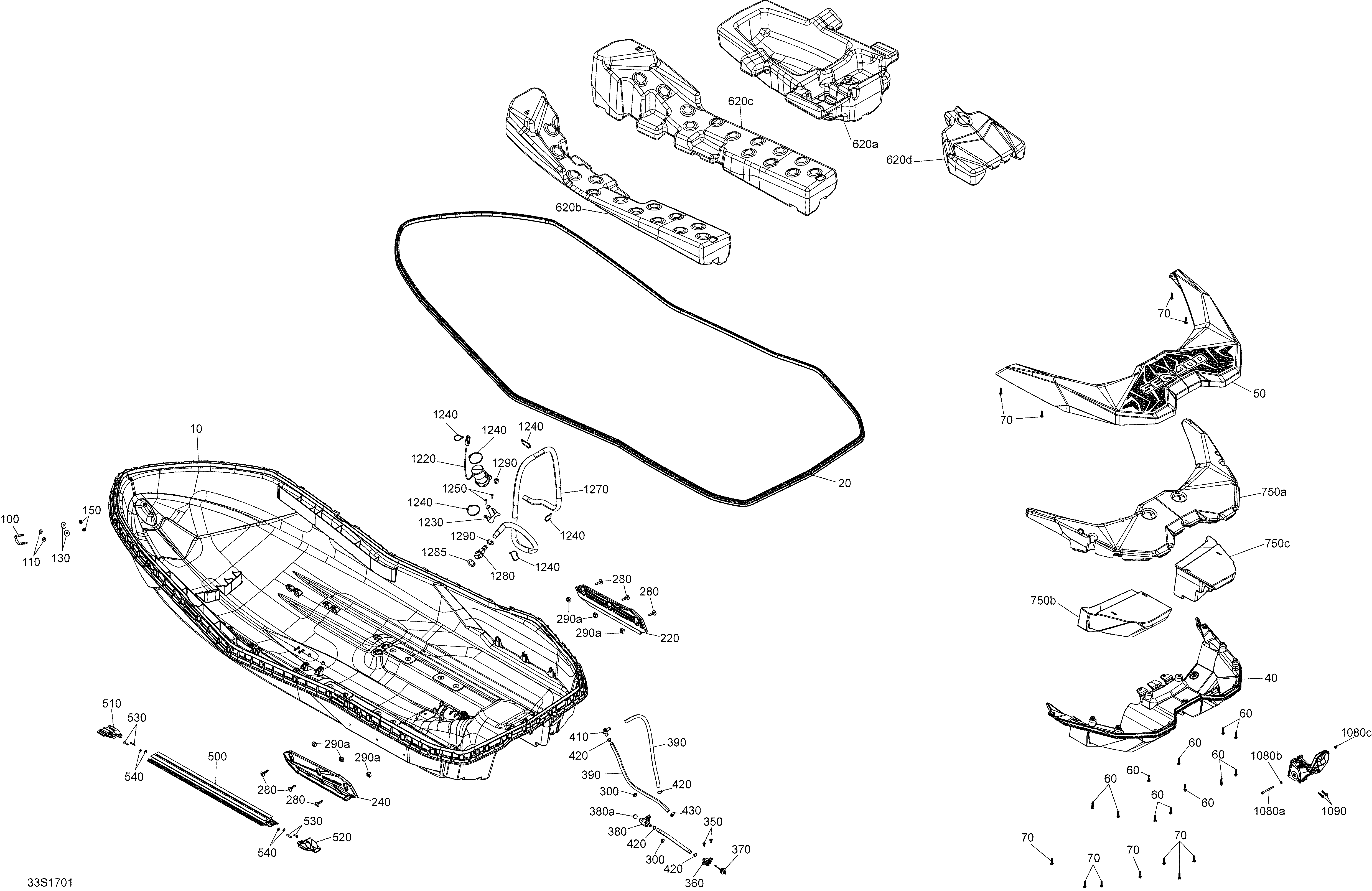

09- Hull - All Models для BRP SPARK - 2017
-
№АртикулНазвание
-
10295501164 Hull BlackHull Black
-
10a295501139 Insert Hull KitInsert Hull Kit
-
20293250338 Seal JointSeal Joint
-
40292002010 Hull Extension Black. Model 3 UPHull Extension Black. Model 3 UP
-
50291004596 Deck. Model 3 UPDeck. Model 3 UP
-
60243163060 Flanged Hex. Screw M6.81 X 30. Model 3 UPFlanged Hex. Screw M6.81 X 30. Model 3 UP
-
70250000828 Screw Torx M6.81 X 30. Model 3 UPScrew Torx M6.81 X 30. Model 3 UP
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
130250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220292002009 Sponson RHSponson RH
-
240292002008 Sponson LHSponson LH
-
280250000697 Torx Screw M8 X 35Torx Screw M8 X 35
-
290>290a269501943 Elastic Nut Housing M8. Includes 290 to 290aElastic Nut Housing M8. Includes 290 to 290a
-
290a232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
300293830063 Rubber WasherRubber Washer
-
350250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
360292001552 Neck DrainNeck Drain
-
370292001352 Drain Plug ass'yDrain Plug ass'y
-
380>380a292001636 Bailer Pick-up Ass'y. Includes 380 to 380aBailer Pick-up Ass'y. Includes 380 to 380a
-
380a293830080 Floating BallFloating Ball
-
390275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293650171 Tridon Gear ClampTridon Gear Clamp
-
500292001549 Hull ReinforcementHull Reinforcement
-
510292001550 Front End Piece ReinforcementFront End Piece Reinforcement
-
520292001551 Rear End Piece ReinforcementRear End Piece Reinforcement
-
530250000680 Hex. Flange Screw K50 X 25Hex. Flange Screw K50 X 25
-
540234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
620a292001439 Front FloatFront Float
-
620b292001467 LH FloatLH Float
-
620c292001468 RH FloatRH Float
-
620d292001469 Rear FloatRear Float
-
750a292001504 Rear Deck Extension Float. Model 3 UPRear Deck Extension Float. Model 3 UP
-
750b292001505 LH Extension Float. Model 3 UPLH Extension Float. Model 3 UP
-
750c292001506 RH Extension Float. Model 3 UPRH Extension Float. Model 3 UP
-
1080>1080c295100642 Reboarding Device Ass'y. Package Convenience. Includes 1080 to 1080cReboarding Device Ass'y. Package Convenience. Includes 1080 to 1080c
-
1080a207067060 Hex. Screw M6 X 70. Package ConvenienceHex. Screw M6 X 70. Package Convenience
-
1080b234061600 Flat Washer M6, Stainless. Package ConvenienceFlat Washer M6, Stainless. Package Convenience
-
1080c232561600 Hex. Elastic Stop Nut M6. Package ConvenienceHex. Elastic Stop Nut M6. Package Convenience
-
1090250000828 Screw Torx M6.81 X 30. Package ConvenienceScrew Torx M6.81 X 30. Package Convenience
-
1220278003483 Bilge Pump. Package TrixxBilge Pump. Package Trixx
-
1230269800473 Bilge Pump Support. Package TrixxBilge Pump Support. Package Trixx
-
1240293750008 Tie-Rap 350 mm. Package TrixxTie-Rap 350 mm. Package Trixx
-
1250211000023 Hex. Screw 10-14 X 7/8''. Package TrixxHex. Screw 10-14 X 7/8''. Package Trixx
-
1270291002952 Hose Bilgeflex. Package TrixxHose Bilgeflex. Package Trixx
-
1280293710162 Fitting. Package TrixxFitting. Package Trixx
-
1285292001486 Gasket. Package TrixxGasket. Package Trixx
-
1290293650172 Tridon Gear Clamp. Package TrixxTridon Gear Clamp. Package Trixx
