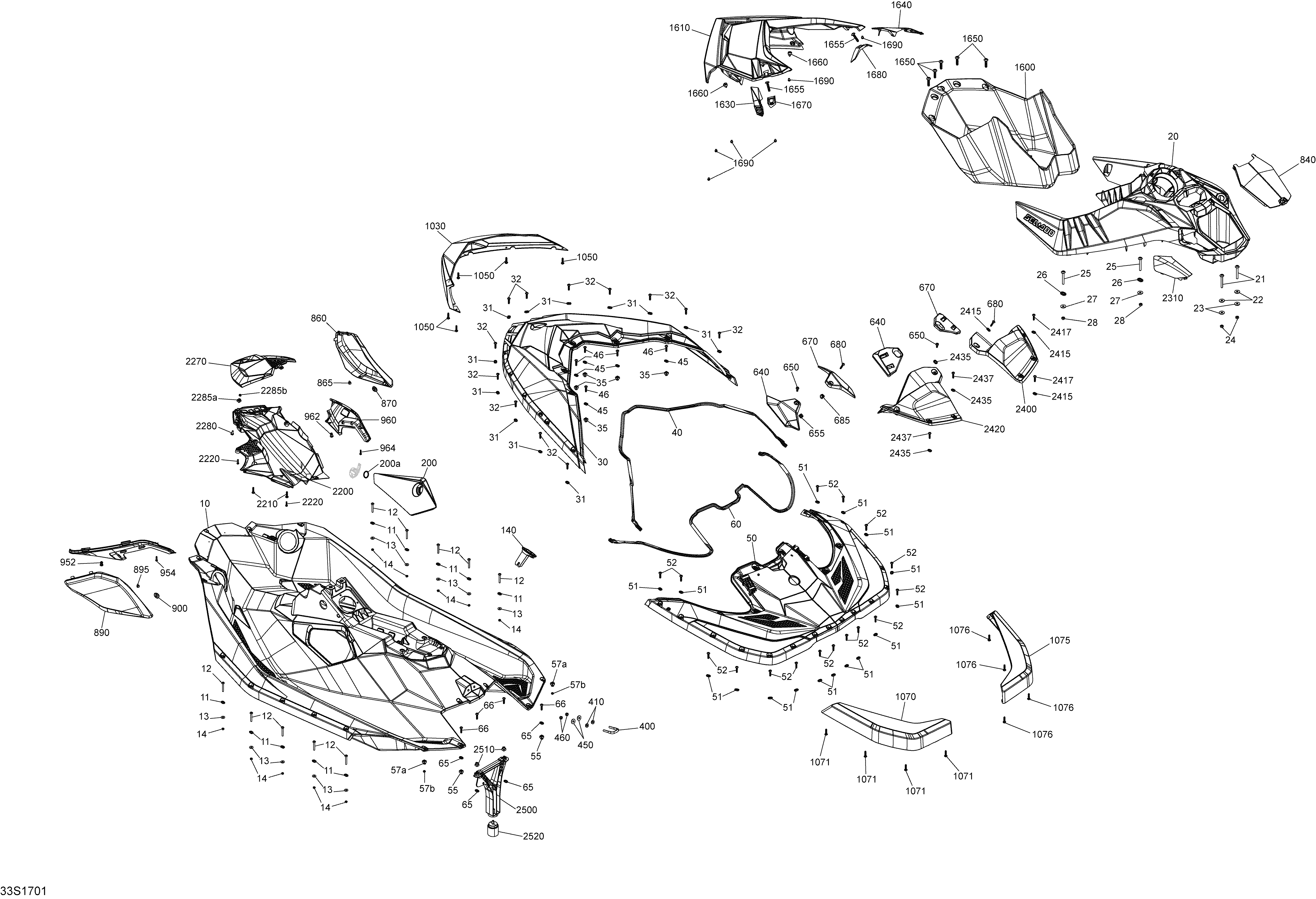

09- Body - All Models для BRP SPARK - 2017
-
№АртикулНазвание
-
10291004646 Center BodyCenter Body
-
10291004646 Center BodyCenter Body
-
11291003880 Oval WasherOval Washer
-
11291003880 Oval WasherOval Washer
-
12250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
12250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
20291004493 ConsoleConsole
-
20291004493 ConsoleConsole
-
21250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
21250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
22250200150 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
22250200150 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
24232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
25250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
25250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
26291003880 Oval WasherOval Washer
-
26291003880 Oval WasherOval Washer
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
28232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
30291004543 Front Deck Reef Blue. Package TrixxFront Deck Reef Blue. Package Trixx
-
30291004543 Front Deck Reef Blue. Package TrixxFront Deck Reef Blue. Package Trixx
-
30291004580 Front Deck Sunburst Yellow. Except Package TrixxFront Deck Sunburst Yellow. Except Package Trixx
-
30291004580 Front Deck Sunburst Yellow. Except Package TrixxFront Deck Sunburst Yellow. Except Package Trixx
-
30291004581 Front Deck Bright White. Except Package TrixxFront Deck Bright White. Except Package Trixx
-
30291004581 Front Deck Bright White. Except Package TrixxFront Deck Bright White. Except Package Trixx
-
30291004582 Front Deck Gulfstream Blue. Except Package TrixxFront Deck Gulfstream Blue. Except Package Trixx
-
30291004582 Front Deck Gulfstream Blue. Except Package TrixxFront Deck Gulfstream Blue. Except Package Trixx
-
30291004583 Front Deck Krypton Green. Except Package TrixxFront Deck Krypton Green. Except Package Trixx
-
30291004583 Front Deck Krypton Green. Except Package TrixxFront Deck Krypton Green. Except Package Trixx
-
30291004584 Front Deck Red. Except Package TrixxFront Deck Red. Except Package Trixx
-
30291004584 Front Deck Red. Except Package TrixxFront Deck Red. Except Package Trixx
-
31291003880 Oval WasherOval Washer
-
31291003880 Oval WasherOval Washer
-
32250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
32250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
35291003793 InsertInsert
-
35291003793 InsertInsert
-
40293250341 Seal JointSeal Joint
-
40293250341 Seal JointSeal Joint
-
45291003880 Oval WasherOval Washer
-
45291003880 Oval WasherOval Washer
-
46250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
46250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
50291004498 Rear Deck. Package TrixxRear Deck. Package Trixx
-
50291004498 Rear Deck. Package TrixxRear Deck. Package Trixx
-
50291004585 Rear Deck Sunburst Yellow. Except Package TrixxRear Deck Sunburst Yellow. Except Package Trixx
-
50291004585 Rear Deck Sunburst Yellow. Except Package TrixxRear Deck Sunburst Yellow. Except Package Trixx
-
50291004586 Rear Deck Bright White. Except Package TrixxRear Deck Bright White. Except Package Trixx
-
50291004586 Rear Deck Bright White. Except Package TrixxRear Deck Bright White. Except Package Trixx
-
50291004587 Rear Deck Gulfstream Blue. Except Package TrixxRear Deck Gulfstream Blue. Except Package Trixx
-
50291004587 Rear Deck Gulfstream Blue. Except Package TrixxRear Deck Gulfstream Blue. Except Package Trixx
-
50291004588 Rear Deck KryPTOn Green. Except Package TrixxRear Deck KryPTOn Green. Except Package Trixx
-
50291004588 Rear Deck KryPTOn Green. Except Package TrixxRear Deck KryPTOn Green. Except Package Trixx
-
50291004589 Rear Deck Red. Except Package TrixxRear Deck Red. Except Package Trixx
-
50291004589 Rear Deck Red. Except Package TrixxRear Deck Red. Except Package Trixx
-
51291003880 Oval WasherOval Washer
-
51291003880 Oval WasherOval Washer
-
52250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
52250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
55291003793 Insert. Except Package TrixxInsert. Except Package Trixx
-
55291003793 Insert. Except Package TrixxInsert. Except Package Trixx
-
55291003793 Insert. Package TrixxInsert. Package Trixx
-
55291003793 Insert. Package TrixxInsert. Package Trixx
-
57>57b269501166 Nut Housing Ass'y. Package Trixx. Includes 57 to 57bNut Housing Ass'y. Package Trixx. Includes 57 to 57b
-
57>57b269501166 Nut Housing Ass'y. Package Trixx. Includes 57 to 57bNut Housing Ass'y. Package Trixx. Includes 57 to 57b
-
57a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
57a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
57b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
57b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
59291003793 Insert. Package TrixxInsert. Package Trixx
-
59291003793 Insert. Package TrixxInsert. Package Trixx
-
60293250340 Seal JointSeal Joint
-
60293250340 Seal JointSeal Joint
-
65291003880 Oval WasherOval Washer
-
65291003880 Oval WasherOval Washer
-
66250000828 Screw Torx M6.81 X 30. Except Package TrixxScrew Torx M6.81 X 30. Except Package Trixx
-
66250000828 Screw Torx M6.81 X 30. Except Package TrixxScrew Torx M6.81 X 30. Except Package Trixx
-
66250000828 Screw Torx M6.81 X 30. Package TrixxScrew Torx M6.81 X 30. Package Trixx
-
66250000828 Screw Torx M6.81 X 30. Package TrixxScrew Torx M6.81 X 30. Package Trixx
-
140291003390 Rear Access CoverRear Access Cover
-
140291003390 Rear Access CoverRear Access Cover
-
200>200a291004155 Front Access Cover. Includes 200 to 200aFront Access Cover. Includes 200 to 200a
-
200>200a291004155 Front Access Cover. Includes 200 to 200aFront Access Cover. Includes 200 to 200a
-
200a293300121 O-RingO-Ring
-
200a293300121 O-RingO-Ring
-
400292000933 U-ClampU-Clamp
-
400292000933 U-ClampU-Clamp
-
410293050001 Flat WasherFlat Washer
-
410293050001 Flat WasherFlat Washer
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
640291003883 LH Rear Panel Trim. Except Package TrixxLH Rear Panel Trim. Except Package Trixx
-
640291003883 LH Rear Panel Trim. Except Package TrixxLH Rear Panel Trim. Except Package Trixx
-
640291004545 Rear Support LH. Package TrixxRear Support LH. Package Trixx
-
640291004545 Rear Support LH. Package TrixxRear Support LH. Package Trixx
-
650250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
650250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
655291003793 InsertInsert
-
655291003793 InsertInsert
-
670291003884 RH Rear Panel Trim. Except Package TrixxRH Rear Panel Trim. Except Package Trixx
-
670291003884 RH Rear Panel Trim. Except Package TrixxRH Rear Panel Trim. Except Package Trixx
-
670291004546 Rear Support RH. Package TrixxRear Support RH. Package Trixx
-
670291004546 Rear Support RH. Package TrixxRear Support RH. Package Trixx
-
680250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
680250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
685291003793 InsertInsert
-
685291003793 InsertInsert
-
840291003378 Glove Box CoverGlove Box Cover
-
840291003378 Glove Box CoverGlove Box Cover
-
860291004526 Knee Pads RH. Package TrixxKnee Pads RH. Package Trixx
-
860291004526 Knee Pads RH. Package TrixxKnee Pads RH. Package Trixx
-
860291004571 Knee Pads RH. Except Package TrixxKnee Pads RH. Except Package Trixx
-
860291004571 Knee Pads RH. Except Package TrixxKnee Pads RH. Except Package Trixx
-
865293830005 Rubber BumperRubber Bumper
-
865293830005 Rubber BumperRubber Bumper
-
870705000321 Oval WasherOval Washer
-
870705000321 Oval WasherOval Washer
-
890291004528 Knee Pads LH. Package TrixxKnee Pads LH. Package Trixx
-
890291004528 Knee Pads LH. Package TrixxKnee Pads LH. Package Trixx
-
890291004570 Knee Pads LH. Except Package TrixxKnee Pads LH. Except Package Trixx
