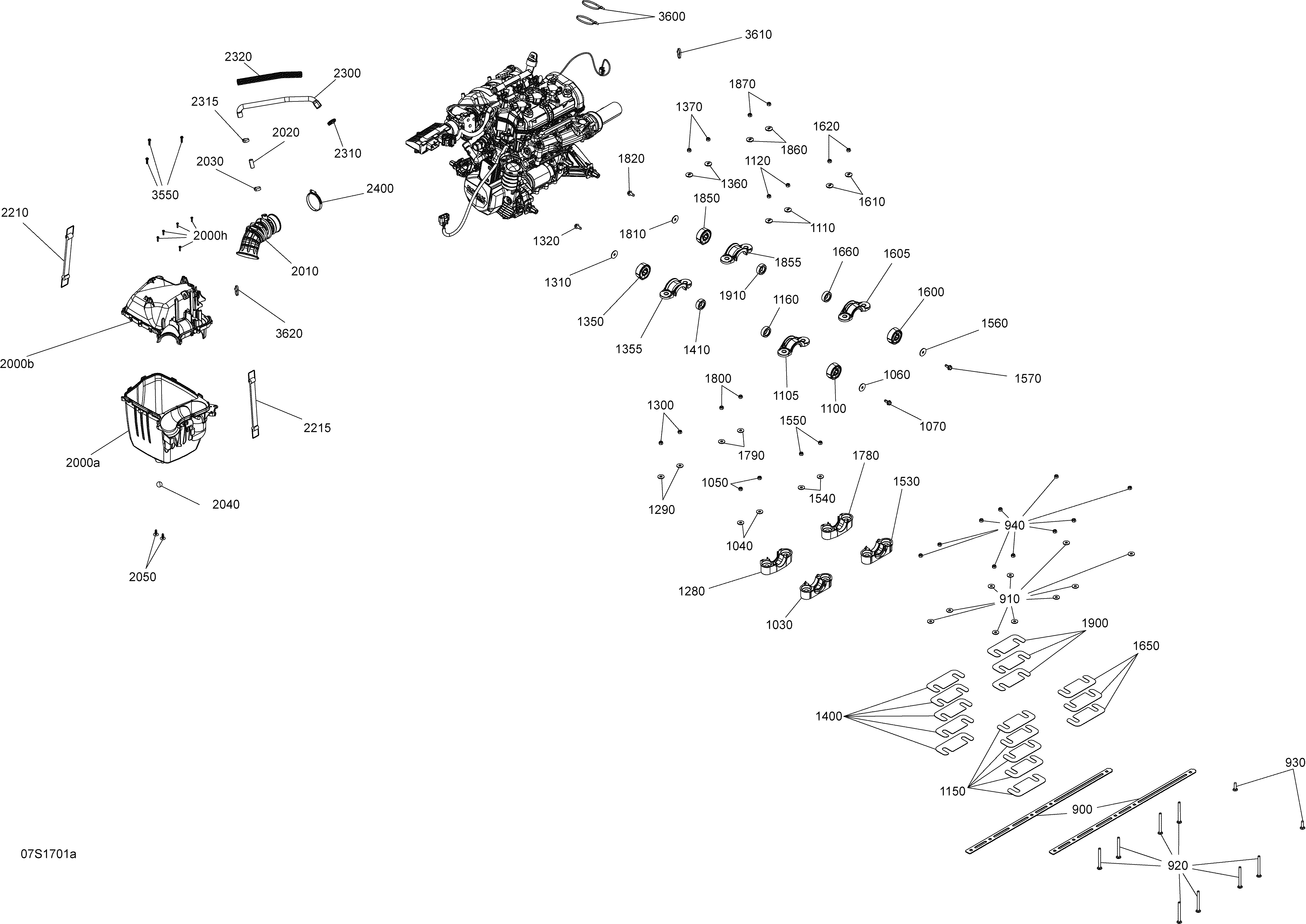

01- Engine - All Models для BRP SPARK - 2017
-
№АртикулНазвание
-
900270000862 Retaining PlateRetaining Plate
-
910234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
920207789060 Carriage Bolt M8 X 90Carriage Bolt M8 X 90
-
930207783060 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
940232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1030270000978 Mount BaseMount Base
-
1040234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1050232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1060250200130 Flat Washer 8 mmFlat Washer 8 mm
-
1070250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
1100270000852 Rubber MountRubber Mount
-
1105270000859 Mount ClampMount Clamp
-
1110250200137 Conical WasherConical Washer
-
1120232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1150270000865 Shim 1.3 mmShim 1.3 mm
-
1160270000863 Rubber StopperRubber Stopper
-
1280270000978 Mount BaseMount Base
-
1290234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1300232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1310250200130 Flat Washer 8 mmFlat Washer 8 mm
-
1320250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
1350270000852 Rubber MountRubber Mount
-
1355270000859 Mount ClampMount Clamp
-
1360250200137 Conical WasherConical Washer
-
1370232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1400270000865 Shim 1.3 mmShim 1.3 mm
-
1410270000863 Rubber StopperRubber Stopper
-
1530270000978 Mount BaseMount Base
-
1540234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1550232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1560250200130 Flat Washer 8 mmFlat Washer 8 mm
-
1570250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
1600270000852 Rubber MountRubber Mount
-
1605270000859 Mount ClampMount Clamp
-
1610250200137 Conical WasherConical Washer
-
1620232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1650270000865 Shim 1.3 mmShim 1.3 mm
-
1660270000863 Rubber StopperRubber Stopper
-
1780270000978 Mount BaseMount Base
-
1790234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1800232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1810250200130 Flat Washer 8 mmFlat Washer 8 mm
-
1820250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
1850270000852 Rubber MountRubber Mount
-
1855270000859 Mount ClampMount Clamp
-
1860250200137 Conical WasherConical Washer
-
1870232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1900270000865 Shim 1.3 mmShim 1.3 mm
-
1910270000863 Rubber StopperRubber Stopper
-
2000a273000385 Airbox BaseAirbox Base
-
2000b273000386 Airbox CoverAirbox Cover
-
2000h250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2010273000318 Connector HoseConnector Hose
-
2020270001007 FittingFitting
-
2030293650011 Oetiker ClampOetiker Clamp
-
2040293830080 Floating BallFloating Ball
-
2050293730011 Black DartBlack Dart
-
2210515176044 Battery StrapBattery Strap
-
2215293850087 Fuel Tank StrapFuel Tank Strap
-
2300270000947 Formed HoseFormed Hose
-
2310293650172 Tridon Gear ClampTridon Gear Clamp
-
2315293650011 Oetiker ClampOetiker Clamp
-
2320415080000 Tubing 16 mmTubing 16 mm
-
2400293650079 Norma ClampNorma Clamp
-
3550241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
3600293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3610293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3620414115200 Tie-Rap 180 mmTie-Rap 180 mm
