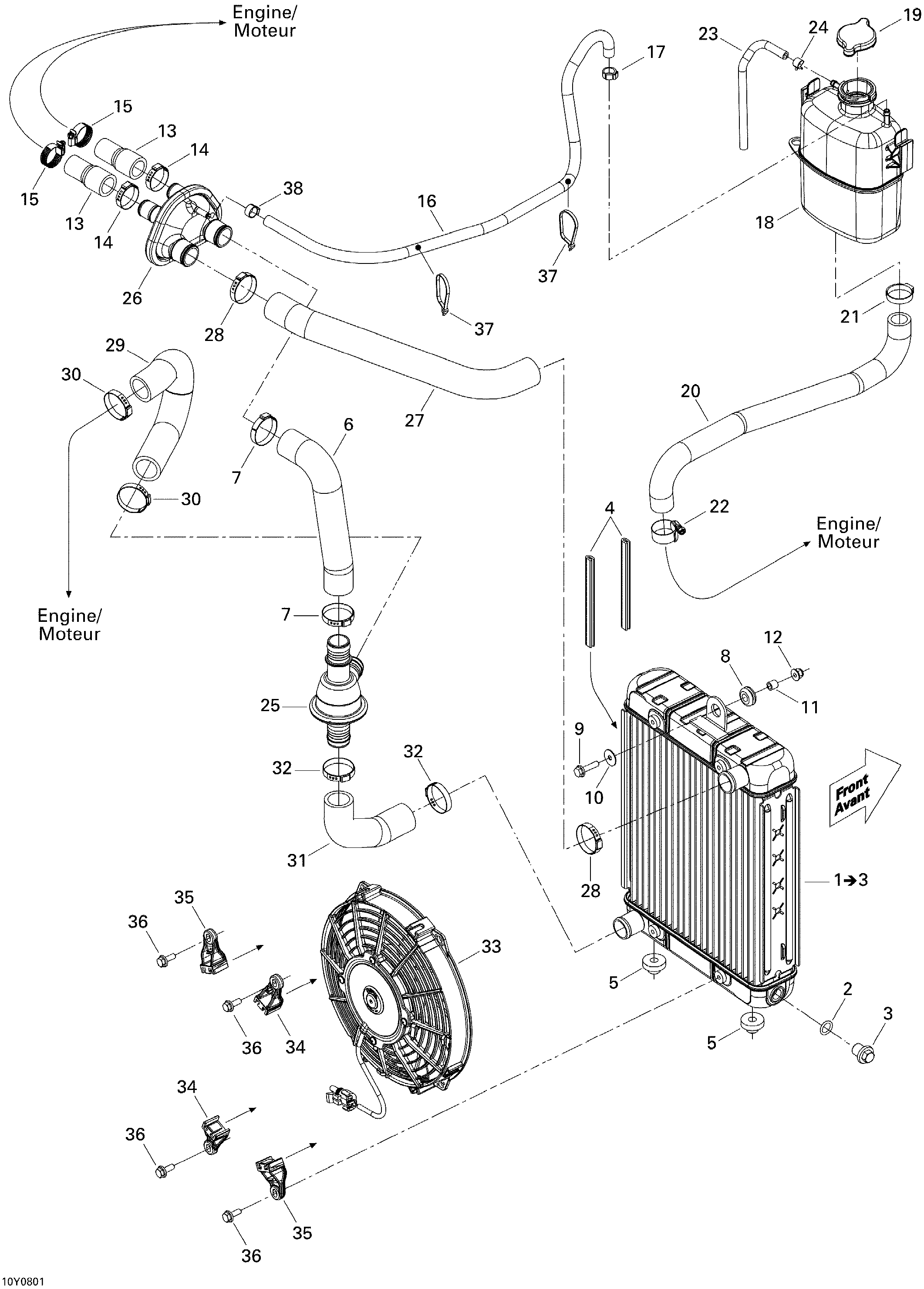

01- Cooling System для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1709200128 Radiator. Includes 1 to 3Radiator. Includes 1 to 3
-
2709200217 O-RingO-Ring
-
3709200218 Drain PlugDrain Plug
-
4271001530 TrimTrim
-
5570135100 GrommetGrommet
-
6709200215 HoseHose
-
7509000045 Oetiker Gear ClampOetiker Gear Clamp
-
8293720053 GrommetGrommet
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10224060201 Flat WasherFlat Washer
-
11293900045 BushingBushing
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13709200144 HoseHose
-
14293650099 Oetiker Gear ClampOetiker Gear Clamp
-
15293650173 Tridon Gear ClampTridon Gear Clamp
-
16709200186 HoseHose
-
17293650042 Oetiker ClampOetiker Clamp
-
18709200163 Coolant TankCoolant Tank
-
19509000187 Pressure CapPressure Cap
-
20709200139 HoseHose
-
21293650141 Oetiker Gear ClampOetiker Gear Clamp
-
22293650051 Tridon Gear ClampTridon Gear Clamp
-
23415080200 Polyurethane HosePolyurethane Hose
-
24414554800 Spring ClampSpring Clamp
-
25709200183 Thermostat HousingThermostat Housing
-
26709200151 ConnectorConnector
-
27709200133 HoseHose
-
28509000045 Oetiker Gear ClampOetiker Gear Clamp
-
29709200184 HoseHose
-
30509000045 Oetiker Gear ClampOetiker Gear Clamp
-
31709200185 HoseHose
-
32509000045 Oetiker Gear ClampOetiker Gear Clamp
-
33709200124 FanFan
-
34709200125 Fan SupportFan Support
-
35709200126 Fan SupportFan Support
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
37293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
38293650025 Oetiker ClampOetiker Clamp
