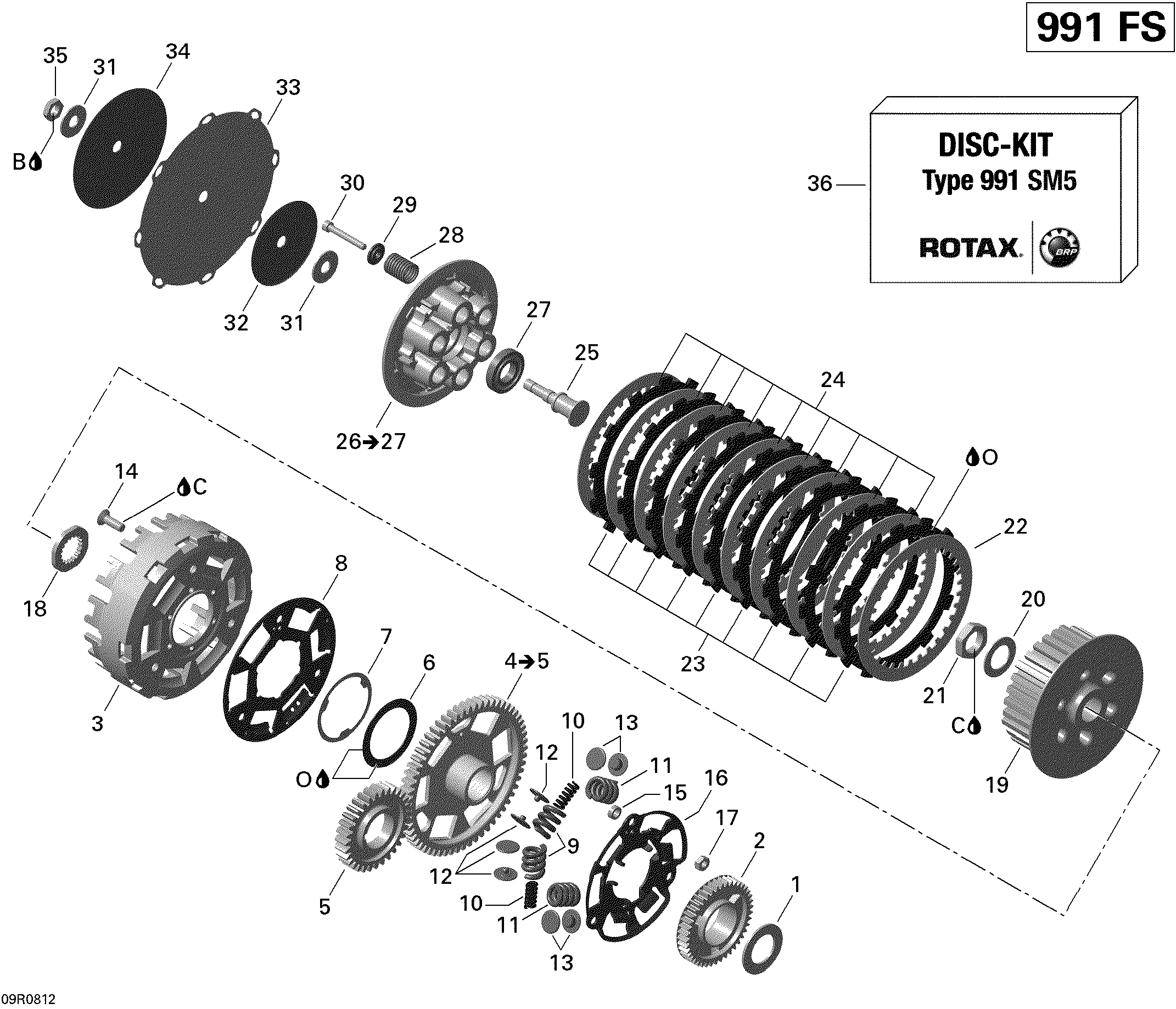

05- Clutch для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1420627260 Thrust WasherThrust Washer
-
2420634476 Oil Gear Pump, 42 TeethOil Gear Pump, 42 Teeth
-
3420259535 Clutch DrumClutch Drum
-
4420295783 Primary Drive Gear Ass'y. Includes 4 to 5Primary Drive Gear Ass'y. Includes 4 to 5
-
6420239390 Disc SpringDisc Spring
-
7420627910 Thrust WasherThrust Washer
-
8420259588 Inner Support PlateInner Support Plate
-
9420238135 Compression SpringCompression Spring
-
10420238140 Internal Compression SpringInternal Compression Spring
-
11420238130 Compression SpringCompression Spring
-
12420247972 Spring RetainerSpring Retainer
-
13420247974 Spring RetainerSpring Retainer
-
14420941835 Flat Head Screw, M8 X 25Flat Head Screw, M8 X 25
-
15420247614 Spacer SleeveSpacer Sleeve
-
16420259583 Outer Support PlateOuter Support Plate
-
17232081414 Hex. Nut M8Hex. Nut M8
-
18420627220 Thrust WasherThrust Washer
-
19420259520 Hub ClutchHub Clutch
-
20420245830 Spring WasherSpring Washer
-
21420242950 Hex. Nut M24Hex. Nut M24
-
22420259265 Plate, 1.5 mm. See Item 36, Disc KitPlate, 1.5 mm. See Item 36, Disc Kit
-
25420659791 PinPin
-
26420259519 Pressure Plate Ass'y. Includes 26 to 27Pressure Plate Ass'y. Includes 26 to 27
-
27420632135 Ball BearingBall Bearing
-
28420238721 Clutch Spring. See Item 36, Disc KitClutch Spring. See Item 36, Disc Kit
-
29420627530 Step Washer. See Item 36, Disc KitStep Washer. See Item 36, Disc Kit
-
30420241825 Socket Head Screw M6 X 45Socket Head Screw M6 X 45
-
31420227180 Thrust WasherThrust Washer
-
32420627230 Disc SupportDisc Support
-
33420260890 DiaphragmDiaphragm
-
34420627281 Disc PlateDisc Plate
-
35420642055 Hexagonal Nut M12 X 1Hexagonal Nut M12 X 1
-
36420281930 Disc Kit, Type 991 SM5Disc Kit, Type 991 SM5
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
