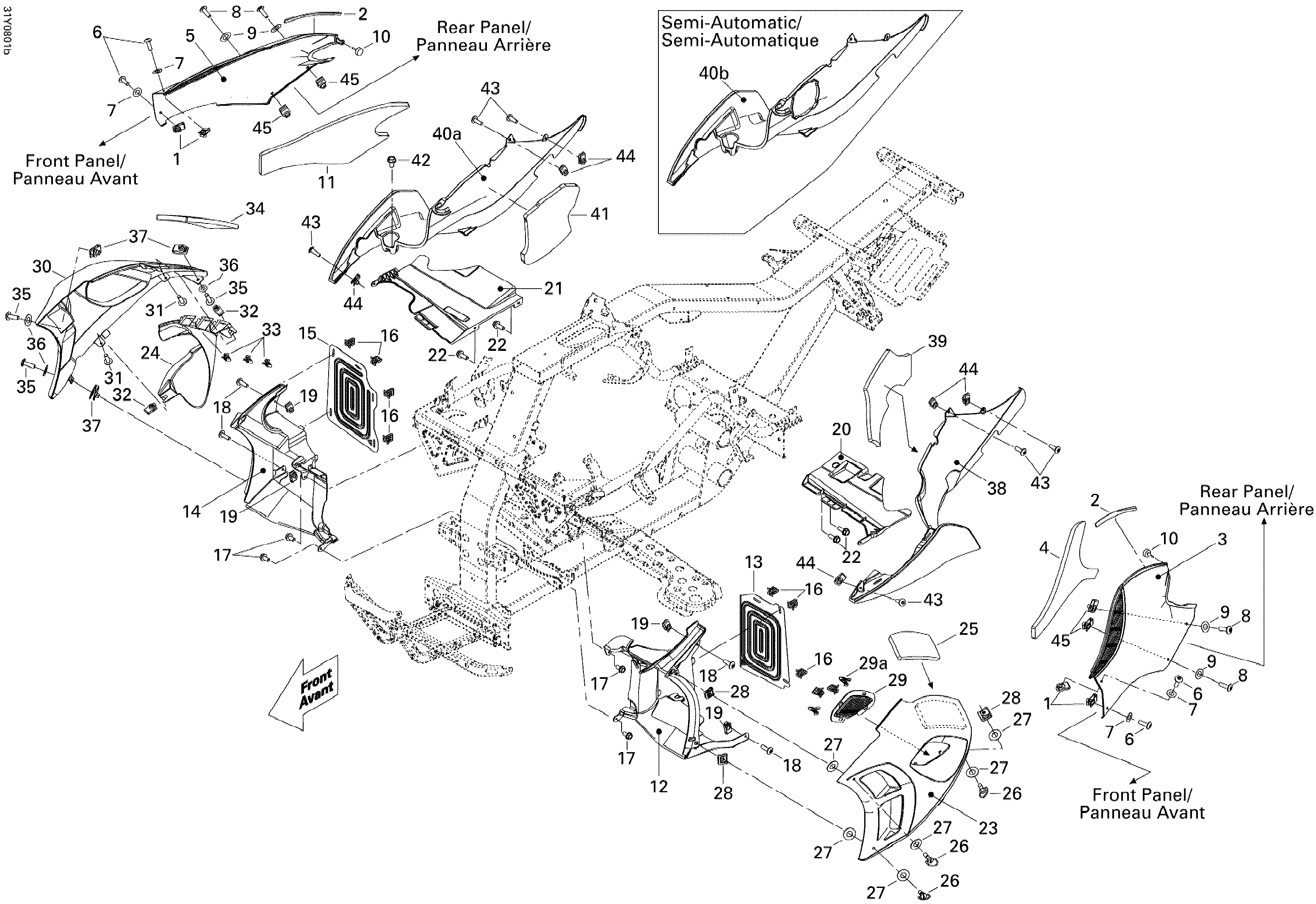

09- Body And Accessories Side FS для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2293250087 GasketGasket
-
3705002601 LH Upper Side PanelLH Upper Side Panel
-
4518325517 LH Upper Side Panel FoamLH Upper Side Panel Foam
-
5705002602 RH Upper Side PanelRH Upper Side Panel
-
6250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7705003207 Plastic WasherPlastic Washer
-
8250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9705003207 Plastic WasherPlastic Washer
-
10708000125 Rubber StopperRubber Stopper
-
11518325518 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
12705001485 LH Radiator Hub CapLH Radiator Hub Cap
-
13705002516 LH Radiator GrillLH Radiator Grill
-
14705001486 RH Radiator Hub CapRH Radiator Hub Cap
-
15705002518 RH Radiator GrillRH Radiator Grill
-
16517302785 ClipClip
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20705002331 LH Deflector PanelLH Deflector Panel
-
21705002332 RH Deflector PanelRH Deflector Panel
-
22210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
23705002565 LH Side Panel, Full Moon. Full MoonLH Side Panel, Full Moon. Full Moon
-
23705002566 LH Side Panel, Yellow. YellowLH Side Panel, Yellow. Yellow
-
23705003191 LH Side Panel, Red. RedLH Side Panel, Red. Red
-
24705002831 Heat DeflectorHeat Deflector
-
25518324749 LH Side Panel FoamLH Side Panel Foam
-
26705002649 Quarter Turn ScrewQuarter Turn Screw
-
27705002650 WasherWasher
-
28705002651 Quarter Turn NutQuarter Turn Nut
-
29705002369 LH Lateral GrillLH Lateral Grill
-
29a517302785 ClipClip
-
30705002568 RH Side Panel, Full Moon. Full MoonRH Side Panel, Full Moon. Full Moon
-
30705002569 RH Side Panel, Yellow. YellowRH Side Panel, Yellow. Yellow
-
30705003192 RH Side Panel, Red. RedRH Side Panel, Red. Red
-
31250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
32250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
33517302785 ClipClip
-
34518324750 RH Side Panel FoamRH Side Panel Foam
-
35250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
36705003207 Plastic WasherPlastic Washer
-
37250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
38705001612 LH Rocker PanelLH Rocker Panel
-
39518324753 LH Rocker Panel FoamLH Rocker Panel Foam
-
40a705001613 RH Rocker Panel. 5 SpeedRH Rocker Panel. 5 Speed
-
41518324754 RH Rocker Panel FoamRH Rocker Panel Foam
-
42210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
43250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
44250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
45250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
