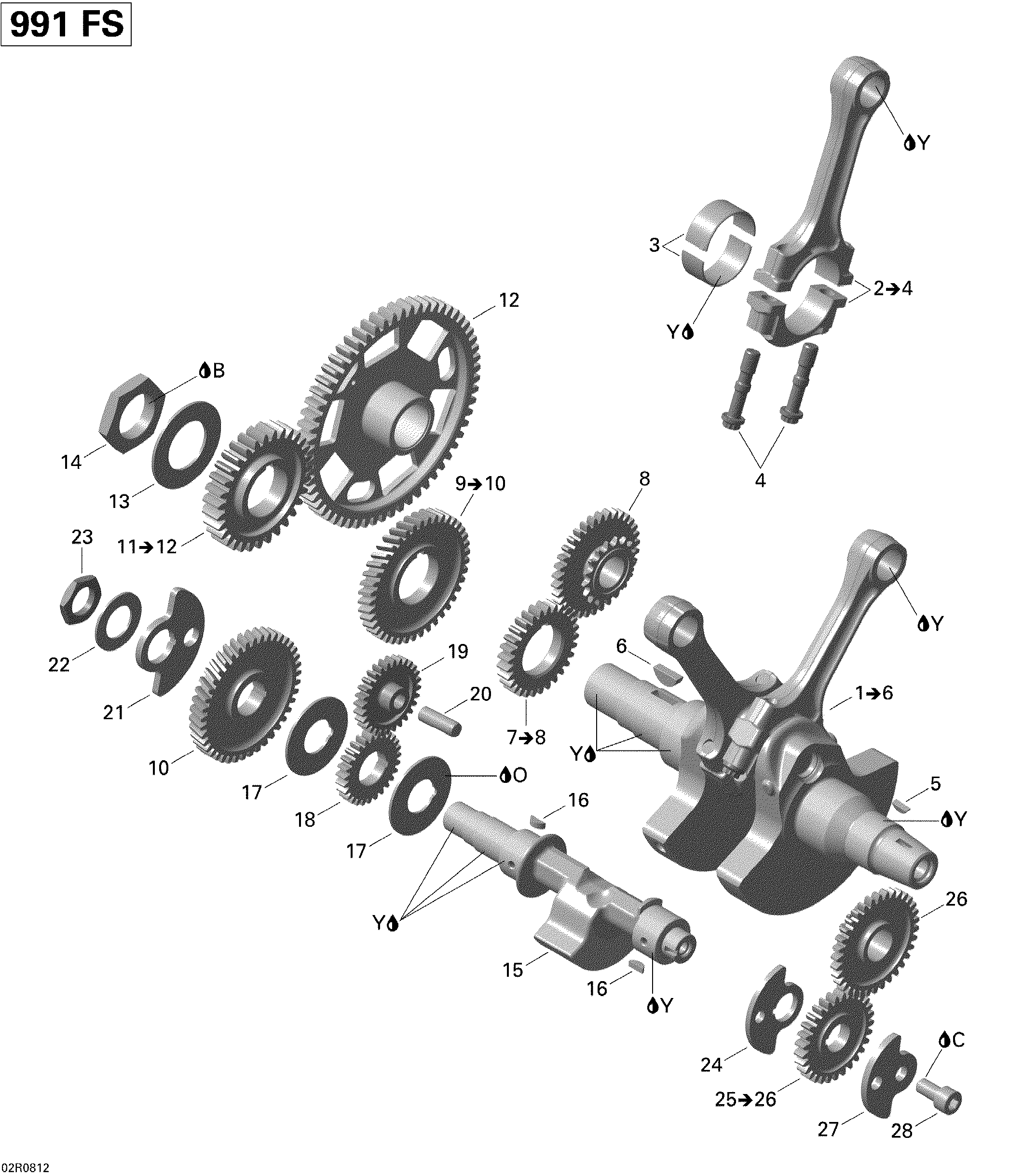

01- Crankshaft для BRP Spyder GS 990 5-Speed - 2008

№

Артикул

Название
1

420684790 Crankshaft Ass'y. Includes 1 to 6

Crankshaft Ass'y. Includes 1 to 6

0 ₽
2

420217346 Connecting Rod Ass'y. Includes 2 to 4

Connecting Rod Ass'y. Includes 2 to 4

32 550 ₽
3

420233721 Plain Bearing, Red

Plain Bearing, Red

2 280 ₽
3

420233722 Plain Bearing, Blue

Plain Bearing, Blue

1 950 ₽
3

420233723 Plain Bearing, Yellow

Plain Bearing, Yellow

1 950 ₽
4

420640400 Bolt

Bolt

2 040 ₽
5

420246570 Woodruff Key 4 X 5

Woodruff Key 4 X 5

1 200 ₽
6

420946015 Woodruff Key 6 X 9

Woodruff Key 6 X 9

1 130 ₽
7

420295760 Camshaft Drive Gear Ass'y. Includes 7 to 8

Camshaft Drive Gear Ass'y. Includes 7 to 8

10 860 ₽
9

420295770 Gear Balance Ass'y. Includes 9 to 10

Gear Balance Ass'y. Includes 9 to 10

11 190 ₽
11

420295783 Primary Drive Gear Ass'y. Includes 11 to 12

Primary Drive Gear Ass'y. Includes 11 to 12

0 ₽
13

420245840 Spring Washer

Spring Washer

1 320 ₽
14

420242940 Nut

Nut

1 510 ₽
15

420220374 Bottom Balancer

Bottom Balancer

21 560 ₽
16

420246570 Woodruff Key 4 X 5

Woodruff Key 4 X 5

1 200 ₽
17

420627200 Thrust Washer

Thrust Washer

900 ₽
18

420634611 Water Pump Gear

Water Pump Gear

3 010 ₽
19

420634500 Intermediate Gear Water Pump

Intermediate Gear Water Pump

12 080 ₽
20

420929930 Pin, M6 X 50

Pin, M6 X 50

900 ₽
21

420219350 Mass Balancing

Mass Balancing

900 ₽
22

420245860 Spring Washer

Spring Washer

680 ₽
23

420242874 Nut

Nut

1 410 ₽
24

420219360 Mass Balancing

Mass Balancing

900 ₽
25

420295765 Distribution Drive Ass'y. Includes 25 to 26

Distribution Drive Ass'y. Includes 25 to 26

10 500 ₽
27

420219365 Mass Balancing

Mass Balancing

900 ₽
28

420440260 Allen Screw, M10 X 20

Allen Screw, M10 X 20

420 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
C

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
Y

420899271 Petamo Grease, GHY133N, 400 G

Petamo Grease, GHY133N, 400 G

8 190 ₽
