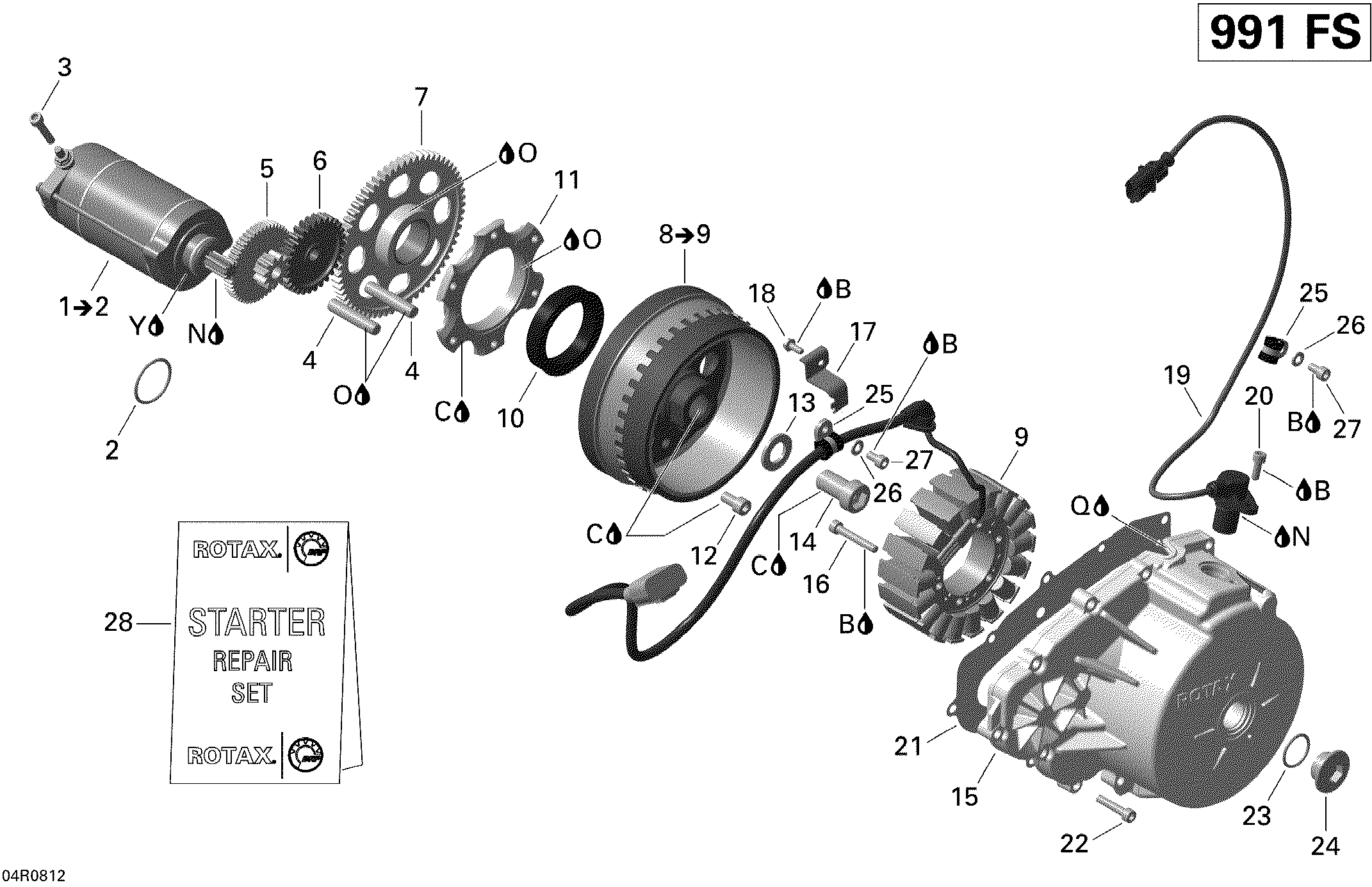

03- Magneto And Electric Starter для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1420294356 Electric Starter Ass'y. Includes 1 to 2Electric Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420840882 Allen Screw M6 X 30Allen Screw M6 X 30
-
4420229301 Location PinLocation Pin
-
5420634740 Double GearDouble Gear
-
6420634601 Gear, 30 TeethGear, 30 Teeth
-
7420634595 Gear, 64 TeethGear, 64 Teeth
-
8420685295 Magneto Ass'y. Includes 8 to 9Magneto Ass'y. Includes 8 to 9
-
9420685335 Stator PlateStator Plate
-
10420659110 Sprag ClutchSprag Clutch
-
11420659124 Clutch Sprag HousingClutch Sprag Housing
-
12420641590 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
13420627270 ShimShim
-
14420241540 Socket Head Screw M16 X 30Socket Head Screw M16 X 30
-
15420611310 Ignition CoverIgnition Cover
-
16420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
17420251165 Inner Cable CoverInner Cable Cover
-
18420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
-
19420966570 Crank Position Trigger Ass'yCrank Position Trigger Ass'y
-
20420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
21420650341 GasketGasket
-
22205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
23420430782 O-RingO-Ring
-
24420241630 Screw PlugScrew Plug
-
25414176000 Open ClampOpen Clamp
-
26420827961 Flat WasherFlat Washer
-
27420840371 Socket Head Screw M6 X 11.5Socket Head Screw M6 X 11.5
-
28420294354 Starter Brush KitStarter Brush Kit
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
N413707000 Dow Corning 111, 150 GDow Corning 111, 150 G
-
Q296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
Y420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
