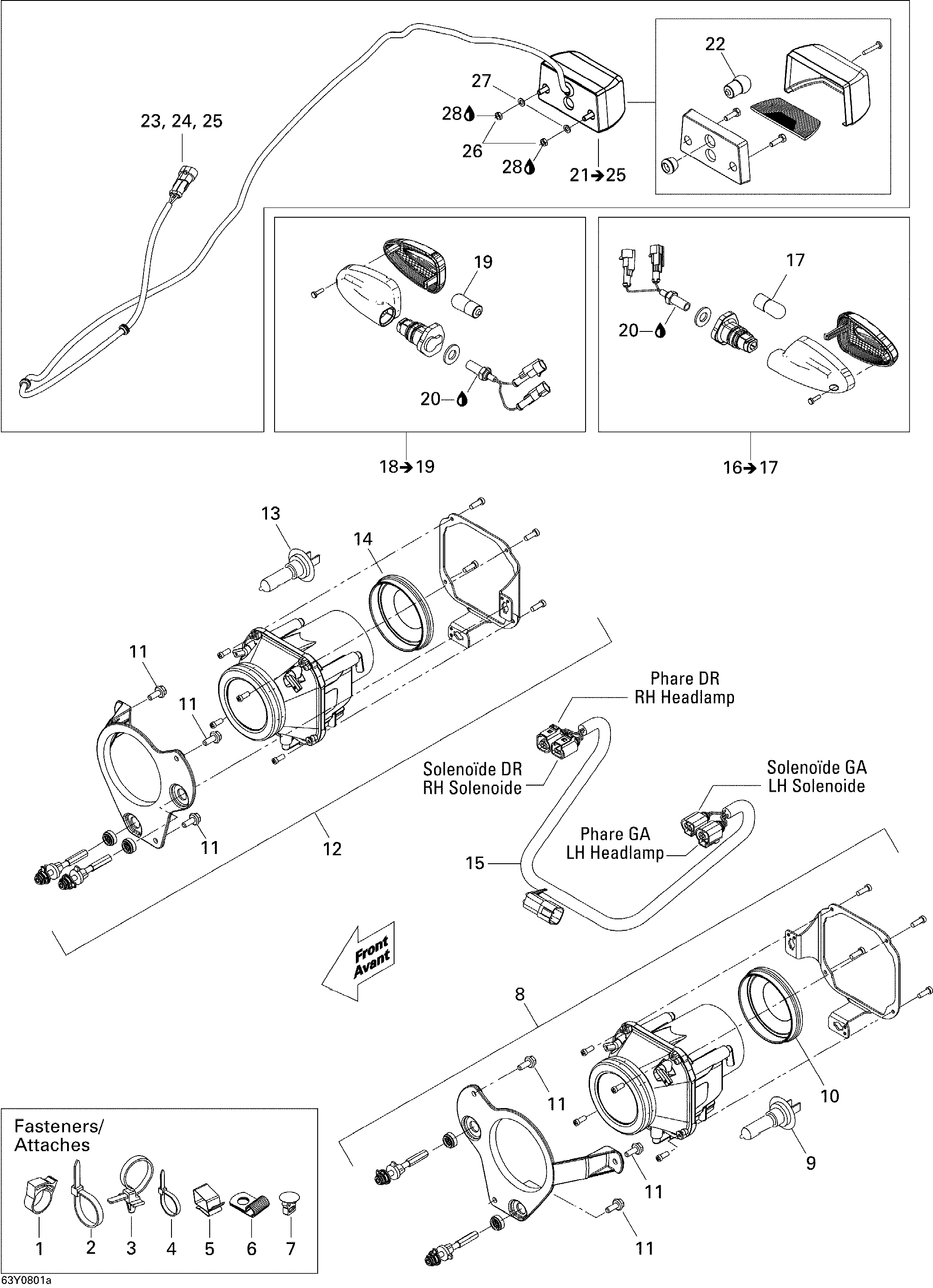

10- Lighting System для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8710001039 Bi-Halogene BeamBi-Halogene Beam
-
9219400069 LightLight
-
10219400070 CapCap
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
12710001112 Bi-Halogene BeamBi-Halogene Beam
-
13219400069 LightLight
-
14219400070 CapCap
-
15710000792 Beam Harness Ass'yBeam Harness Ass'y
-
16710001290 LH Rear Turn Signal Ass'yLH Rear Turn Signal Ass'y
-
17219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
18710001337 RH Rear Turn Signal Ass'yRH Rear Turn Signal Ass'y
-
19219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21710001291 License Light Ass'yLicense Light Ass'y
-
22415129261 BulbBulb
-
23278001013 Wire SealWire Seal
-
24409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
25409012900 Male TerminalMale Terminal
-
26232051600 Hex. Nut M5Hex. Nut M5
-
27234051600 Flat Washer M5Flat Washer M5
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
