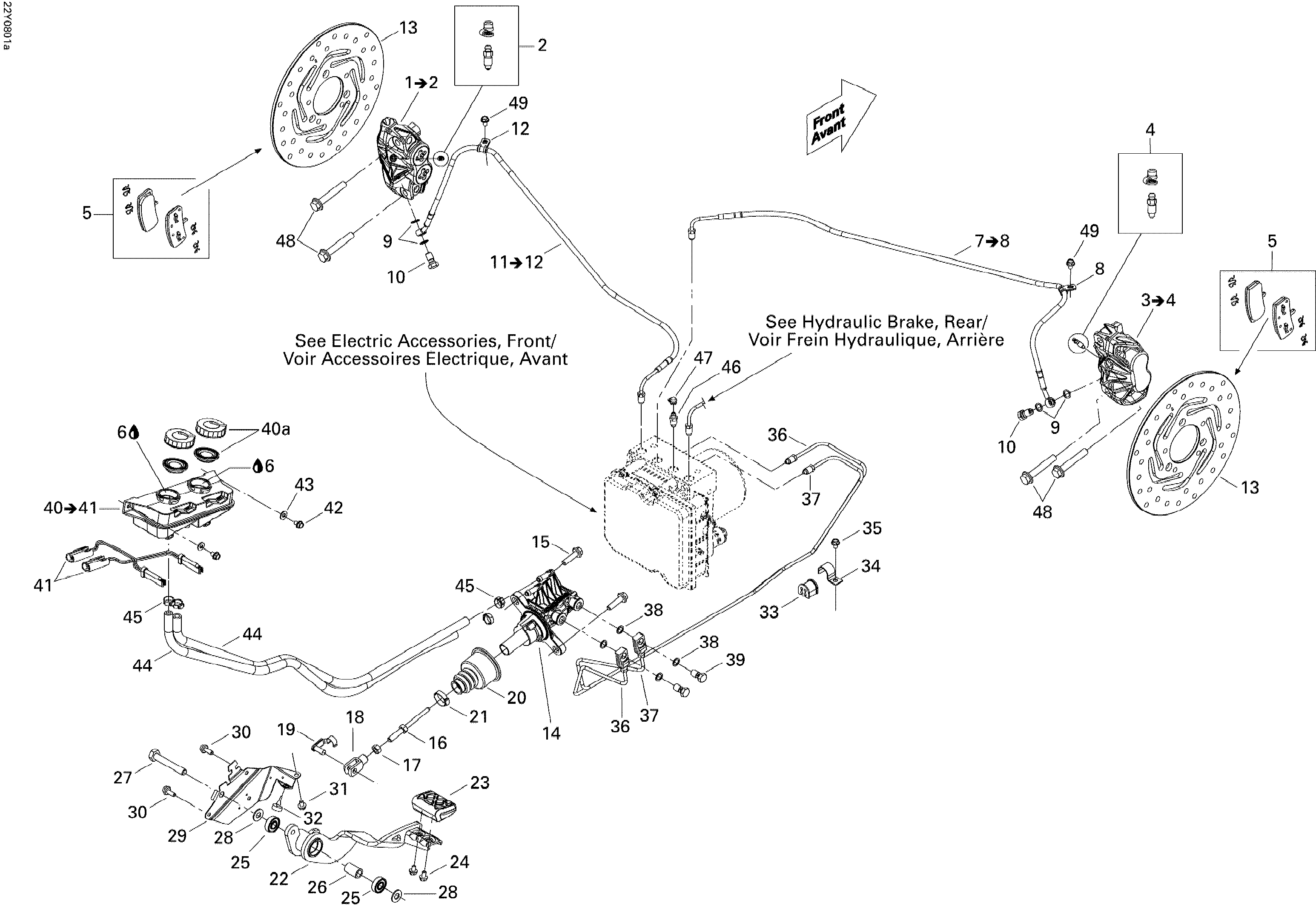

06- Hydraulic Brake, Front для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1219800125 LH Front Caliper Ass'y. Includes 1 to 2LH Front Caliper Ass'y. Includes 1 to 2
-
2219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
3219800126 RH Front Caliper Ass'y. Includes 3 to 4RH Front Caliper Ass'y. Includes 3 to 4
-
4219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
5219800071 Pad KitPad Kit
-
6293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
7705600442 RH Front Hose. Includes 7 to 8RH Front Hose. Includes 7 to 8
-
8705600459 ClampClamp
-
9705600310 Copper WasherCopper Washer
-
10414920500 Banjo BoltBanjo Bolt
-
11705600574 LH Front Hose. Includes 11 to 12LH Front Hose. Includes 11 to 12
-
12705600459 ClampClamp
-
13705600435 Front Brake DiscFront Brake Disc
-
14705600434 Tandem Cylinder MasterTandem Cylinder Master
-
15207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
16705600468 Piston RodPiston Rod
-
17232081414 Hex. Nut M8Hex. Nut M8
-
18705600100 YokeYoke
-
19250400007 PinPin
-
20705600471 BellowBellow
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22705600633 Brake PedalBrake Pedal
-
23705002706 Rubber PadRubber Pad
-
24210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
25705600458 BearingBearing
-
26705600541 BushingBushing
-
27207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
28234001410 Flat Washer 10 mmFlat Washer 10 mm
-
29705600606 Tab LockTab Lock
-
30207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
31210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
32708000125 Rubber StopperRubber Stopper
-
33705600450 Tube SupportTube Support
-
34705600507 ClipClip
-
35210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
36705600447 Rigid TubeRigid Tube
-
37705600448 Rigid TubeRigid Tube
-
38705600310 Copper WasherCopper Washer
-
39414920500 Banjo BoltBanjo Bolt
-
40705600549 Brake Fluid Reservoir Ass'y. Includes 40 to 41Brake Fluid Reservoir Ass'y. Includes 40 to 41
-
40a219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
41515176508 Oil Level SensorOil Level Sensor
-
42210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
43224061121 Flat WasherFlat Washer
-
44276000084 Hose 8 mmHose 8 mm
-
45293650047 Oetiker ClampOetiker Clamp
-
46705600502 Bleeder ScrewBleeder Screw
-
47705600554 Bleeder CapBleeder Cap
-
48207506034 Hex. Flanged Screw M10 X 60, Scotch GripHex. Flanged Screw M10 X 60, Scotch Grip
-
49210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
