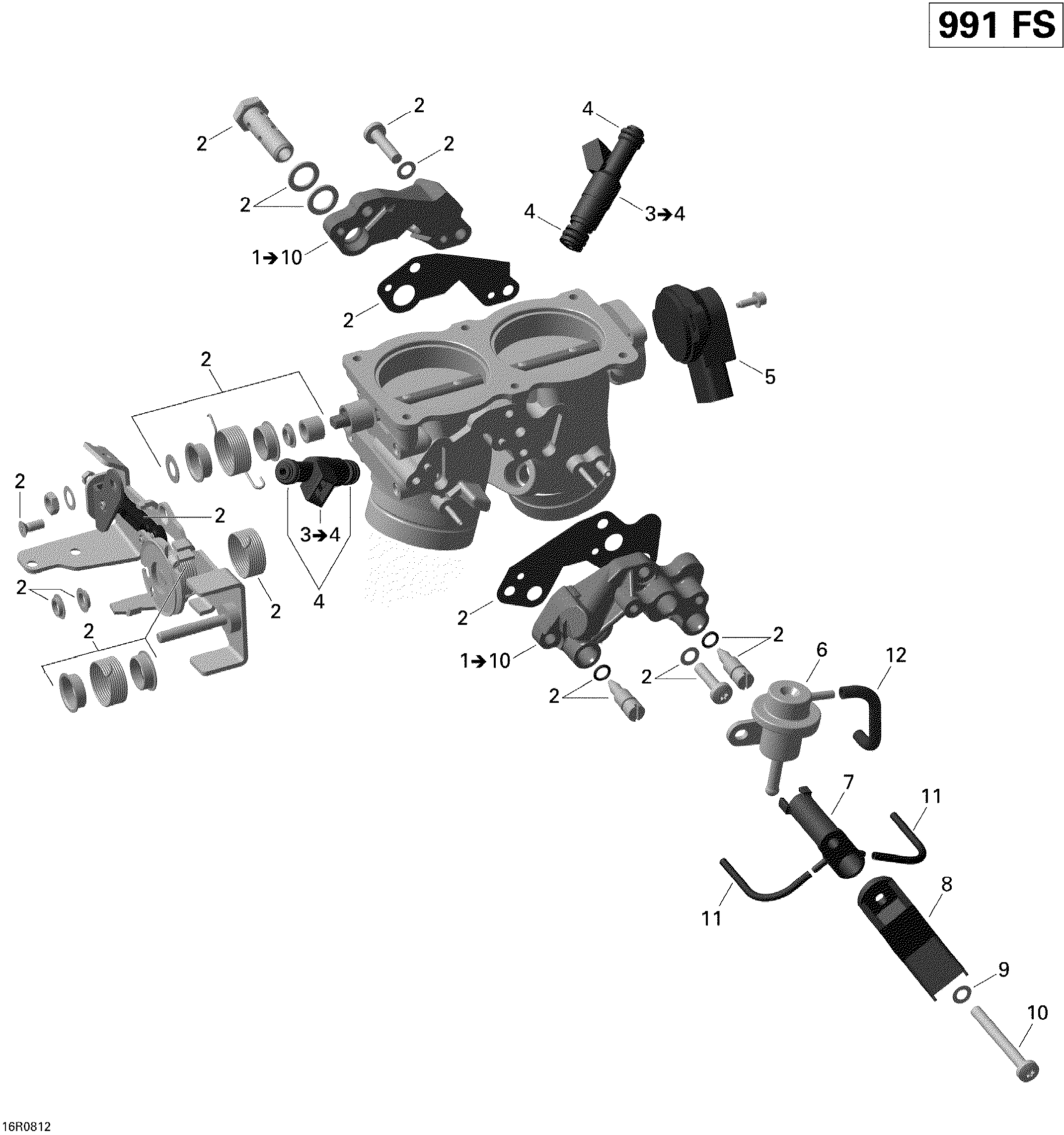

02- Throttle Body для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1420296972 Throttle Body Ass'y. Includes 1 to 10Throttle Body Ass'y. Includes 1 to 10
-
2420281241 Venturi Repair Device KitVenturi Repair Device Kit
-
3420874487 Fuel Injector Ass'y. Includes 3 to 4Fuel Injector Ass'y. Includes 3 to 4
-
4420631220 O-RingO-Ring
-
5420274030 PotentiometerPotentiometer
-
6420274020 Pressure RegulatorPressure Regulator
-
7420460290 AdapterAdapter
-
8420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
9420845020 Spring WasherSpring Washer
-
10420240371 Allen Screw M6 X 60Allen Screw M6 X 60
-
11420960112 CableCable
-
12420860662 HoseHose
