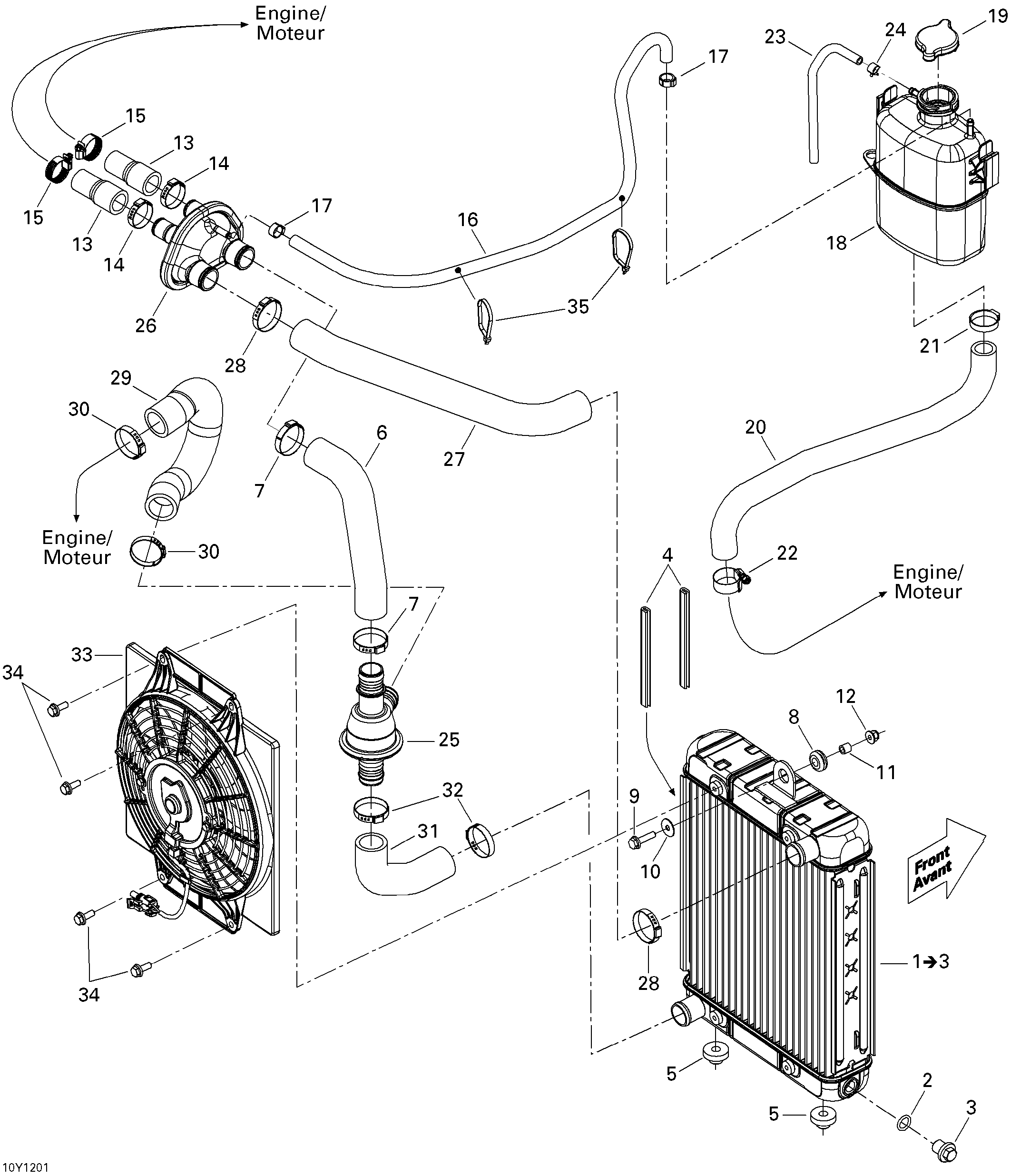

01- Cooling System для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1709200128 RadiatorRadiator
-
2709200217 O-RingO-Ring
-
3709200218 Drain PlugDrain Plug
-
4271001530 TrimTrim
-
5709200285 GrommetGrommet
-
6709200215 HoseHose
-
7509000045 Oetiker Gear ClampOetiker Gear Clamp
-
8293720053 GrommetGrommet
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10224060201 Flat WasherFlat Washer
-
11293900105 BushingBushing
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13709200144 HoseHose
-
14293650099 Oetiker Gear ClampOetiker Gear Clamp
-
15293650173 Tridon Gear ClampTridon Gear Clamp
-
16709200415 HoseHose
-
17a293650025 Oetiker Gear ClampOetiker Gear Clamp
-
17b293650025 Oetiker Gear ClampOetiker Gear Clamp
-
18709200412 Coolant TankCoolant Tank
-
19509000187 Pressure CapPressure Cap
-
20709200139 HoseHose
-
21293650141 Oetiker Gear ClampOetiker Gear Clamp
-
22293650051 Tridon Gear ClampTridon Gear Clamp
-
23415080200 Hose, PolyurethaneHose, Polyurethane
-
24414554800 Spring ClampSpring Clamp
-
25709200384 Thermostat HousingThermostat Housing
-
26709200151 ConnectorConnector
-
27709200272 Coolant Formed HoseCoolant Formed Hose
-
28509000045 Oetiker Gear ClampOetiker Gear Clamp
-
29709200259 Formed HoseFormed Hose
-
30509000045 Oetiker Gear ClampOetiker Gear Clamp
-
31709200185 HoseHose
-
32509000045 Oetiker Gear ClampOetiker Gear Clamp
-
33509000692 Fan Ass'yFan Ass'y
-
34207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
