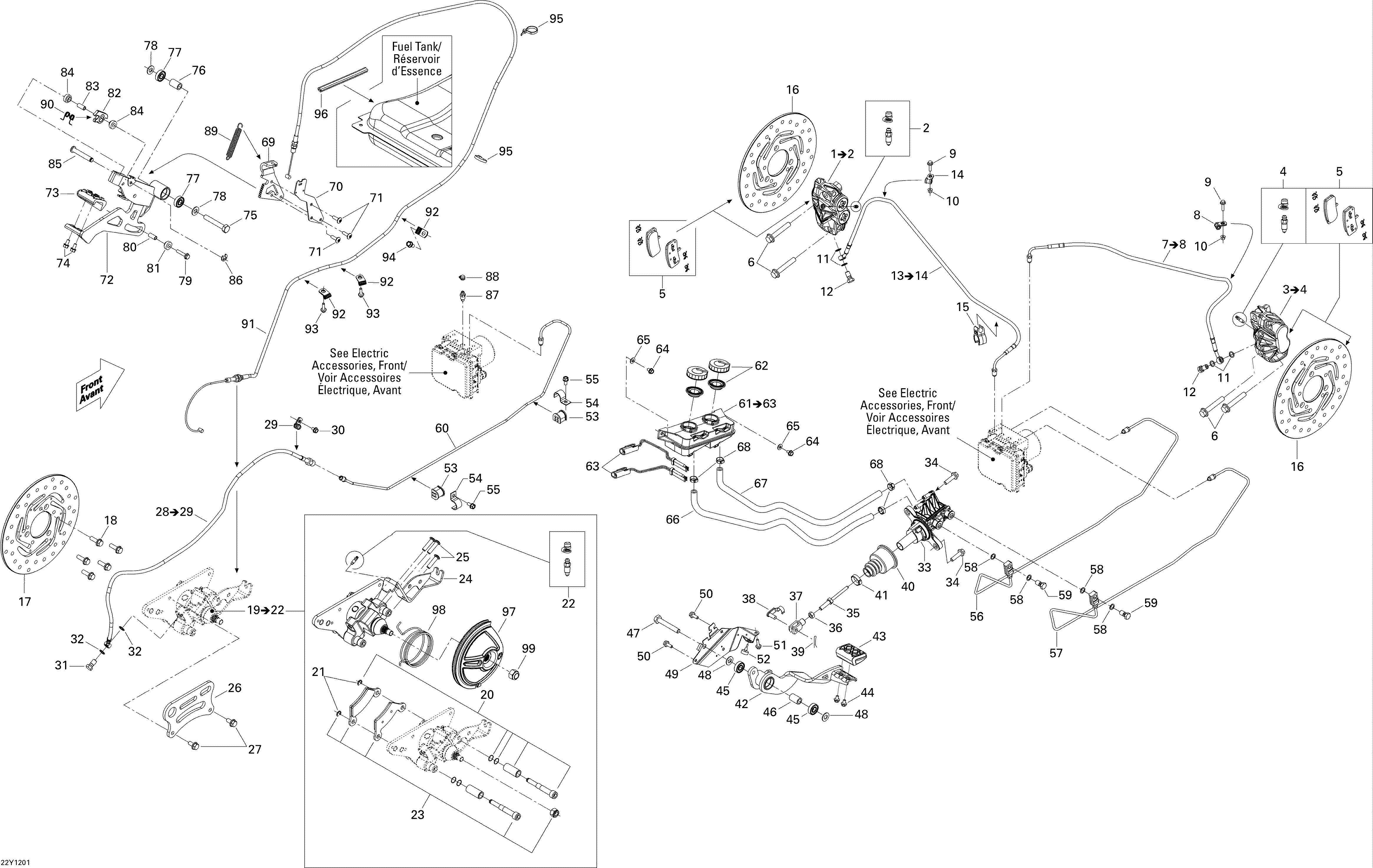

06- Hydraulic Brake для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1219800125 LH Front Caliper Ass'y. Includes 1 to 2LH Front Caliper Ass'y. Includes 1 to 2
-
2219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
3219800126 RH Front Caliper Ass'y. Includes 3 to 4RH Front Caliper Ass'y. Includes 3 to 4
-
4219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
5219800164 Pad Kit (4 Pads)Pad Kit (4 Pads)
-
6207506034 Hex. Flanged Screw M10 X 60, Scotch GripHex. Flanged Screw M10 X 60, Scotch Grip
-
7705600852 RH Front Flexible Brake Line. Includes 7 to 8RH Front Flexible Brake Line. Includes 7 to 8
-
8705600459 ClampClamp
-
9207652034 Hex. Flanged Screw M5 X 20Hex. Flanged Screw M5 X 20
-
10233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
11414920600 WasherWasher
-
12414920500 Banjo BoltBanjo Bolt
-
13705600853 LH Front Flexible Brake Line. Includes 13 to 14LH Front Flexible Brake Line. Includes 13 to 14
-
14705600459 ClampClamp
-
15705600854 Hose ClipHose Clip
-
16705600435 Front Brake DiscFront Brake Disc
-
17705600591 Rear Brake DiscRear Brake Disc
-
18207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
19705600921 Rear Caliper. Includes 19 to 22Rear Caliper. Includes 19 to 22
-
20219800032 Bushing KitBushing Kit
-
21219800050 Retaining RingRetaining Ring
-
22219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
23219800165 Rear Pad KitRear Pad Kit
-
24705600974 Cable SupportCable Support
-
25250000413 Thread Forming Screw 1/4-20 X 1''Thread Forming Screw 1/4-20 X 1''
-
26705600430 Rear Caliper SupportRear Caliper Support
-
27207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
28705600813 Rear Brake Line. Includes 28 to 29Rear Brake Line. Includes 28 to 29
-
29705600459 ClampClamp
-
30210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
31414920500 Banjo BoltBanjo Bolt
-
32414920600 WasherWasher
-
33705600722 Tandem Cylinder MasterTandem Cylinder Master
-
34207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
35705600468 Piston RodPiston Rod
-
36232081414 Hex. Nut M8Hex. Nut M8
-
37705600100 YokeYoke
-
38250400056 PinPin
-
39371800700 Cotter PinCotter Pin
-
40705600716 BellowBellow
-
41509000442 Oetiker Gear ClampOetiker Gear Clamp
-
42705600633 Brake PedalBrake Pedal
-
43705004933 Rubber PadRubber Pad
-
44210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
45705600458 BearingBearing
-
46705600541 BushingBushing
-
47207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
48503183800 WasherWasher
-
49705600823 Tab LockTab Lock
-
50207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
51210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
52708000759 Rubber StopperRubber Stopper
-
53705600843 Tube SupportTube Support
-
54705600507 ClipClip
-
55210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
56705601074 Front Tandem Rigid TubeFront Tandem Rigid Tube
-
57705601075 Rear Tandem Rigid TubeRear Tandem Rigid Tube
-
58414920600 WasherWasher
-
59414920500 Banjo BoltBanjo Bolt
-
60705601076 Rear Rigid TubeRear Rigid Tube
-
61705600735 Brake Fluid Reservoir Ass'y. Includes 61 to 63Brake Fluid Reservoir Ass'y. Includes 61 to 63
-
62219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
63515176508 Oil Level SensorOil Level Sensor
-
64210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
65224061121 Flat WasherFlat Washer
-
66415129615 Hose 8MM - 730MMHose 8MM - 730MM
-
67415129615 Hose 8MM - 730MMHose 8MM - 730MM
-
68293650047 Crimp ClampCrimp Clamp
-
69705600776 Pedal PlatePedal Plate
-
70705600584 Switch PlateSwitch Plate
-
71250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
72705600838 Brake PedalBrake Pedal
-
73705004933 Rubber PadRubber Pad
-
74210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
75207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
76705600541 BushingBushing
-
77705600458 BearingBearing
-
78503183800 WasherWasher
-
79207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
80705600588 BushingBushing
-
81705600587 BushingBushing
-
82705600524 KeyKey
-
83705600588 BushingBushing
-
84705600587 BushingBushing
-
85293370064 PinPin
-
86414439000 CirclipCirclip
-
87705600502 Bleeder ScrewBleeder Screw
-
88705600554 Bleeder CapBleeder Cap
-
89707000543 SpringSpring
-
90705600525 SpringSpring
-
91707000812 Brake CableBrake Cable
-
92415052400 AttacheAttache
-
93207662034 Hex. Flanged ScrewHex. Flanged Screw
-
94210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
95414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
96271001530 TrimTrim
-
97705600772 Rear Pulley CableRear Pulley Cable
-
98705601065 SpringSpring
-
99250100128 Nut 7/16''Nut 7/16''
