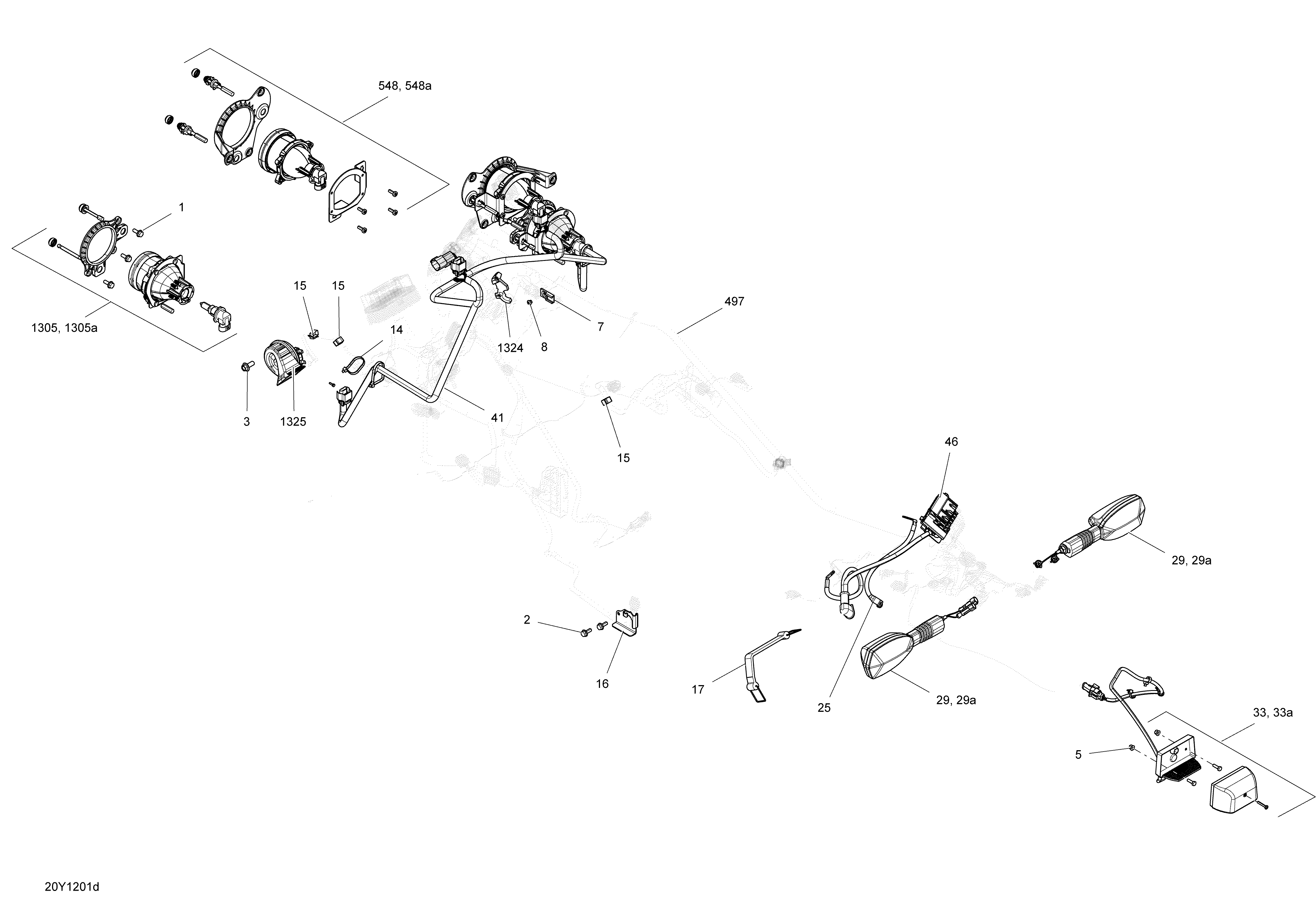

10- Electrical System Lighting Europe (SM5) для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
5233251494 Elastic Flanged NutElastic Flanged Nut
-
7270000141 ClipClip
-
8390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15414227300 ClipClip
-
16420251565 Reverse Cable SupportReverse Cable Support
-
17515176044 Battery StrapBattery Strap
-
25710000830 Ground Cable Ass'y, Battery/FrameGround Cable Ass'y, Battery/Frame
-
29710000707 Rear Turn Signal Ass'yRear Turn Signal Ass'y
-
33710001993 Licence LightLicence Light
-
41710000793 Beam Harness Ass'yBeam Harness Ass'y
-
46710002079 Positive Cable (Bat/Sol/Fus)Positive Cable (Bat/Sol/Fus)
-
497710001730 Frame HarnessFrame Harness
-
548710002500 LH High Beam Ass'yLH High Beam Ass'y
-
548710002499 RH High Beam Ass'yRH High Beam Ass'y
-
1305710002498 LH Low Beam Ass'yLH Low Beam Ass'y
-
1305710002497 RH Low Beam Ass'yRH Low Beam Ass'y
-
1324710001353 Reverse LeverReverse Lever
-
1325710002318 HornHorn
-
1305a415129249 Halogen BulbHalogen Bulb
-
29a715900043 Bulb 12V 21WBulb 12V 21W
-
33a415129261 BulbBulb
-
548a415129249 Halogen BulbHalogen Bulb
