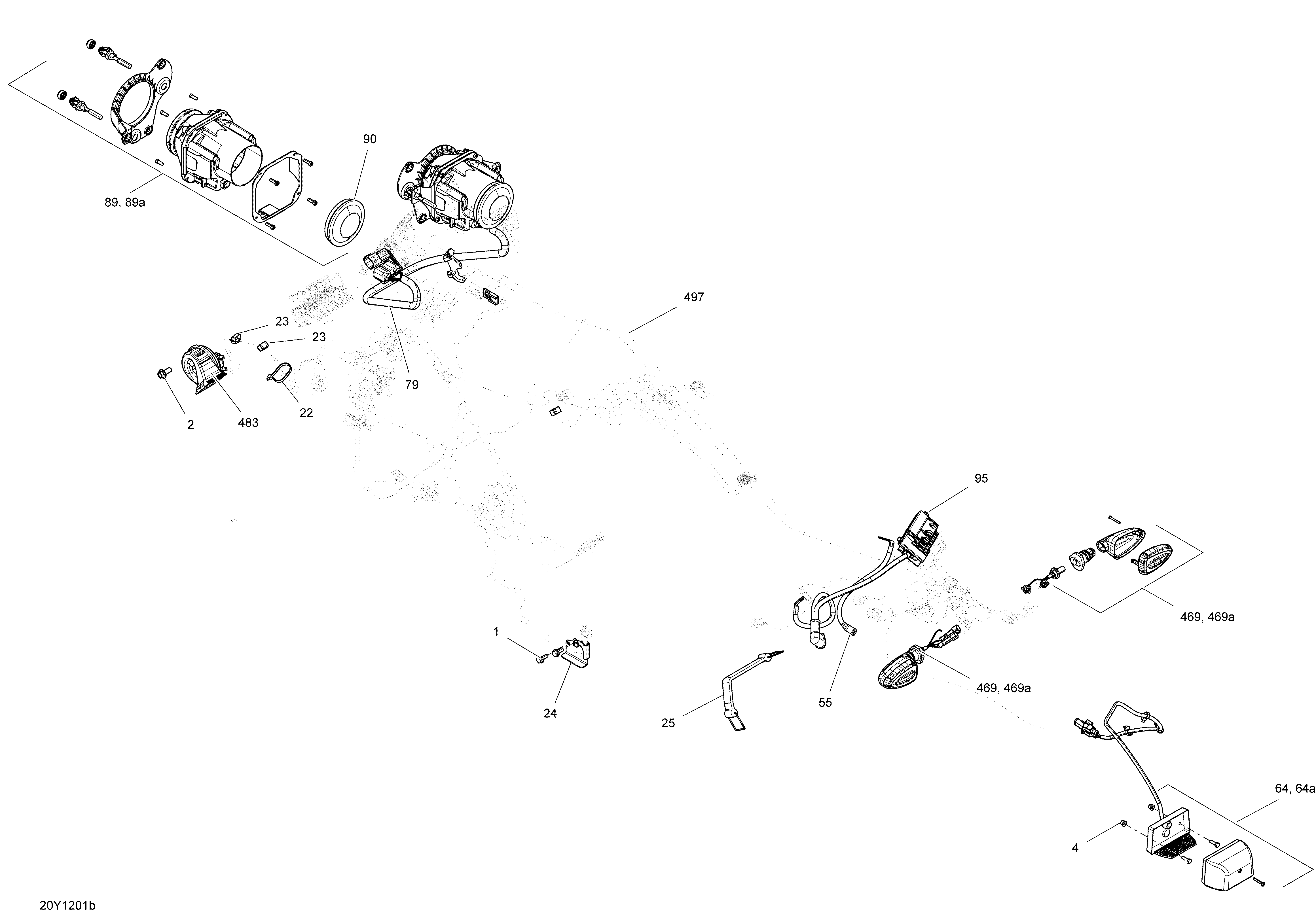

10- Electrical System Lighting North America (SM5) для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4233251494 Elastic Flanged NutElastic Flanged Nut
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23414227300 ClipClip
-
24420251565 Reverse Cable SupportReverse Cable Support
-
25515176044 Battery StrapBattery Strap
-
55710000830 Ground Cable Ass'y, Battery/FrameGround Cable Ass'y, Battery/Frame
-
64710001994 Licence LightLicence Light
-
79710000792 Beam Harness Ass'yBeam Harness Ass'y
-
89710002412 LH Bi-Halogen Beam Ass'yLH Bi-Halogen Beam Ass'y
-
89710002411 RH Bi-Halogen Beam Ass'yRH Bi-Halogen Beam Ass'y
-
90219400070 CapCap
-
95710002079 Positive Cable (Bat/Sol/Fus)Positive Cable (Bat/Sol/Fus)
-
469710001290 LH Rear Turn Signal Ass'yLH Rear Turn Signal Ass'y
-
469710001337 RH Rear Turn Signal Ass'yRH Rear Turn Signal Ass'y
-
483710002318 HornHorn
-
497710001730 Frame HarnessFrame Harness
-
469a219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
64a415129261 BulbBulb
-
89a219400069 Halogen BulbHalogen Bulb
