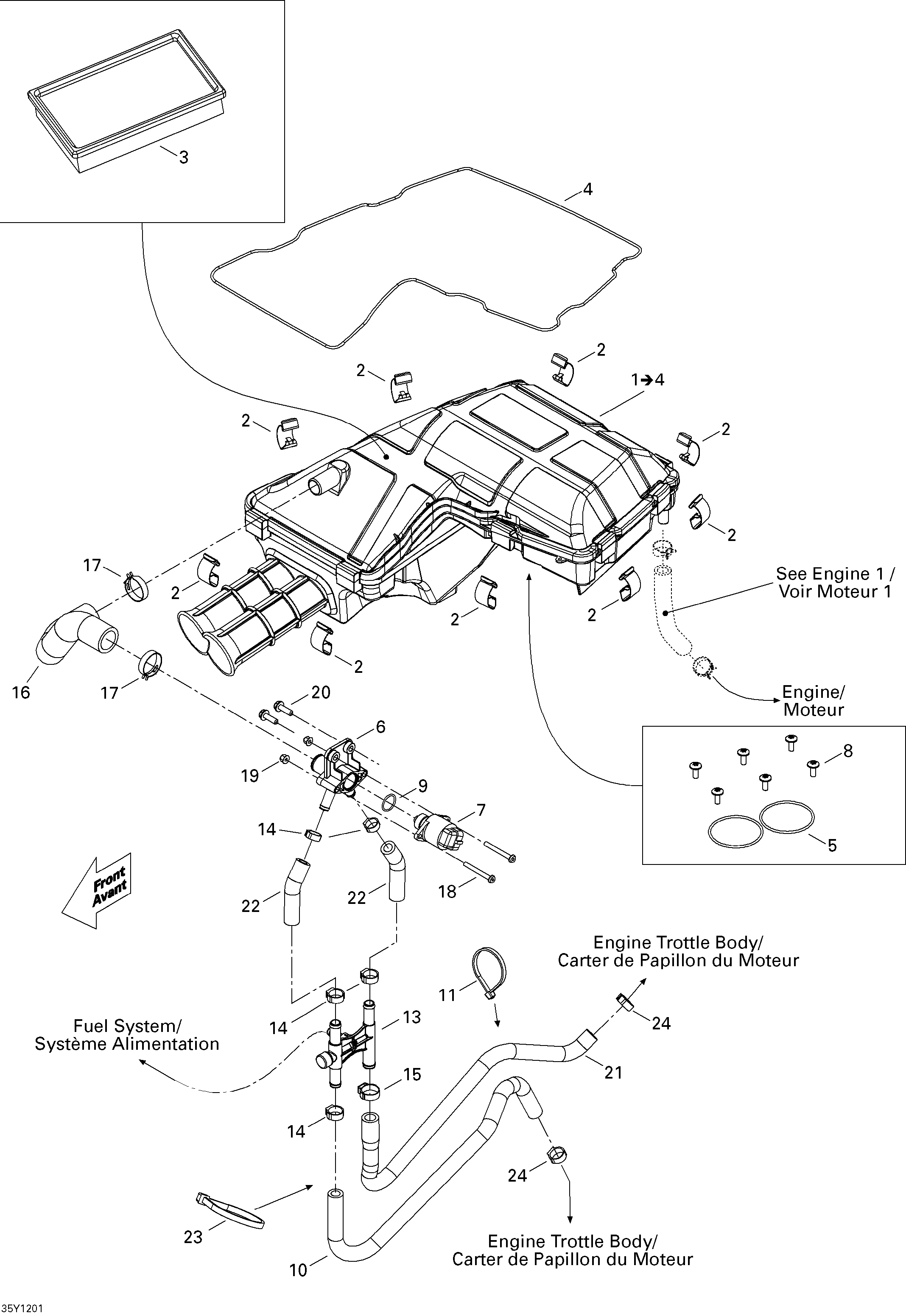

02- Air Intake для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1707800182 Air Intake Ass'yAir Intake Ass'y
-
2707800259 Cover BracketCover Bracket
-
3707800188 Air FilterAir Filter
-
4707800492 Gasket JointGasket Joint
-
5707800198 O RingO Ring
-
6707800207 FittingFitting
-
7707800203 Idle ValveIdle Valve
-
8250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
9293300079 O-RingO-Ring
-
10709000344 Formed HoseFormed Hose
-
11293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13707800397 ManifoldManifold
-
14293650030 Oetiker ClampOetiker Clamp
-
15293650011 Oetiker ClampOetiker Clamp
-
16707800253 Formed HoseFormed Hose
-
17707800255 Spring ClampSpring Clamp
-
18205454536 Socket Head Screw M5 X 45Socket Head Screw M5 X 45
-
19233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
20210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
21709000341 Formed HoseFormed Hose
-
22415129546 HoseHose
-
23293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
24293650053 Crimp ClampCrimp Clamp
