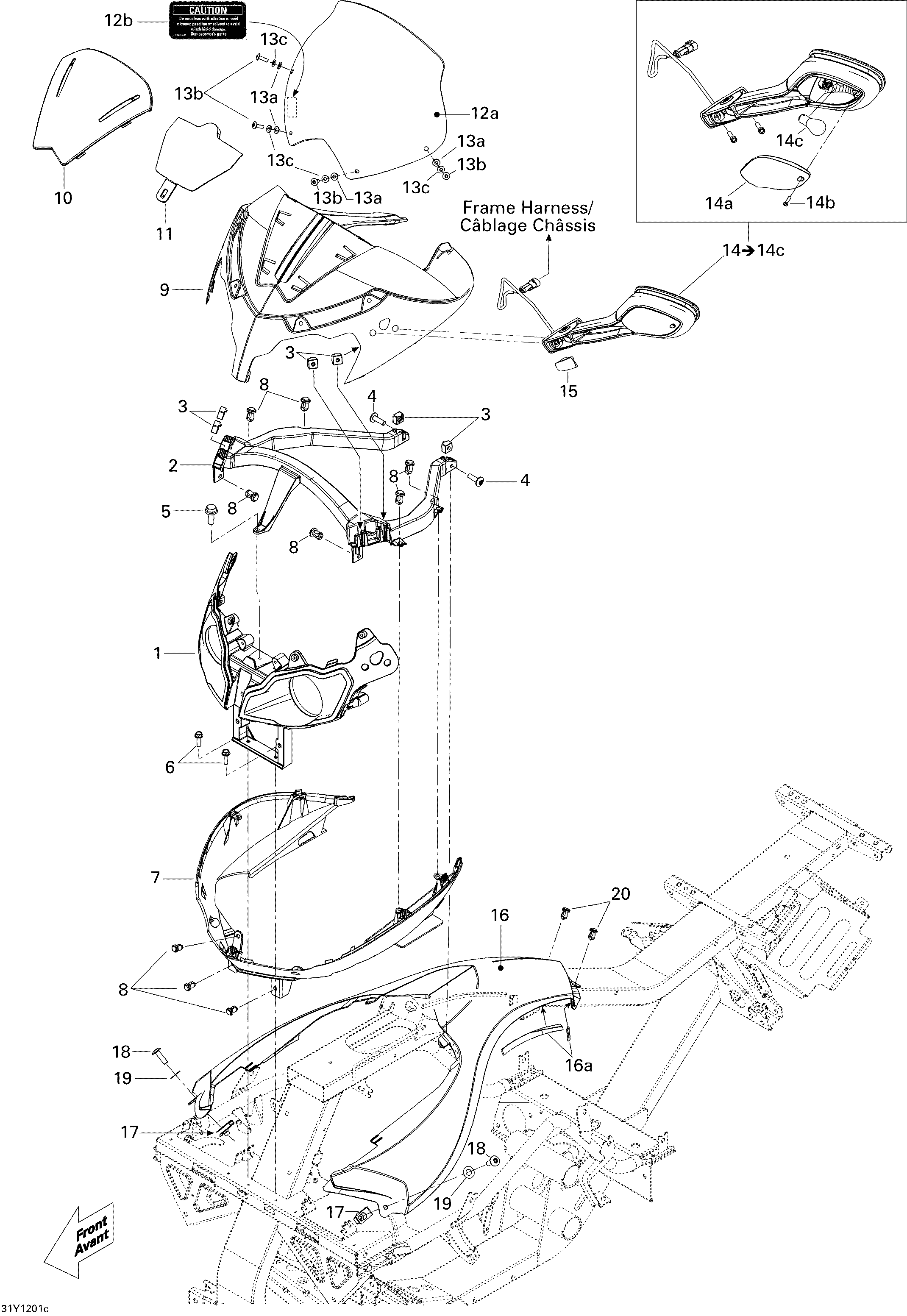

09- Body And Accessories Console для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1705004795 Upper Headlamp, BlackUpper Headlamp, Black
-
2705001548 Console SupportConsole Support
-
3269500725 Nut Housing Ass'yNut Housing Ass'y
-
4250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7705001427 Lower ConsoleLower Console
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9705002082 Upper ConsoleUpper Console
-
10705002712 Upper Console DeflectorUpper Console Deflector
-
11705003472 Guide ChartGuide Chart
-
12a705002939 WindshieldWindshield
-
12b704901353 Caution Decal, WindshieldCaution Decal, Windshield
-
13a250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13b250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
13c234062670 Flat WasherFlat Washer
-
14705005574 LH Mirror Ass'y. Includes 14 to 14cLH Mirror Ass'y. Includes 14 to 14c
-
14705005575 RH Mirror Ass'y. Includes 14 to 14cRH Mirror Ass'y. Includes 14 to 14c
-
14a219800047 LH Mirror LensLH Mirror Lens
-
14a219800048 RH Mirror LensRH Mirror Lens
-
14b219800049 Screw M3.9 X 19Screw M3.9 X 19
-
14c219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
15705002704 LH Mirror CapLH Mirror Cap
-
15705002705 RH Mirror CapRH Mirror Cap
-
16705006273 Center Panel, Black. RS Black ModelCenter Panel, Black. RS Black Model
-
16705006271 Center Panel, White. RS White ModelCenter Panel, White. RS White Model
-
16705006272 Center Panel, Black. RS-S Green ModelCenter Panel, Black. RS-S Green Model
-
16705006272 Center Panel, Black. RS-S Red ModelCenter Panel, Black. RS-S Red Model
-
16705006273 Center Panel, Black. RS-S Magnesium ModelCenter Panel, Black. RS-S Magnesium Model
-
16a293250087 Gasket, NeopreneGasket, Neoprene
-
17250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19705003207 Plastic WasherPlastic Washer
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
