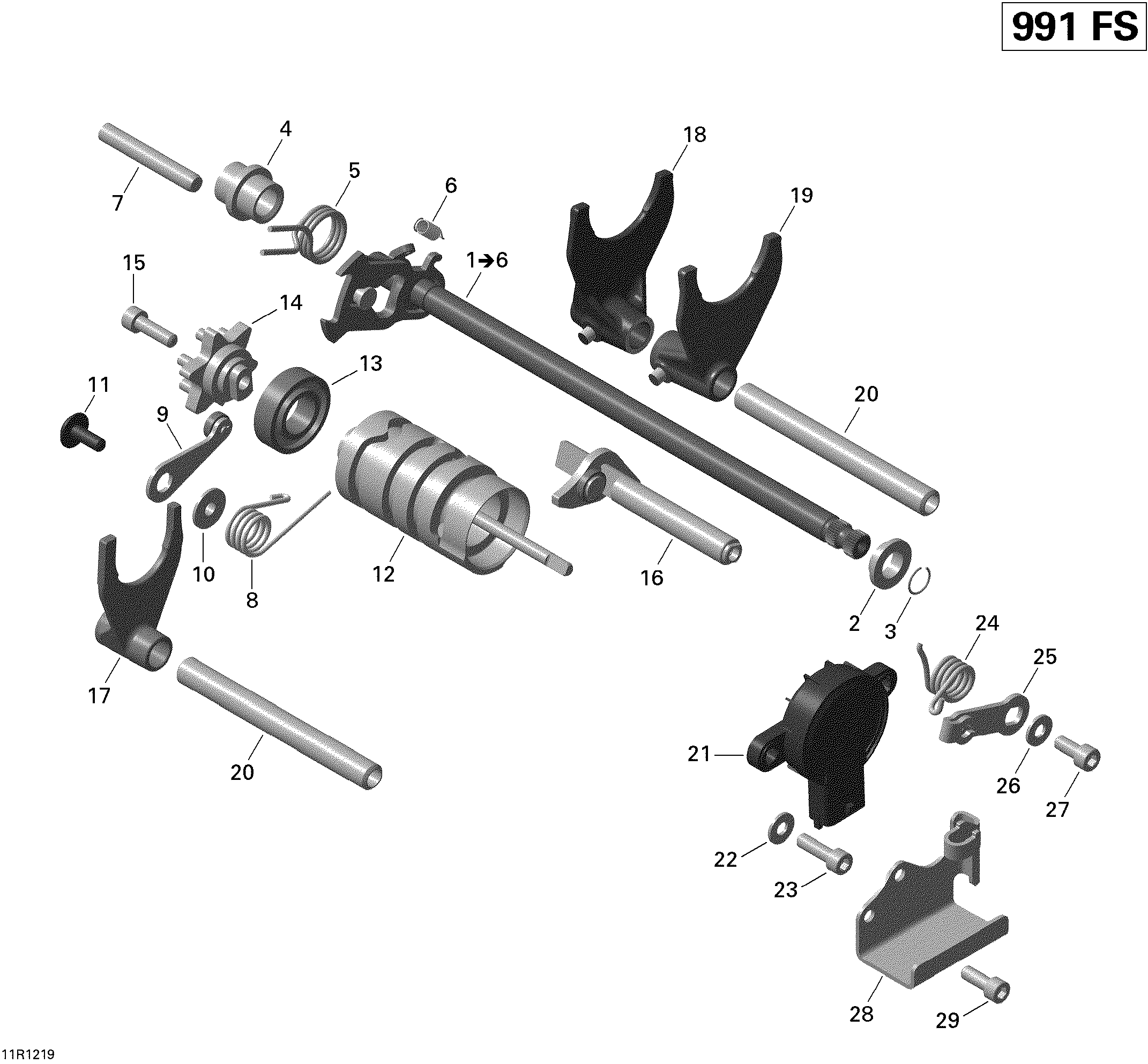

05- Shifting System для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1420620595 Clutch Shaft Ass'y. Includes 1 to 6Clutch Shaft Ass'y. Includes 1 to 6
-
2420227714 Step RingStep Ring
-
3420245440 Snap RingSnap Ring
-
4420247940 Step SleeveStep Sleeve
-
5420239422 SpringSpring
-
6420239430 SpringSpring
-
7420229385 Pin, M6 X 55Pin, M6 X 55
-
8420239248 Return SpringReturn Spring
-
9420248376 Indexation LeverIndexation Lever
-
10420227716 Step RingStep Ring
-
11420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
12420257556 Shift DrumShift Drum
-
13420232625 Ball BearingBall Bearing
-
14420258310 Indexation ShimIndexation Shim
-
15420241932 Allen Screw M6 X 20Allen Screw M6 X 20
-
16420620706 Locking ShaftLocking Shaft
-
17420257690 Shift Fork ShaftShift Fork Shaft
-
18420258355 Shift Fork ShaftShift Fork Shaft
-
19420258365 Shift Fork ShaftShift Fork Shaft
-
20420258383 Fork SpindleFork Spindle
-
21420266167 Angle Rotation SensorAngle Rotation Sensor
-
22224061121 Flat WasherFlat Washer
-
23420241932 Allen Screw M6 X 20Allen Screw M6 X 20
-
24420838410 SpringSpring
-
25420248275 Control LeverControl Lever
-
26224061121 Flat WasherFlat Washer
-
27420840391 Allen Screw M6 X 14Allen Screw M6 X 14
-
28420251565 Reverse Cable SupportReverse Cable Support
-
29420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
