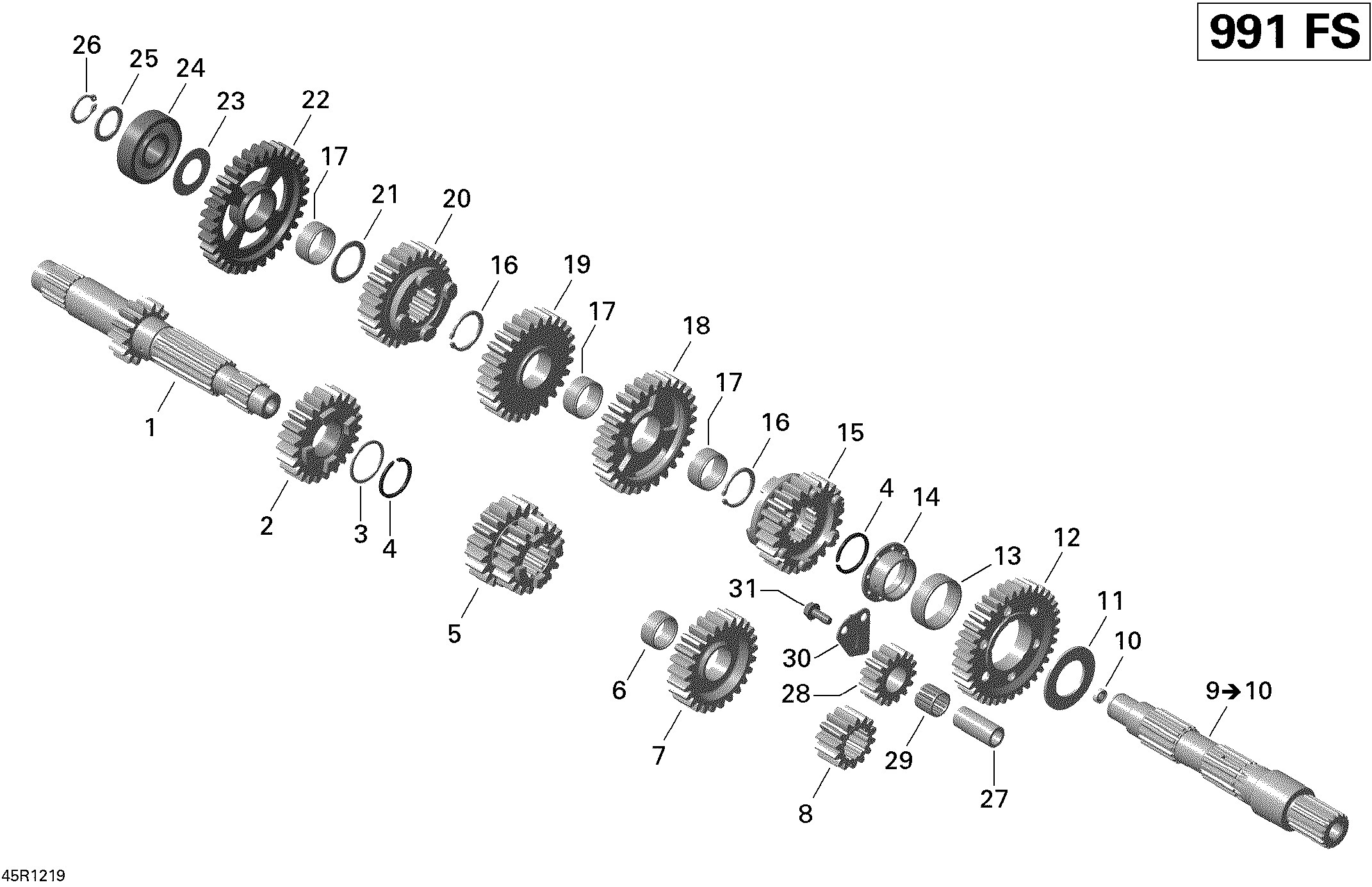

05- Gear Box для BRP Spyder RS SM5 - 2012
-
№АртикулНазвание
-
1420620604 Clutch ShaftClutch Shaft
-
2420434447 Free Pinion, 23 TeethFree Pinion, 23 Teeth
-
3420627120 Thrust WasherThrust Washer
-
4420245815 Snap RingSnap Ring
-
5420434411 Pinion Gear, 17/19 TeethPinion Gear, 17/19 Teeth
-
6420232530 Needle BearingNeedle Bearing
-
7420434462 Free Pinion, 25 TeethFree Pinion, 25 Teeth
-
8420434483 Pinion Gear, 14 TeethPinion Gear, 14 Teeth
-
9420620616 Main Shaft. Includes 9 to 10Main Shaft. Includes 9 to 10
-
10420930500 Oil SealOil Seal
-
11420626380 Thrust RingThrust Ring
-
12420434503 Free Pinion, 36 TeethFree Pinion, 36 Teeth
-
13420632195 Needle CageNeedle Cage
-
14420632530 BushingBushing
-
15420434472 Pinion Gear, 24 TeethPinion Gear, 24 Teeth
-
16420845775 Retaining RingRetaining Ring
-
17420632070 Needle BearingNeedle Bearing
-
18420434422 Pinion Gear, 29 TeethPinion Gear, 29 Teeth
-
19420434432 Pinion Gear, 26 TeethPinion Gear, 26 Teeth
-
20420434452 Pinion Gear, 26 TeethPinion Gear, 26 Teeth
-
21420427106 WasherWasher
-
22420481030 Gear SetGear Set
-
23420827110 ShimShim
-
24420832144 Ball BearingBall Bearing
-
25420227442 Thrust WasherThrust Washer
-
26420945665 Retaining RingRetaining Ring
-
27420229450 BoltBolt
-
28420434372 Pinion Gear, 15 TeethPinion Gear, 15 Teeth
-
29420432030 Needle CageNeedle Cage
-
30420224740 Locking TieLocking Tie
-
31420240580 Taptite Screw M6 X 16Taptite Screw M6 X 16
