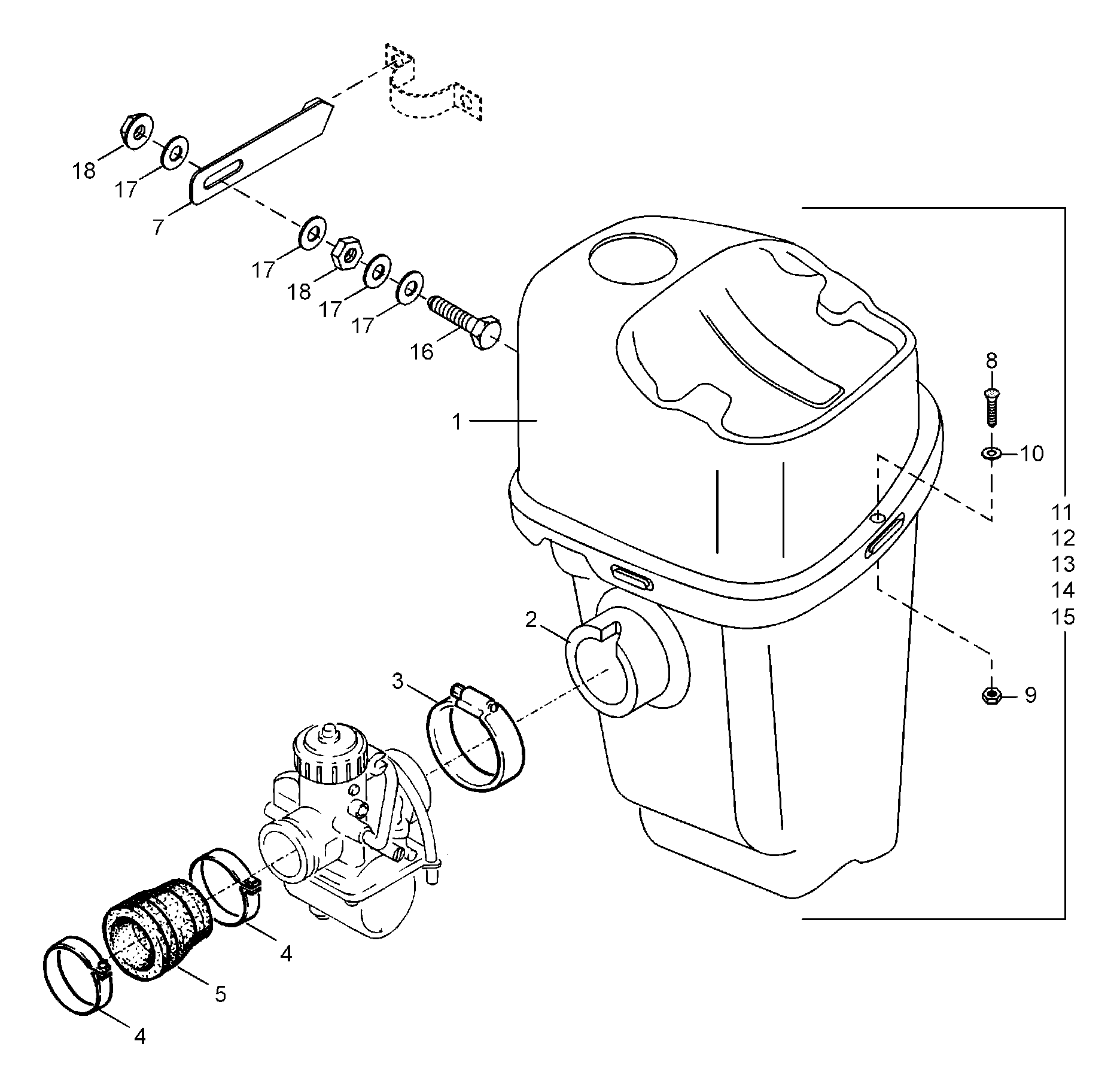

01- Air Silencer для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
15243336 Air silencer assy. Notice! Air silencer includes parts 8...18Air silencer assy. Notice! Air silencer includes parts 8...18
-
2533310 Fastening rubberFastening rubber
-
327018 ClampClamp
-
4420951510 ClampClamp
-
5420867481 Rubber flangeRubber flange
-
75443340 Retainer for Air BoxRetainer for Air Box
-
840157 Screw M5x25Screw M5x25
-
933062 Lock Nut M5Lock Nut M5
-
1020008 WasherWasher
-
115444445 PipePipe
-
125341872 Bottom of air boxBottom of air box
-
135341874 Inside bottomInside bottom
-
145343337 Inside coverInside cover
-
155343338 Cover of air boxCover of air box
-
1640031 Screw M6x25Screw M6x25
-
1720009 WasherWasher
-
1833010 Nut elastic M6Nut elastic M6
