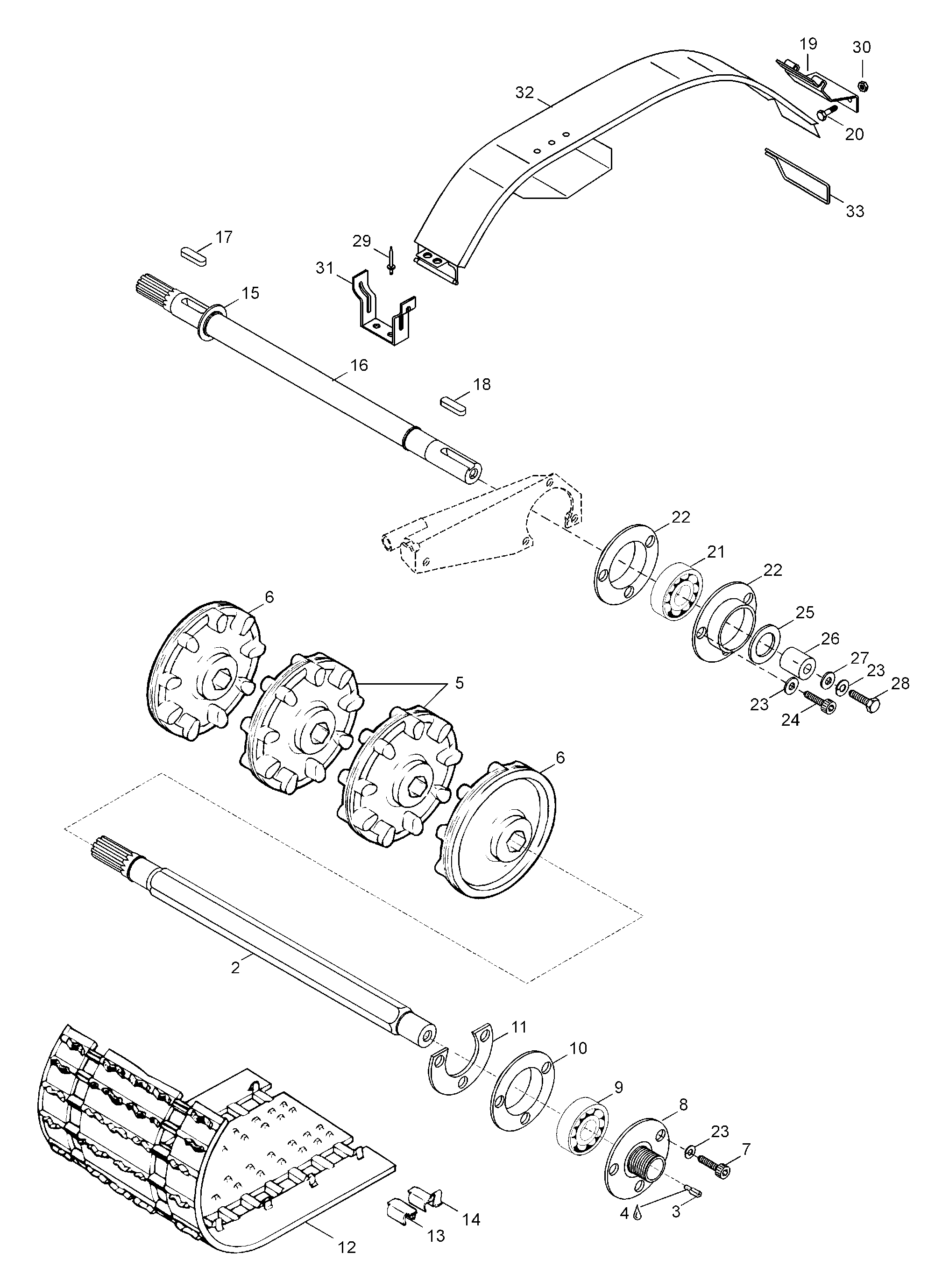

05- Drive Axle для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
15342411 Drive shaft assy. Includes items 1 thru 6Drive shaft assy. Includes items 1 thru 6
-
2529941 Drive shaftDrive shaft
-
3542013 SleeveSleeve
-
4413707400 Loctite 271, 10ccLoctite 271, 10cc
-
5539750 SprocketSprocket
-
65342920 SprocketSprocket
-
740305 Allen screw M8x20Allen screw M8x20
-
85341957 Cap weldedCap welded
-
931009 Ball bearing 6205Ball bearing 6205
-
105341953 ball bearing housingball bearing housing
-
115441956 Retainer ringRetainer ring
-
12570212500 Track. Includes items 12 thru 14Track. Includes items 12 thru 14
-
14500003400 Guide cleatGuide cleat
-
16529693 CountershaftCountershaft
-
17418740 KeyKey
-
18418763 KeyKey
-
2131B516 Ball bearingBall bearing
-
22534430 Bearing housing assyBearing housing assy
-
2320014 Lock washerLock washer
-
2440337 Screw M8x16Screw M8x16
-
253125351 ShimShim
-
26546335 SleeveSleeve
-
27546336 WasherWasher
-
2840088 Screw M8x70Screw M8x70
-
2936083 RivetRivet
-
31518202100 Pulley Guard BracketPulley Guard Bracket
-
325243331 Belt guardBelt guard
-
335442726 PinPin
