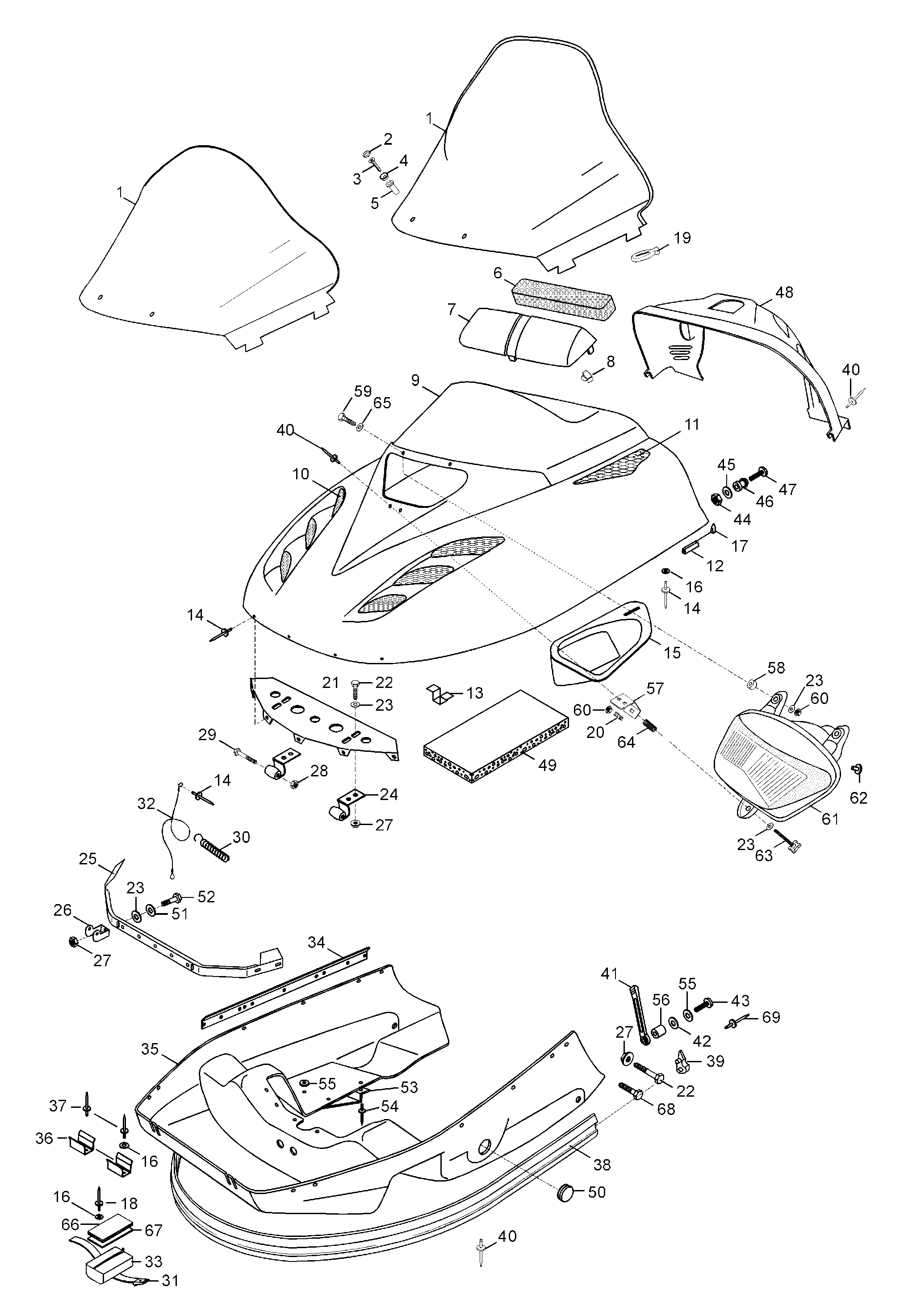

09- Hood для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
15242258 Windshield, highWindshield, high
-
2282003 CoverCover
-
340179 Screw M5x25Screw M5x25
-
4282002 Bottom of screwBottom of screw
-
528050 Well-nutWell-nut
-
65343206 FilterFilter
-
75343205 Cover to filterCover to filter
-
8414227300 ClampClamp
-
95143296 Hood redHood red
-
105243280 Side grill L.H.Side grill L.H.
-
105243281 Side grill R.H.Side grill R.H.
-
115343282 Side grill L.H.Side grill L.H.
-
1239006 Edge sealingEdge sealing
-
13544007 Cabel clampCabel clamp
-
1436009 RivetRivet
-
155243333 Air deflectorAir deflector
-
1620008 WasherWasher
-
1732097 Loctite 460Loctite 460
-
1836037 RivetRivet
-
19570023800 Windshield latchWindshield latch
-
2033066 NutNut
-
215343334 Retainer of HingeRetainer of Hinge
-
2240030 Screw M6x20Screw M6x20
-
2320009 WasherWasher
-
245440164 HingeHinge
-
255243335 Hinge BumperHinge Bumper
-
265440867 Hinge SupportHinge Support
-
2733200 Nut M6Nut M6
-
2833009 Nut elastic M5Nut elastic M5
-
2940235 Screw M5x35Screw M5x35
-
302505171211 SpringSpring
-
31548455 Tool bag beltTool bag belt
-
325443781 Cab retainer cableCab retainer cable
-
335342513 Tool boxTool box
-
34546852 QuideQuide
-
355144068 Bottom PanBottom Pan
-
365442399 Holder of Driven BeltHolder of Driven Belt
-
3736005 RivetRivet
-
385242848 BumperBumper
-
39549096L Bumper cap L.H.Bumper cap L.H.
-
39549096R Bumper cap R.H.Bumper cap R.H.
-
4036036 RivetRivet
-
41531955 Fastening rubberFastening rubber
-
42543392 WasherWasher
-
4340247 Screw M5x16Screw M5x16
-
4433008 Nut elastic M4Nut elastic M4
-
4520001 WasherWasher
-
46542307 Counter rollCounter roll
-
4740168 Screw M4x25Screw M4x25
-
485243428 Rear hoodRear hood
-
49414632400 ac.(74'’x34'’x1/2)ac.(74'’x34'’x1/2)
-
50570277300 PlugPlug
-
5120052 Lock springLock spring
-
5240029 Screw M6x16Screw M6x16
-
5436489 RivetRivet
-
5520008 WasherWasher
-
56543417 SleeveSleeve
-
575443339 Support for lampSupport for lamp
-
5828032 GrommetGrommet
-
5940833 Screw M6x30Screw M6x30
-
6033010 Nut elastic M6Nut elastic M6
-
6142301 HeadlampHeadlamp
-
6228136 Cover plugCover plug
-
6340342 Adjuster screwAdjuster screw
-
6425010 SpringSpring
-
6520007 WasherWasher
-
665342514 Bag PaddingBag Padding
-
675443883 PlatePlate
