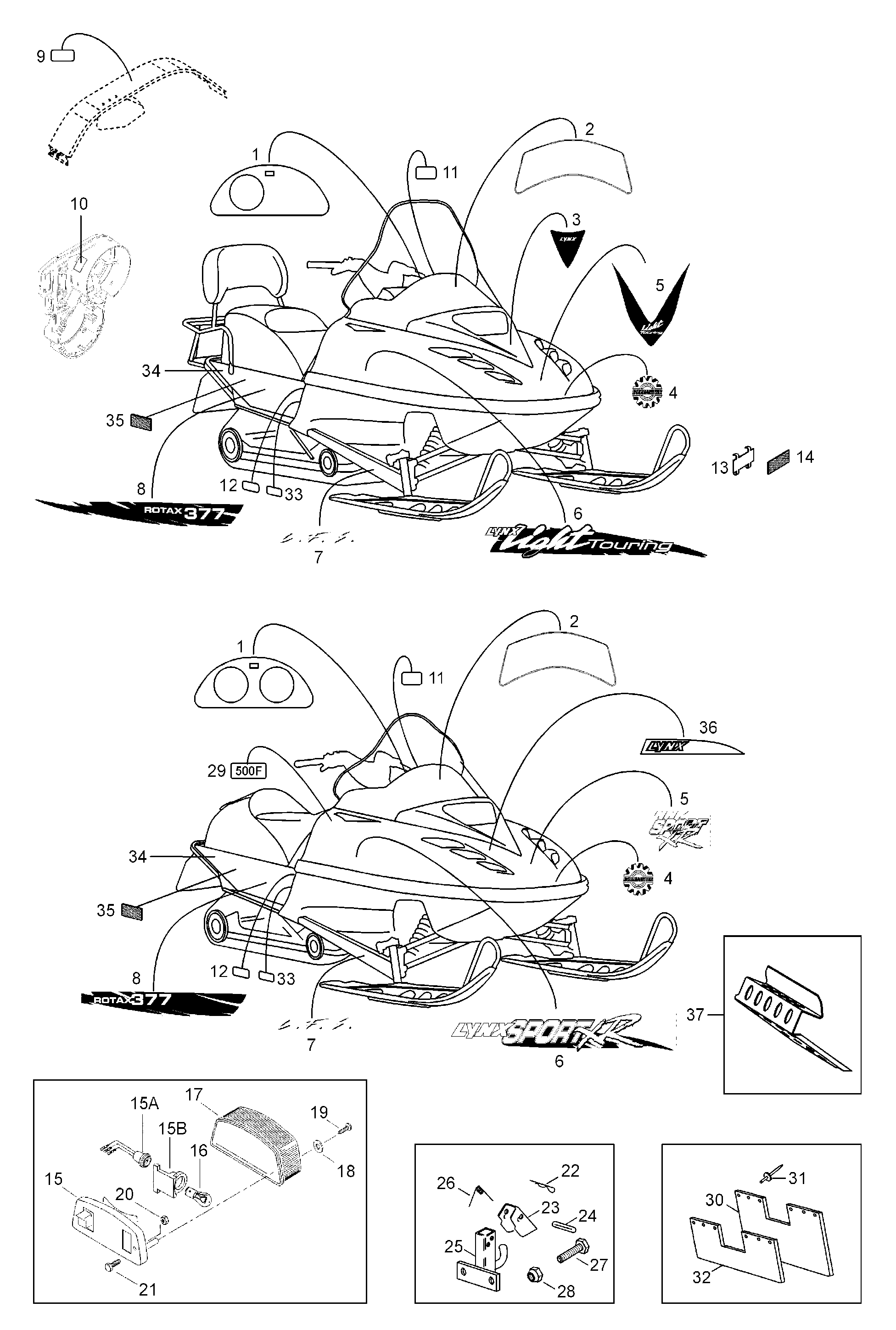

09- Equipment для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
5143292 Chasis decals ( 7 and 8)Chasis decals ( 7 and 8)
-
5144199 Hood decals ( 1, 2, 3, 4, 5, 6)Hood decals ( 1, 2, 3, 4, 5, 6)
-
5143327 Instruction decals ( 9, 10, 11, 12, 33)Instruction decals ( 9, 10, 11, 12, 33)
-
15243291 Instrument panel decalInstrument panel decal
-
25241725 Instruction decalInstruction decal
-
35243289 Decal hood, lightDecal hood, light
-
4516000282 Logo, BOMBARDIERLogo, BOMBARDIER
-
55243290 Decal for hood, frontDecal for hood, front
-
65243287 Decal hood R.H.Decal hood R.H.
-
65243288 Decal hood L.H.Decal hood L.H.
-
75343295 LFS-decalLFS-decal
-
85243293 Decal for frame R.H.Decal for frame R.H.
-
85243294 Decal for frame L.H.Decal for frame L.H.
-
9546820 Belt quard decalBelt quard decal
-
10544073 Fan belt decalFan belt decal
-
11549711 Dacal for instrumentDacal for instrument
-
12544068 Oil check decalOil check decal
-
135440839 SupportSupport
-
1421060 White reflectorWhite reflector
-
15b414979411 Rubber damperRubber damper
-
15414979400 Taillamp housingTaillamp housing
-
15a414979400 SocketSocket
-
155341214 Rear lamp assy. Includes items 15 thru 20Rear lamp assy. Includes items 15 thru 20
-
16410504000 BulbBulb
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
2033200 Nut M6Nut M6
-
2140003 Screw M6x35Screw M6x35
-
225343991 Hitch assy. Includes items 22 thru 28Hitch assy. Includes items 22 thru 28
-
2241029 Needle pinNeedle pin
-
23545225 LatchLatch
-
2441012 CotterCotter
-
25545224 Draw hookDraw hook
-
26545693 SpringSpring
-
2740040 Screw M10x25Screw M10x25
-
2833012 Nut elastic M10Nut elastic M10
-
30534727 Snow guardSnow guard
-
3136037 RivetRivet
-
32537577 SupportSupport
-
33418002200 CE-decalCE-decal
-
345143456 FrameFrame
-
3521121 Reflector, yellowReflector, yellow
-
375243453 R.H. Front footrestR.H. Front footrest
-
375243452 L.H. Front footrestL.H. Front footrest
