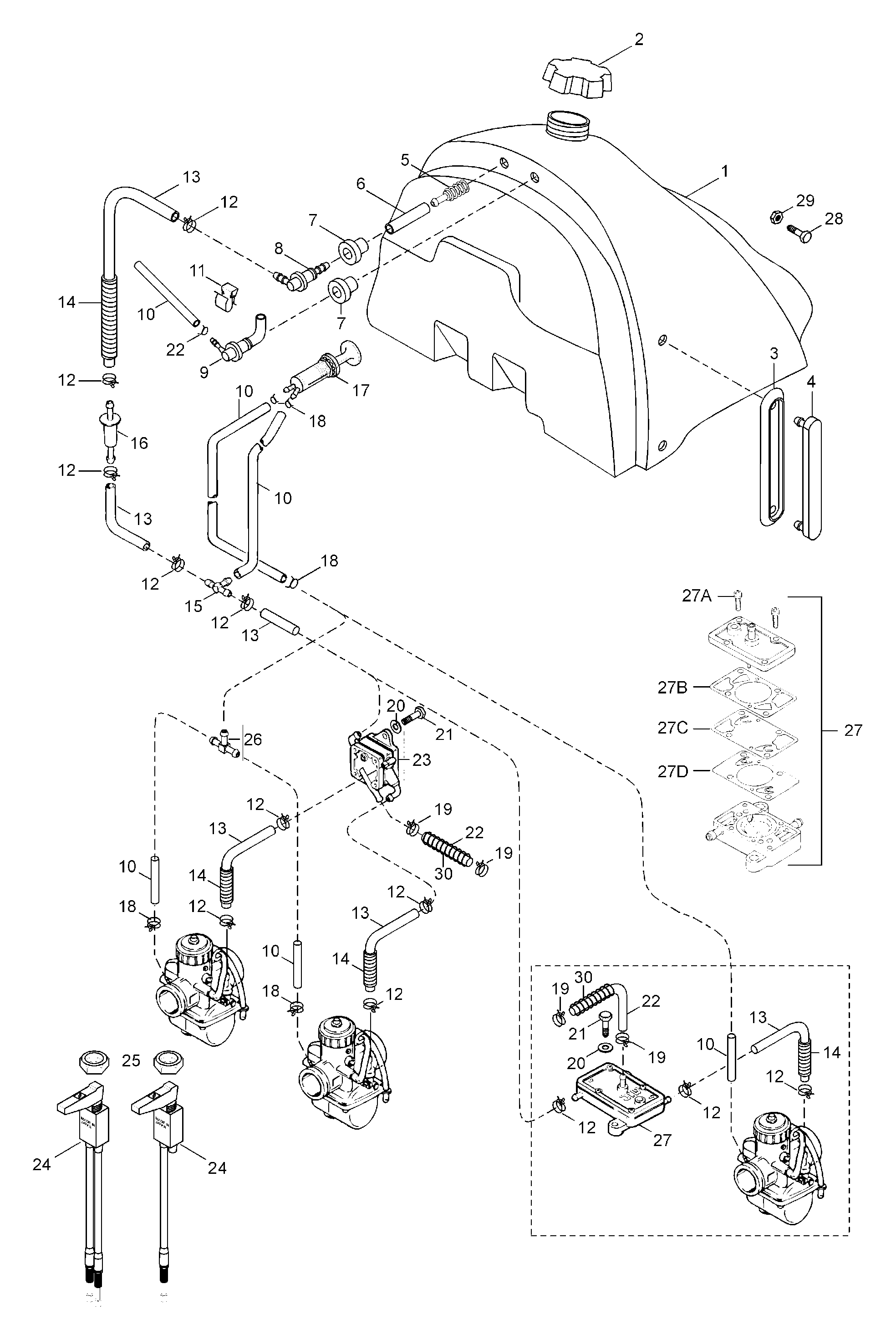

02- Fuel Tank для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
15241552 Fuel tankFuel tank
-
2572230500 Fuel tank capFuel tank cap
-
3570018000 Housing gaugeHousing gauge
-
4572015900 Fuel gaugeFuel gauge
-
5414872100 Fuel filterFuel filter
-
639048 Fuel line 13.5/8.5Fuel line 13.5/8.5
-
728037 GrommetGrommet
-
85341709 ConnectorConnector
-
95442152 Air vent fittingAir vent fitting
-
1039035 Air-lineAir-line
-
11414227300 ClipClip
-
1227086 ClampClamp
-
1339004 Fuel line 8/5Fuel line 8/5
-
1428012 TubingTubing
-
1521067 T-fittingT-fitting
-
1621065 Fuel filterFuel filter
-
17414479200 PrimerPrimer
-
18543230 ClampClamp
-
19414420700 ClampClamp
-
2020052 Spring washerSpring washer
-
2140029 Screw M6x16Screw M6x16
-
2239001 LineLine
-
24524046 Cable chokeCable choke
-
25414977200 Elastic nutElastic nut
-
2621062 T-fittingT-fitting
-
27a420841460 Screw + washerScrew + washer
-
27b190003 Gasket set. Includes items 27B thru 27DGasket set. Includes items 27B thru 27D
-
27b420831935 GasketGasket
-
27C420861137 Pump diaphgramPump diaphgram
-
27D420861135 Pumpcase gasketPumpcase gasket
-
27403800800 Fuel pumpFuel pump
-
2840211 Screw M6x35Screw M6x35
-
2933200 Nut M6Nut M6
-
3028015 TubingTubing
