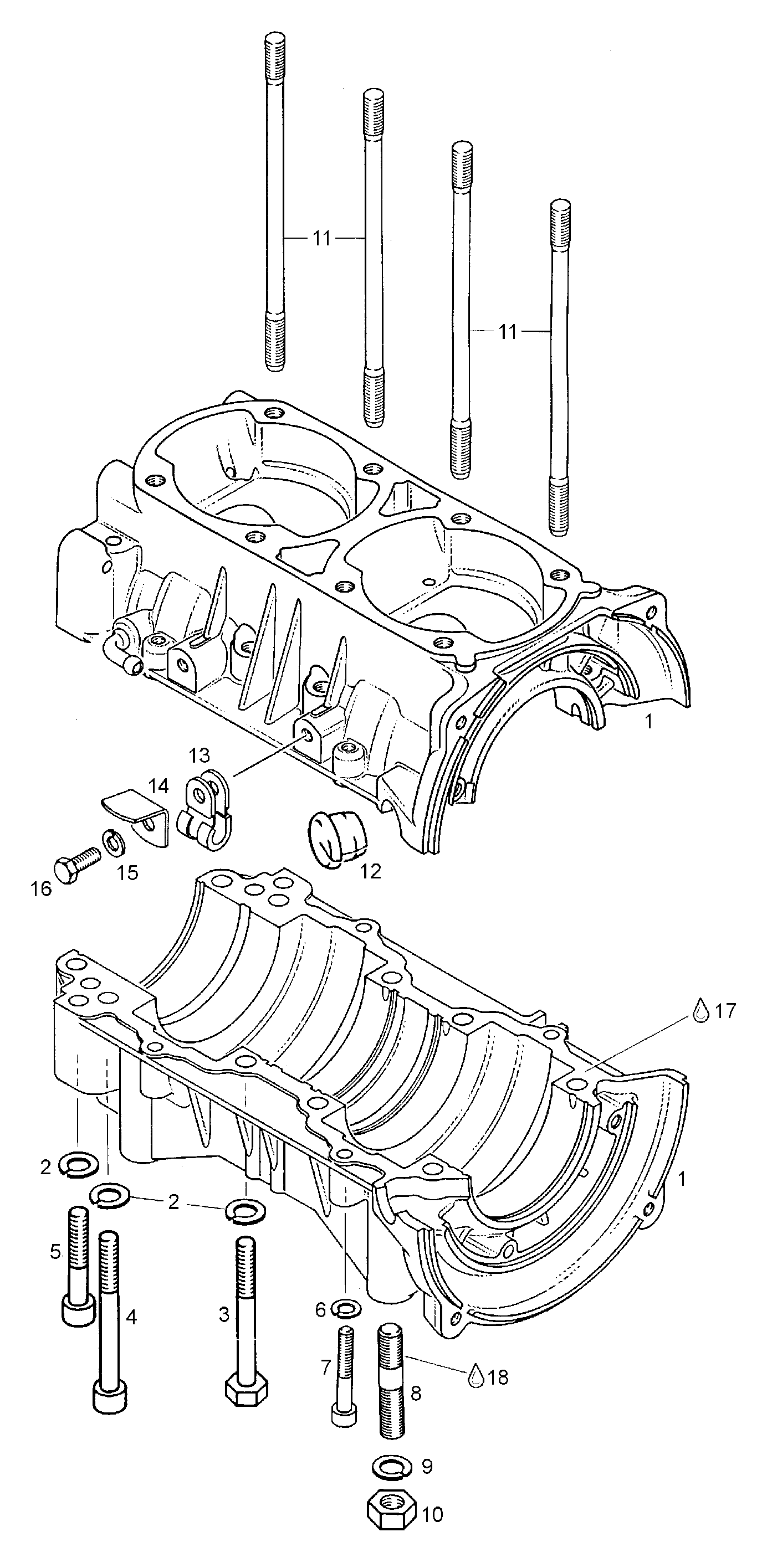

05- Crankcase для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
1420887784 Crankcase. Includes items 1 thru 7Crankcase. Includes items 1 thru 7
-
2420945752 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4420841831 Screw M8x75Screw M8x75
-
5420841566 Allen Screw M8x50Allen Screw M8x50
-
6420945751 Spring washerSpring washer
-
7420241816 Screw M6x40Screw M6x40
-
8420940190 StudStud
-
9420945753 Spring washerSpring washer
-
10420242091 Nut M10Nut M10
-
11420841149 StudStud
-
12420860962 InletInlet
-
13420853412 Cable clampCable clamp
-
14420953310 Wire supportWire support
-
15420945751 Lock washerLock washer
-
16420241186 Screw M6x16Screw M6x16
-
17420899784 Loct 574/orangeLoct 574/orange
-
18420899785 Loct 221/violLoct 221/viol
