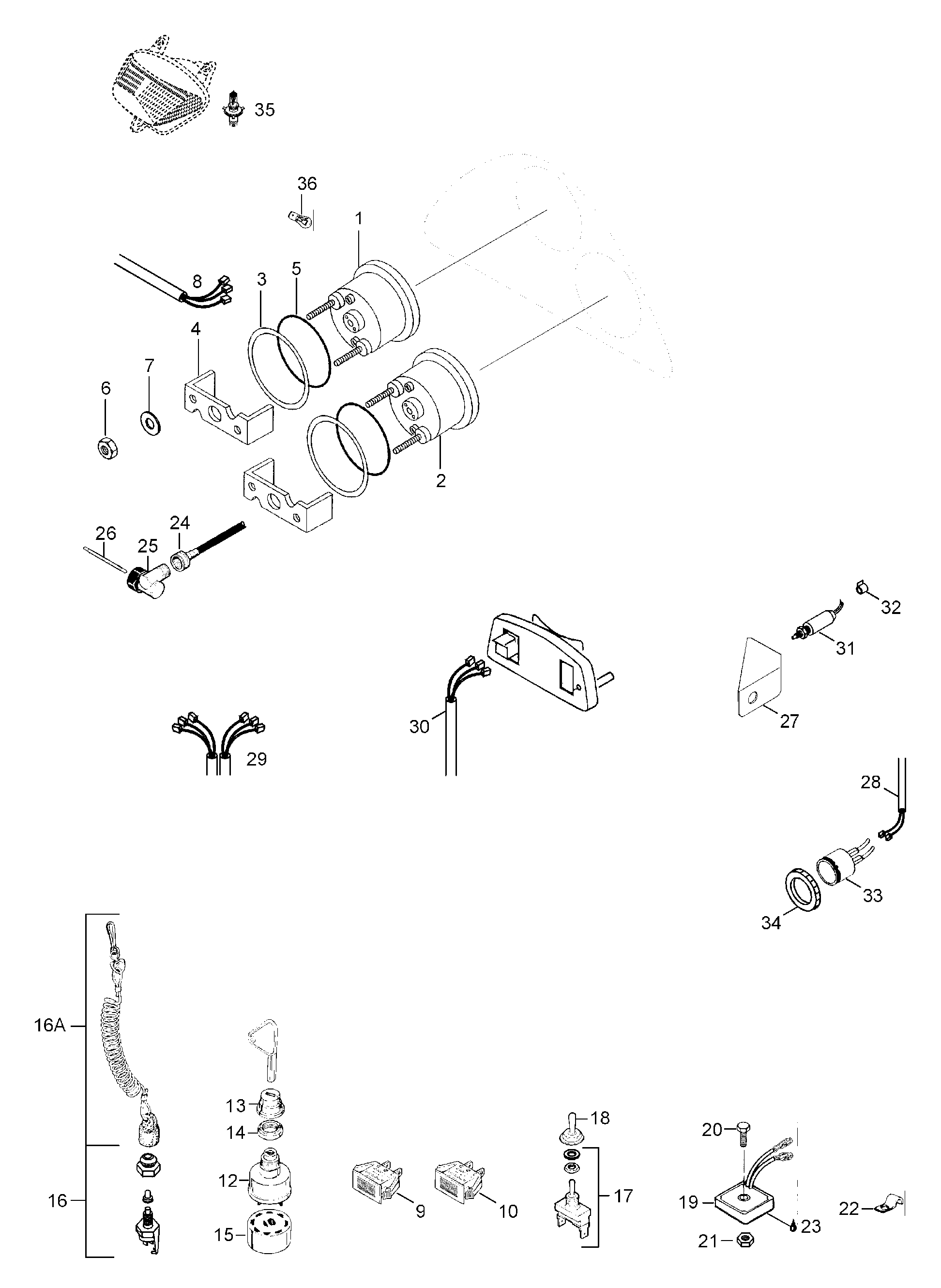

10- Electric для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
2415096300 Speedometer, whiteSpeedometer, white
-
3517258500 WasherWasher
-
4414806500 Case holderCase holder
-
5414807100 O-ringO-ring
-
633009 Nut elastic M5Nut elastic M5
-
720002 WasherWasher
-
9410109500 Lamp-pilot redLamp-pilot red
-
1242019 Ignition switchIgnition switch
-
13570013700 Boot switchBoot switch
-
14410112100 NutNut
-
15572150700 Ignition switch blockIgnition switch block
-
16a4299163 Switch cupSwitch cup
-
16544957 Switch brake assy. Includes items 16 thru 16ASwitch brake assy. Includes items 16 thru 16A
-
17410110700 SwitchSwitch
-
18570013900 Rubber cover for switcRubber cover for switc
-
195441403 Voltage regulator assyVoltage regulator assy
-
2040003 Screw M6x35Screw M6x35
-
2133200 Nut elastic M6Nut elastic M6
-
22414227300 ClipClip
-
23413706400 Lithium greaseLithium grease
-
2445008 Speedometer cableSpeedometer cable
-
2535021 Angle gear 1:1.4Angle gear 1:1.4
-
2645075 Square pin 75mmSquare pin 75mm
-
295244738 Wire harnessWire harness
-
305442762 Wire for taillampWire for taillamp
-
35410503700 Bulb 60/55WBulb 60/55W
-
36410504200 Instrumentation bulbInstrumentation bulb
