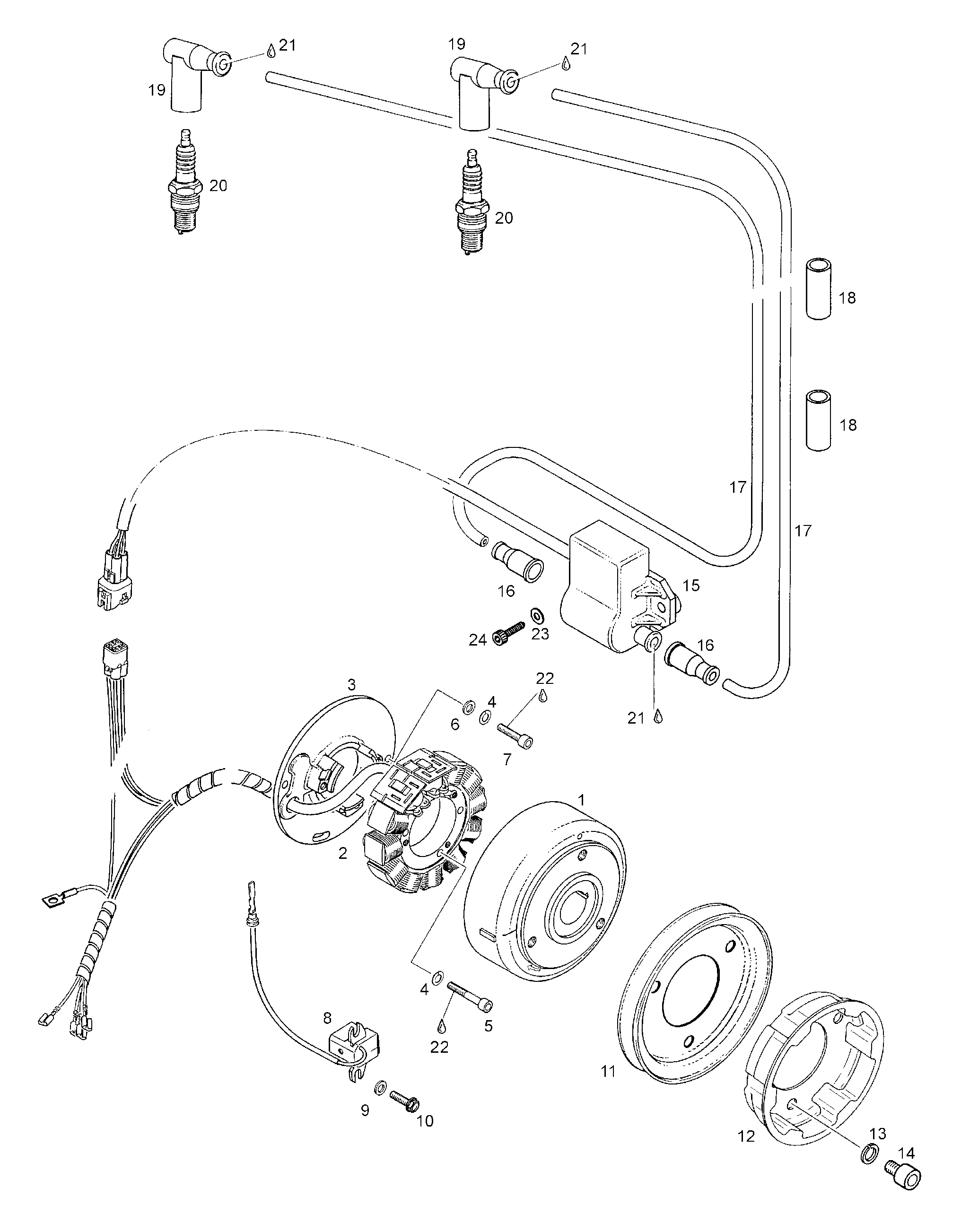

03- Fly Wheel для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
1420886255 Magneto 12V 240W. Includes items 1 thru 5Magneto 12V 240W. Includes items 1 thru 5
-
1420996820 Fly wheelFly wheel
-
2420886605 Stator plate assy. Includes items 2 thru 5Stator plate assy. Includes items 2 thru 5
-
3420965450 Stator plateStator plate
-
4420945750 Sring washerSring washer
-
5420940880 Allen screw M5x30Allen screw M5x30
-
6420927571 WasherWasher
-
7420840515 Allen screw M5x18Allen screw M5x18
-
8420965762 Pick up assyPick up assy
-
9420827800 WasherWasher
-
10420941925 Taptite screw M5x16Taptite screw M5x16
-
11420980486 V-belt pulleyV-belt pulley
-
12420852414 Starting pulleyStarting pulley
-
13420845311 Lock washerLock washer
-
14420841521 Allen screw M8x12Allen screw M8x12
-
15420965756 Electronic box assy. Includes items 15 thru 19Electronic box assy. Includes items 15 thru 19
-
16420960550 Protection capProtection cap
-
17420965528 Ignition cable 640 mmIgnition cable 640 mm
-
18420830962 Protection hoseProtection hose
-
19414864000 Spark plug connectorSpark plug connector
-
20414961100 Spark plug BR9ESSpark plug BR9ES
-
21420897330 Lithium greaseLithium grease
-
22420899785 Loct. 221/violetLoct. 221/violet
-
2320003 WasherWasher
-
2440030 Screw M6x20Screw M6x20
