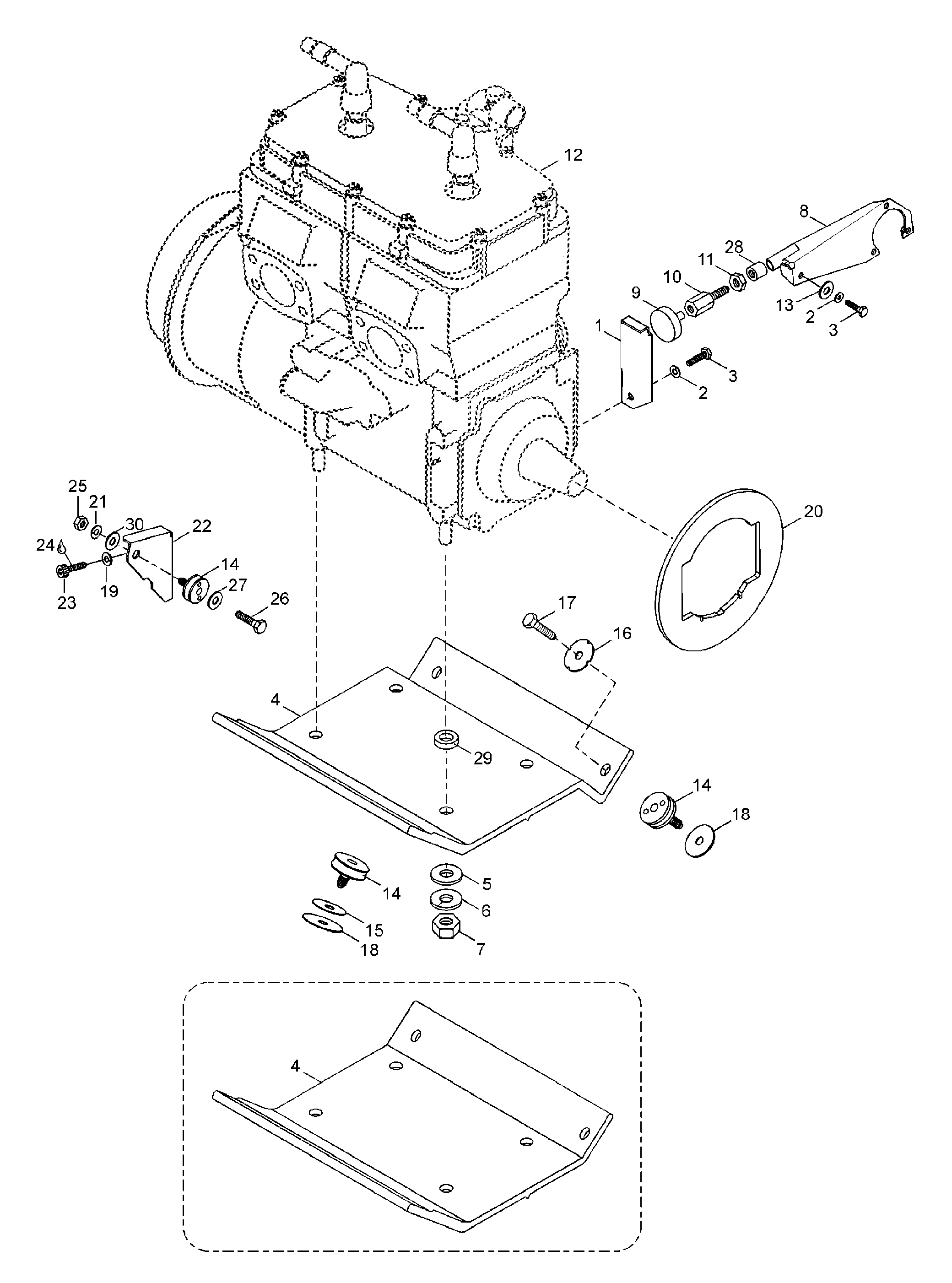

01- Engine Mount Plate для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
220052 WasherWasher
-
340029 Screw M6x16Screw M6x16
-
45244505 Engine supportEngine support
-
520105 Washer, hardenedWasher, hardened
-
620047 Spring washerSpring washer
-
733004 Nut M10Nut M10
-
85345443 Support plate weld.Support plate weld.
-
9570025100 StopperStopper
-
10517244200 ScrewScrew
-
1133063 Nut M12Nut M12
-
1211000051 Engine 593RAVEEngine 593RAVE
-
1320009 WasherWasher
-
145441913 Rubber insulatorRubber insulator
-
1520080 WasherWasher
-
16512056700 Lock washerLock washer
-
1740228 Screw M10x16Screw M10x16
-
18546221 WasherWasher
-
285445247 SleeveSleeve
-
295444830 SpacerSpacer
