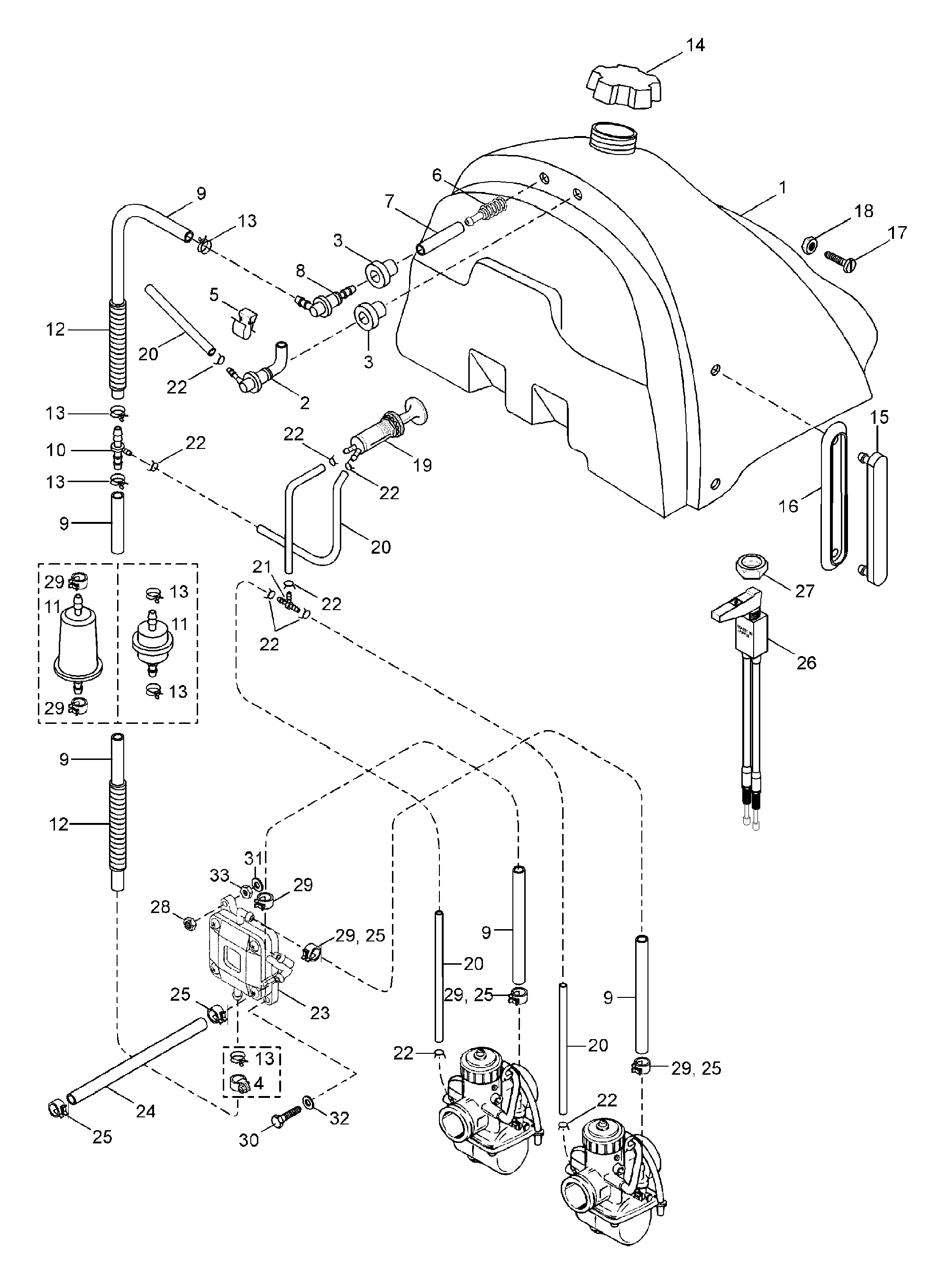

02- Fuel Tank для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
15243841 Fuel tank, holesFuel tank, holes
-
25442152 Air vent fitting a’ssyAir vent fitting a’ssy
-
328037 RubberRubber
-
6414872100 Fuel filterFuel filter
-
739048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
85341709 Angle adapterAngle adapter
-
939004 Fuel line 8/5Fuel line 8/5
-
11513032982 Fuel filterFuel filter
-
1228012 TubingTubing
-
1327086 ClampClamp
-
14572230500 Cap assemblyCap assembly
-
15572015900 Fuel level gaugeFuel level gauge
-
16570018000 Fuel merer, rubberFuel merer, rubber
-
1740211 Screw M6x35Screw M6x35
-
1833200 Nut M6Nut M6
-
2039035 Airhose 5/3Airhose 5/3
-
22543230 Clamp, primer hodeClamp, primer hode
-
23403900900 Fuel pumpFuel pump
-
2439001 Fuel line 11/6Fuel line 11/6
-
25414420700 Spring clipSpring clip
-
26512059093 ChokeChoke
-
27512059094 Elastic nutElastic nut
-
2833010 Nut elastic M6Nut elastic M6
-
3040030 Screw M6x20Screw M6x20
