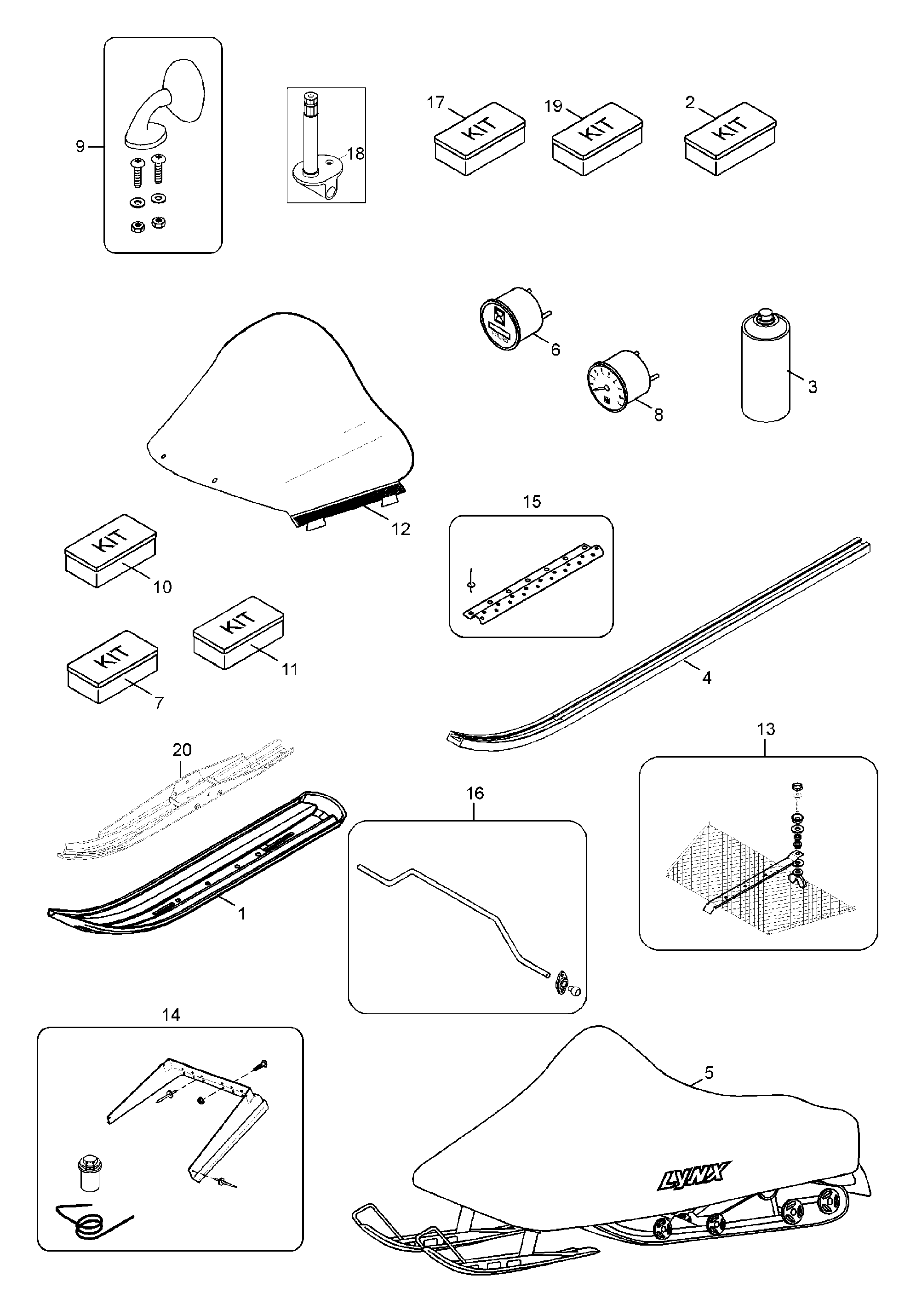

11- Accessories для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
15242372 Skiliner, blueSkiliner, blue
-
15242167 Skiliner, blackSkiliner, black
-
15242374 skiliner, yellowskiliner, yellow
-
31312 Spray-paint, blackSpray-paint, black
-
45343351 Runner shoe, yellowRunner shoe, yellow
-
57820063 CoverCover
-
65343943 Hour Meter KitHour Meter Kit
-
75245043 Convertible Seat KitConvertible Seat Kit
-
85342093 Temperature Gauge KitTemperature Gauge Kit
-
9211216501 Mirror kitMirror kit
-
105245043 Convertible Seat KitConvertible Seat Kit
-
115342689 Reverse kitReverse kit
-
125144974 Windscreen, low, blackWindscreen, low, black
-
125143620 Windscreen, highWindscreen, high
-
125143618 Windscreen, lowWindscreen, low
-
135342325 Grid kitGrid kit
-
145342324 Ice KitIce Kit
-
155345050 Side Binding redSide Binding red
-
155345051 Side Binding yellowSide Binding yellow
-
155345052 Side Binding blackSide Binding black
-
165342815 Sway Bar Kit (d14)Sway Bar Kit (d14)
-
175145074 Bottom Protector, yellowBottom Protector, yellow
-
175145075 Bottom Protector, blueBottom Protector, blue
-
175145076 Bottom Protector, blackBottom Protector, black
-
175145073 Bottom Protector, redBottom Protector, red
-
185245490 Ski Leg, Case HardenedSki Leg, Case Hardened
-
195342710 Fuel gauge kitFuel gauge kit
-
205243680 Frame of Plastic Ski, redFrame of Plastic Ski, red
-
215345891 Electric starter satsElectric starter sats
Все узлы модели:
- 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- Engine Mount Plate
- 01- Muffler
- 01- Oil Pump
- 01- Oil Tank
- 01- Radiator, Hoses
- 02- Carburetor
- 02- Fuel Tank
- 03- Fly Wheel
- 04- Rewind Starter
- 05- Chaincase
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Front Suspension
- 08- Rear Suspension
- 08- Rear Suspension
- 08- Rear Suspension
- 09- Body
- 09- Decals
- 09- Frame
- 09- Hood
- 10- Electric
- • 11- Accessories
- 11- Tools
