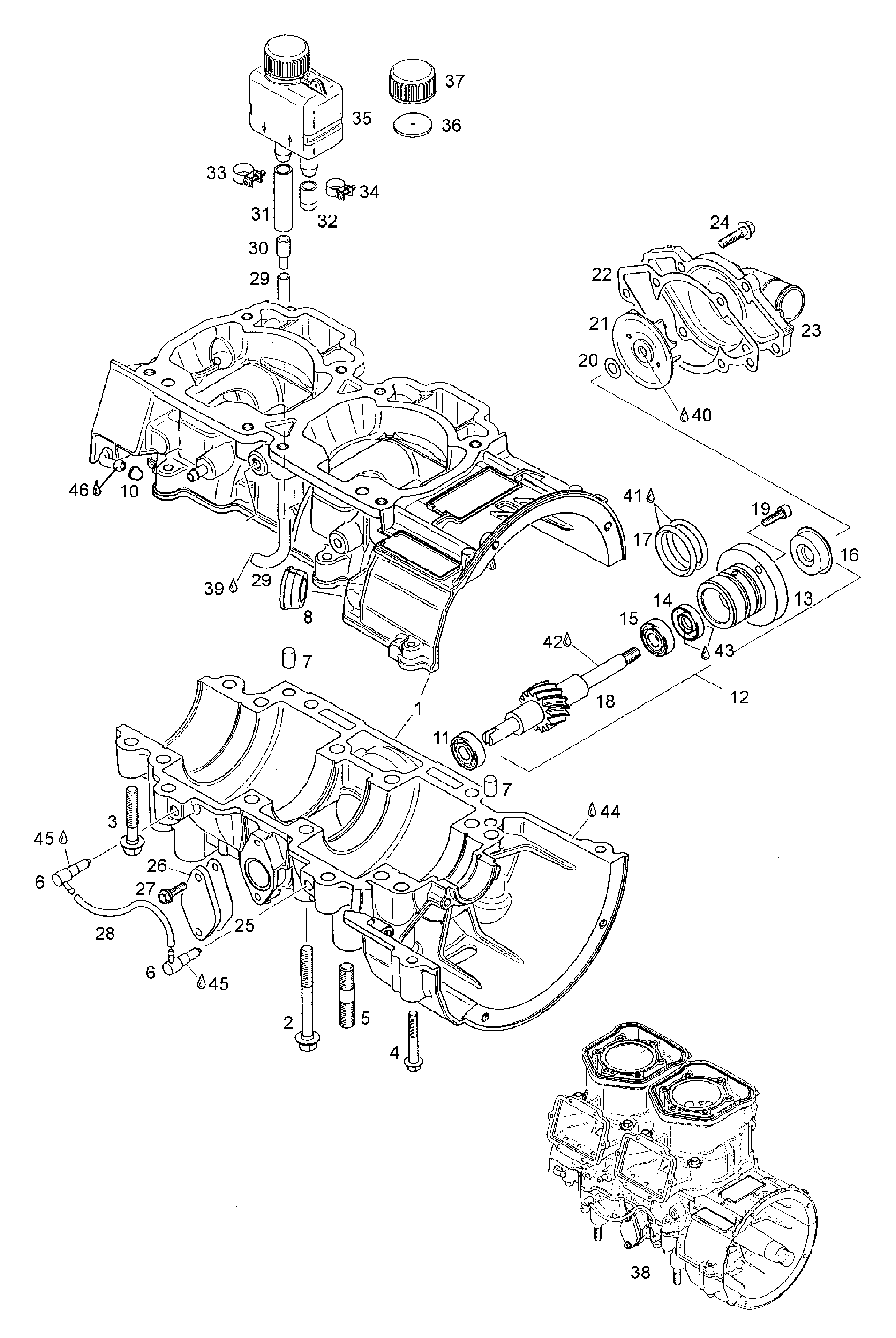

05- Crankcase для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
1420888208 Crankcase assy. Includes items 1 thru 9Crankcase assy. Includes items 1 thru 9
-
2420640831 Screw M8x75Screw M8x75
-
3420640436 Screw M8x45Screw M8x45
-
4420640311 Screw M6x45Screw M6x45
-
5420941644 Stud M10x23Stud M10x23
-
6420956510 Checkvalve assyCheckvalve assy
-
7420632010 Pin 8x12Pin 8x12
-
8420860965 Cable grommetCable grommet
-
10420960770 Closure capClosure cap
-
11420232100 Ball bearingBall bearing
-
12420837421 Waterpump/oilpump sha. Includes items 12 thru 18Waterpump/oilpump sha. Includes items 12 thru 18
-
14420230195 Oil sealOil seal
-
15420232100 Ball bearingBall bearing
-
16420650370 Rotary sealRotary seal
-
17420950890 O-ringO-ring
-
19420840511 Allen screw M5x16Allen screw M5x16
-
20420227945 Thrust washerThrust washer
-
21420222505 ImpellerImpeller
-
22420931810 GasketGasket
-
23420922630 Pump housingPump housing
-
24420240031 Screw M6x25Screw M6x25
-
38300059302 Short block engineShort block engine
-
39420297710 Pu-glue, 310mlPu-glue, 310ml
-
40420897651 Loctite, blue 10ccLoctite, blue 10cc
-
43420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
44420297905 Sealing compound, 310Sealing compound, 310
-
45420899788 Loctite, green, 5gr.Loctite, green, 5gr.
-
46420899564 klueber isoflexklueber isoflex
