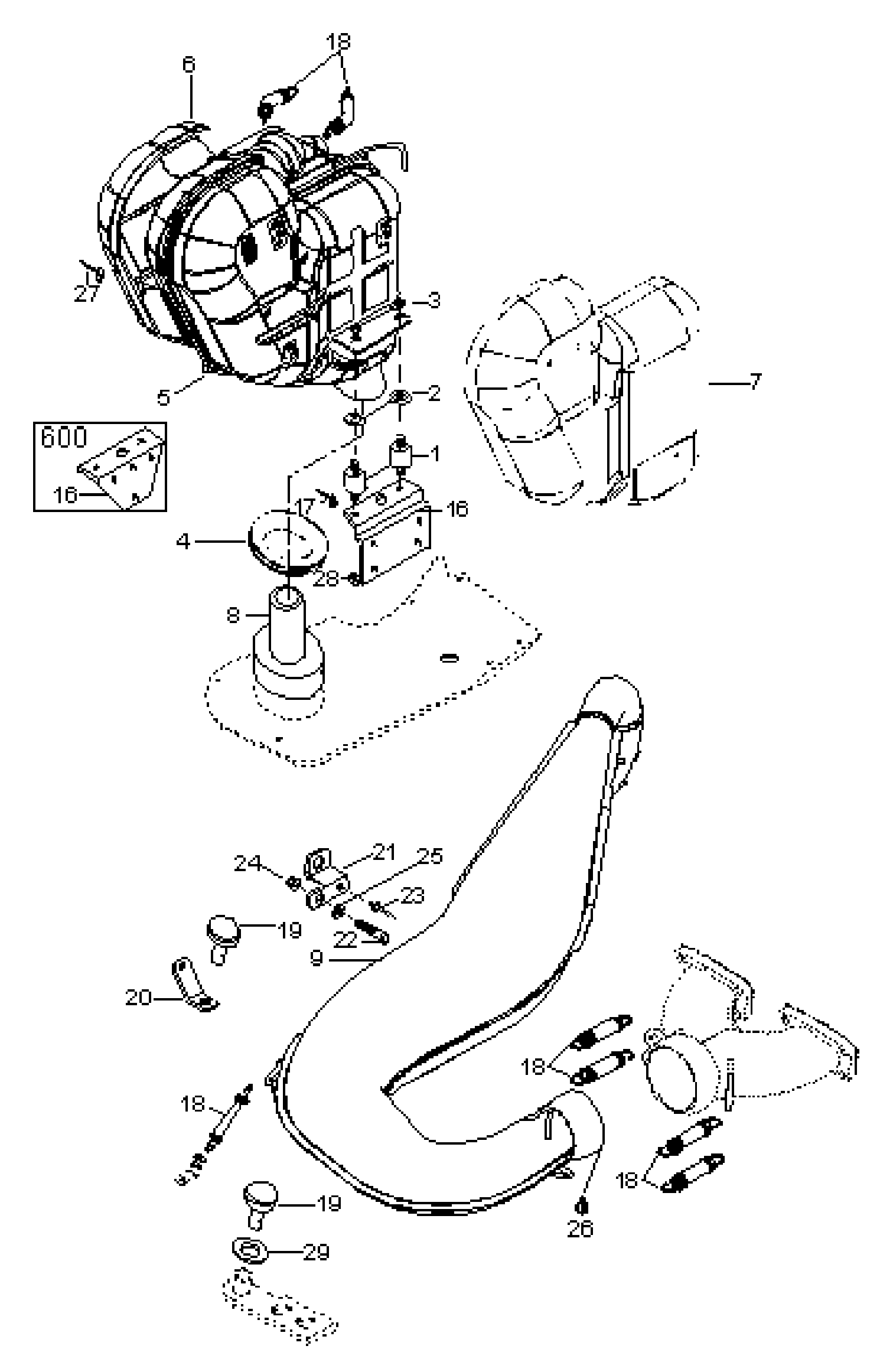

01- Muffler для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
1514052889 Rubber damperRubber damper
-
5514052724 After mufflerAfter muffler
-
6514052732 Deflector R.H.Deflector R.H.
-
7514052733 Deflector L.H.Deflector L.H.
-
85345778 Extension Tube Weld.Extension Tube Weld.
-
95145519 Tune pipe. Includes items 9 thru 15Tune pipe. Includes items 9 thru 15
-
10514052984 Cover lowerCover lower
-
10514052714 Cover, upperCover, upper
-
12514052716 IsolationIsolation
-
13514052962 ClampClamp
-
14514052735 ClampClamp
-
15514052859 ClampClamp
-
165345581 Support, after mufflerSupport, after muffler
-
1736489 RivetRivet
-
18415107100 SpringSpring
-
19570048700 Rubber damperRubber damper
-
26413710300 Loctite 17914Loctite 17914
-
27390910000 RivetRivet
-
2920087 WasherWasher
