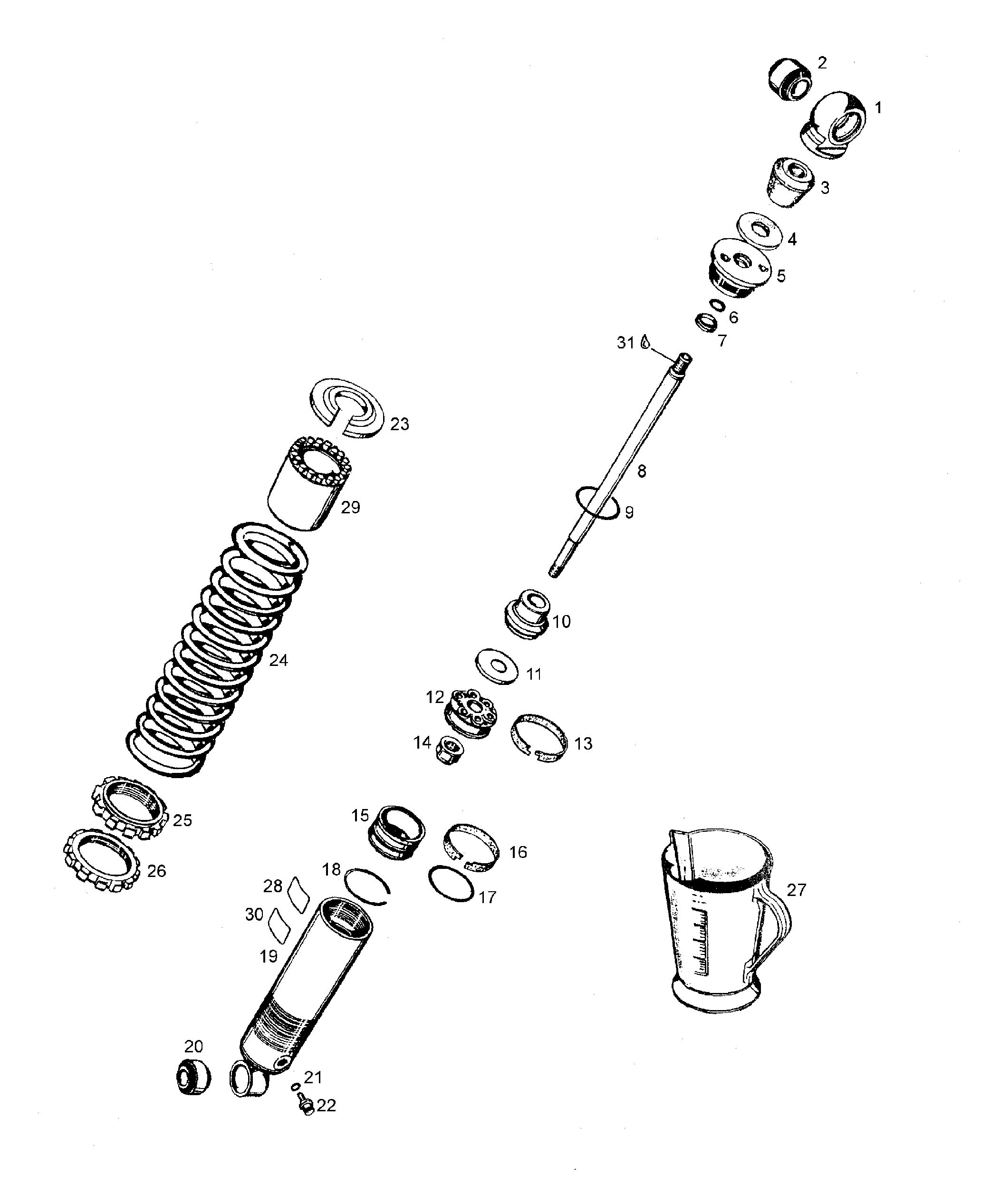

08- Rear Suspension для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
123095 Shock front arm. Includes items 1 thru 33Shock front arm. Includes items 1 thru 33
-
1WP361206711 Mounting eyeMounting eye
-
2WP46811734 SilentblockSilentblock
-
3WP36120548 BumprubberBumprubber
-
4WP46811656 DiscDisc
-
5WP36120711 Screw capScrew cap
-
6WP46810011 O-ringO-ring
-
7WP46810027 Duest sealDuest seal
-
8WP36120707 Piston rodPiston rod
-
9WP36120064 O-ringO-ring
-
10WP36120712S1 AdaptorAdaptor
-
11WP36120710 Rebound bushRebound bush
-
12WP36120071 PistonPiston
-
13WP36120040 Piston ringPiston ring
-
14WP36120052 NutNut
-
15WP36120440 Separation piston d=36Separation piston d=36
-
16WP3612444 Piston ringPiston ring
-
17WP36120064 O-ringO-ring
-
18WP40540015 CirclipCirclip
-
19WP36120675 TubeTube
-
20WP46811734 SilentblockSilentblock
-
21WP46810893 O-ringO-ring
-
22WP36120151 NitrogenplugNitrogenplug
-
22WP93010053 Spring d=10.00Spring d=10.00
-
23WP36120643 Spring retainerSpring retainer
-
25WP36120642 Spring retainerSpring retainer
-
26WP36120641 Spring retainerSpring retainer
-
27WP46810208 Shock absorber oilShock absorber oil
-
28WP52000039 Lynx-decalLynx-decal
-
29WP36120467 Protection sleeveProtection sleeve
-
30WP52000012 Caution decalCaution decal
-
31413707400 Loctite 271, 10ccLoctite 271, 10cc
