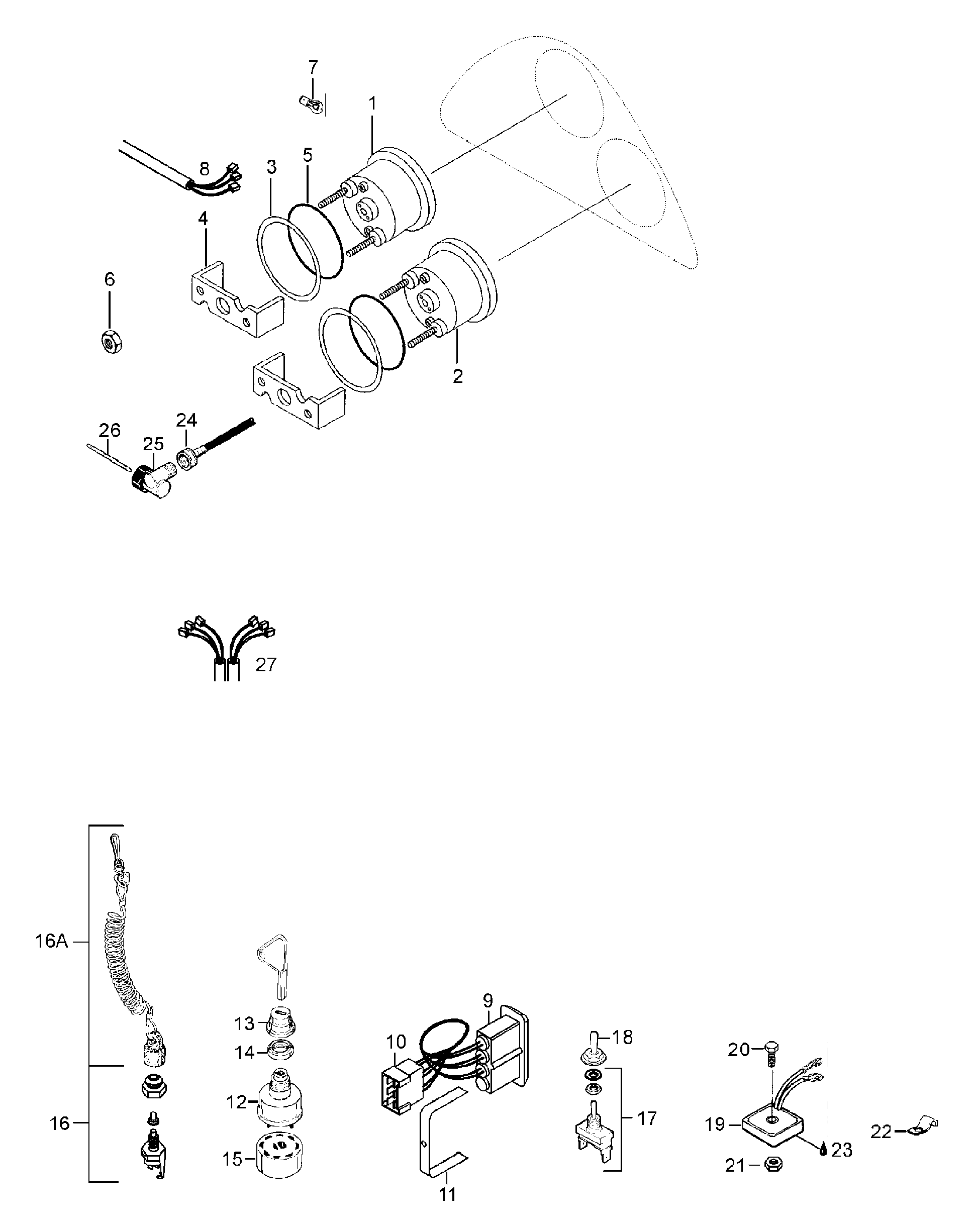

10- Electric для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-
1515175335 Speedometer whiteSpeedometer white
-
2515175340 Tachometer whiteTachometer white
-
3517258500 WasherWasher
-
4414806500 HolderHolder
-
5414807100 O-ringO-ring
-
633062 Nut elastic M6Nut elastic M6
-
7410504200 Instrumentation bulbInstrumentation bulb
-
8549147 Harness assy, speedomHarness assy, speedom
-
95441998 Signal lamp assy. Includes items 9 thru 11Signal lamp assy. Includes items 9 thru 11
-
932025 PanelPanel
-
1042036 Connector HousingConnector Housing
-
115442157 Fit plateFit plate
-
1242019 Ignition SwitchIgnition Switch
-
13570013700 Boot switchBoot switch
-
14410112100 Face nutFace nut
-
15572150700 Ignition switch blockIgnition switch block
-
16544957 Emercency switch assy. Includes items 16 thru 16Emercency switch assy. Includes items 16 thru 16
-
16a4299163 Switch cap assySwitch cap assy
-
17410110700 SwitchSwitch
-
18570013900 Rubber cover for switchRubber cover for switch
-
195441403 Regulator AssyRegulator Assy
-
2040003 Screw M6x35Screw M6x35
-
2133010 Nut elastic M6Nut elastic M6
-
22414227300 ClampClamp
-
23413706400 Litium-greaseLitium-grease
-
245343391 Speedometer cableSpeedometer cable
-
2535113 Drive angle 1:1.2Drive angle 1:1.2
-
2645075 Square pin l=75mmSquare pin l=75mm
-
275244859 Wire assyWire assy
