08- Front Suspension для BRP Lynx Enduro 600 Special - 2000
-
№АртикулНазвание
-

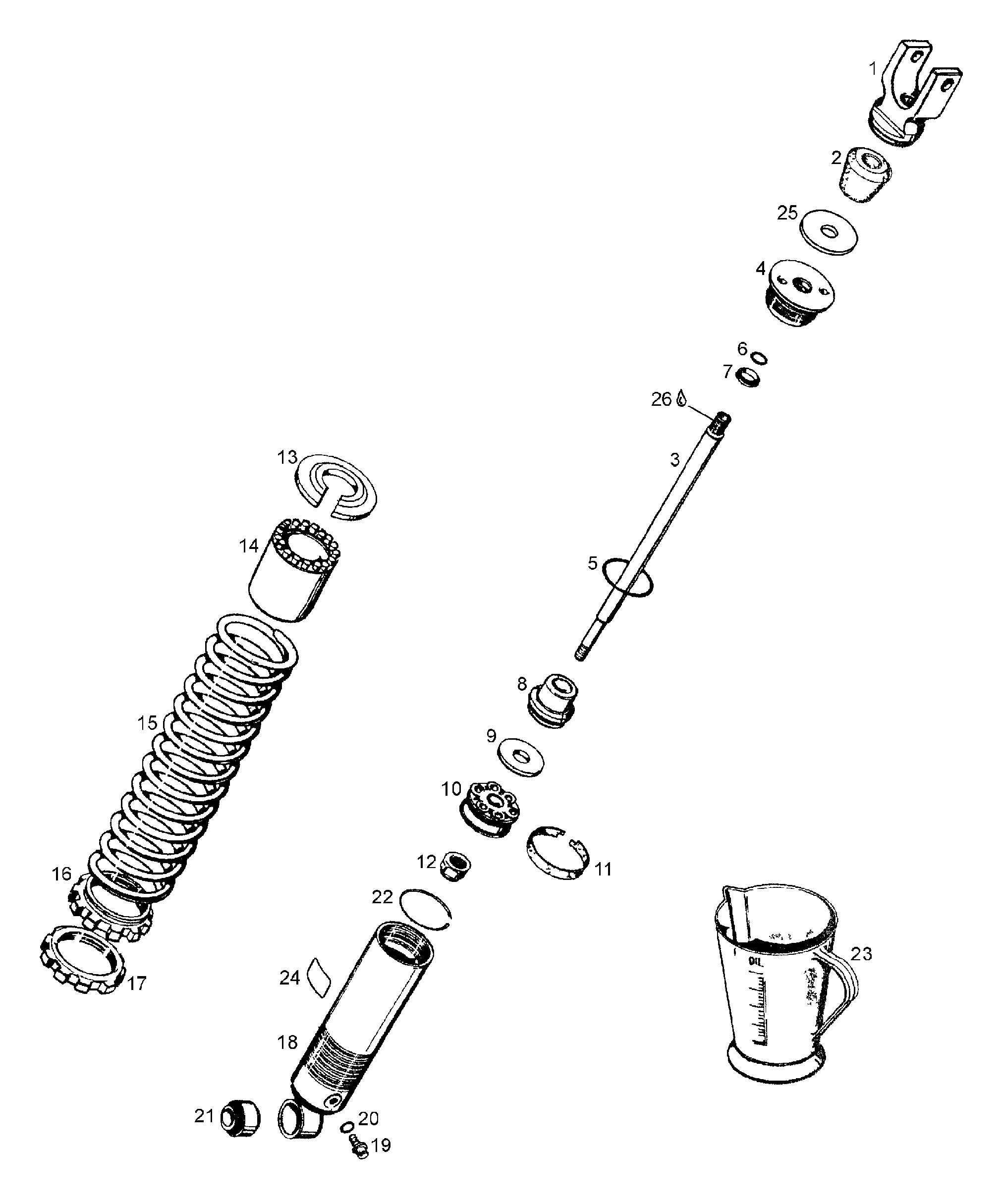

123094 Shock LYNX, ski. Includes items 1 thru 24Shock LYNX, ski. Includes items 1 thru 24
-
1WP361206701 Mounting forkMounting fork
-
2WP36120548 BumprubberBumprubber
-
3WP36120709 Piston rodPiston rod
-
4WP36120711 Screw capScrew cap
-
5WP36120064 OringOring
-
6WP46810011 OringOring
-
7WP46810027 Dust sealDust seal
-
8WP36120712S1 AdaptorAdaptor
-
9WP36120710 Rebound bushRebound bush
-
10WP36120071 PistonPiston
-
11WP36120040 Piston ringPiston ring
-
12WP36120052 NutNut
-
13WP36120643 Spring retainerSpring retainer
-
14WP36120467 Protection sleeveProtection sleeve
-
15WP93010112 Spring d=9.25Spring d=9.25
-
16WP36120641 Spring retainerSpring retainer
-
17WP36120642 Spring retainerSpring retainer
-
18WP36120675 TubeTube
-
19WP36120151 Nitrogen plugNitrogen plug
-
20WP46810893 O-ringO-ring
-
21WP46811735 Silent blockSilent block
-
22WP40540015 CirclipCirclip
-
23WP4681208 ShockabsorberoilShockabsorberoil
-
24WP52000039 Lynx decalLynx decal
-
25WP46811656 DiscDisc
-
26413707400 Loctite 271, 10ccLoctite 271, 10cc
