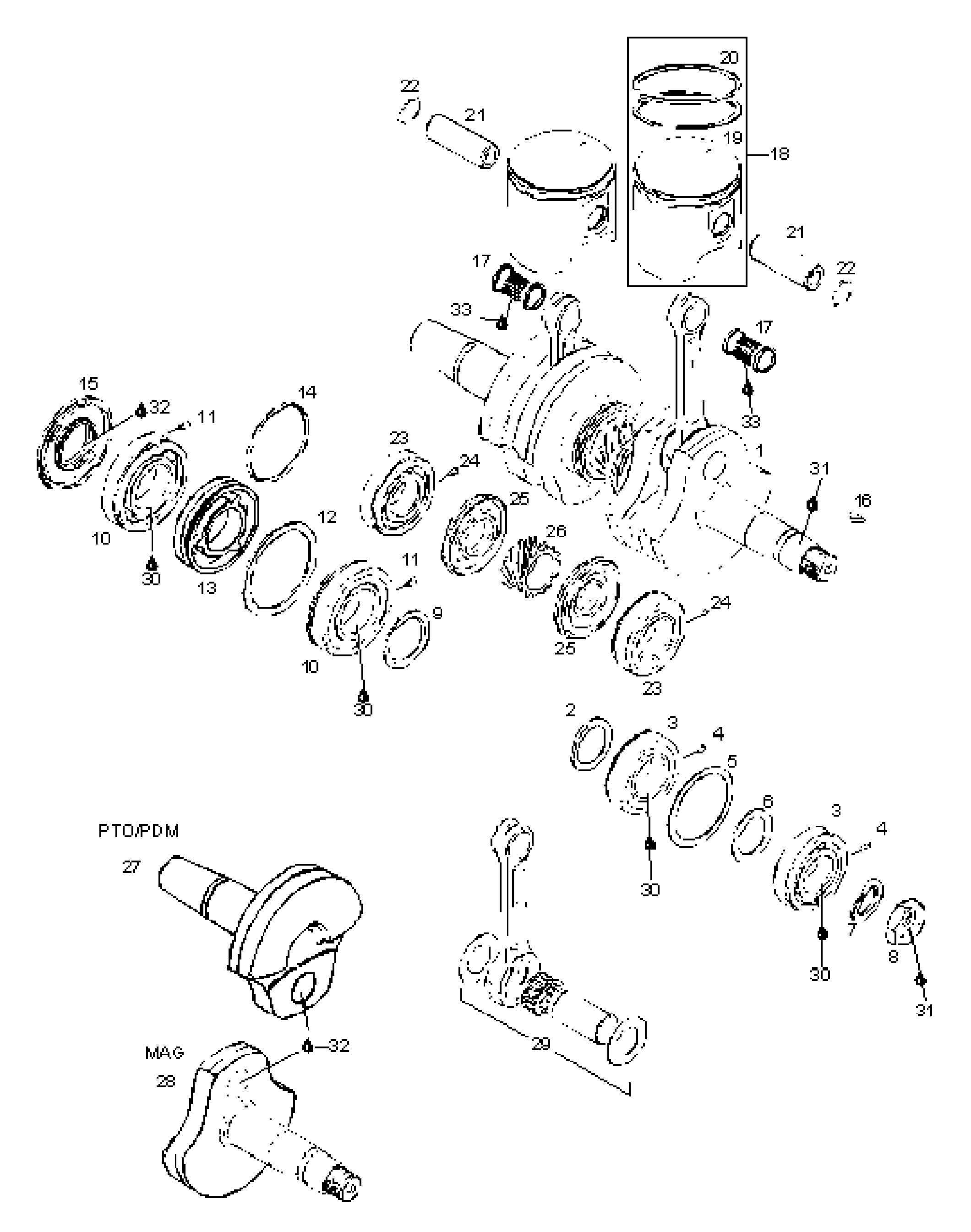

01- Crankshaft Assy для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1420887986 Crankshaft assy. Includes items 1 thru 16Crankshaft assy. Includes items 1 thru 16
-
2420827445 SpacerSpacer
-
3420832538 Ball bearing assy. Includes items 3 thru 4Ball bearing assy. Includes items 3 thru 4
-
4420929972 Drive pinDrive pin
-
5420827050 Retainer diskRetainer disk
-
6420427684 Adjuster washerAdjuster washer
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420827760 Shim, 2 mmShim, 2 mm
-
10420832574 Bearing 6207 assy. Includes items 10 thru 11Bearing 6207 assy. Includes items 10 thru 11
-
11420929972 PinPin
-
12420927710 Retaining diskRetaining disk
-
13420830294 Labyrint sleeveLabyrint sleeve
-
14420830370 O-ringO-ring
-
15420831950 Oil sealOil seal
-
16420246015 Woodruff-keyWoodruff-key
-
17420832425 Needle cageNeedle cage
-
18420887615 Piston 77.90 mm. Includes items 18 thru 20Piston 77.90 mm. Includes items 18 thru 20
-
18420887616 Piston 78.15 mm. Includes items 18 thru 20Piston 78.15 mm. Includes items 18 thru 20
-
19420815020 Retangular ring 78.00 mRetangular ring 78.00 m
-
19420815021 Retangular ring 78.25mRetangular ring 78.25m
-
20420815090 Semi-trap. ring 78.00mmSemi-trap. ring 78.00mm
-
20420815091 Semi-trap. ring 78.25mmSemi-trap. ring 78.25mm
-
21420916370 Piston pinPiston pin
-
22420845100 CirclipCirclip
-
23420832538 Bearing 6206 assy. Includes items 23 thru 24Bearing 6206 assy. Includes items 23 thru 24
-
24420929972 Drive pinDrive pin
-
25420831990 Oil sealOil seal
-
26420935748 Central gear 14TCentral gear 14T
-
27420818704 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
28420818734 Crankshaft MAG.-sideCrankshaft MAG.-side
-
29420887988 Repair kit MAG. sideRepair kit MAG. side
-
29420887989 Repair kit P.T.O. sideRepair kit P.T.O. side
-
30420297434 Loctite 15378Loctite 15378
-
31420899785 Loctite 221, 10cc, viol.Loctite 221, 10cc, viol.
-
32420897340 Loctite 14486Loctite 14486
