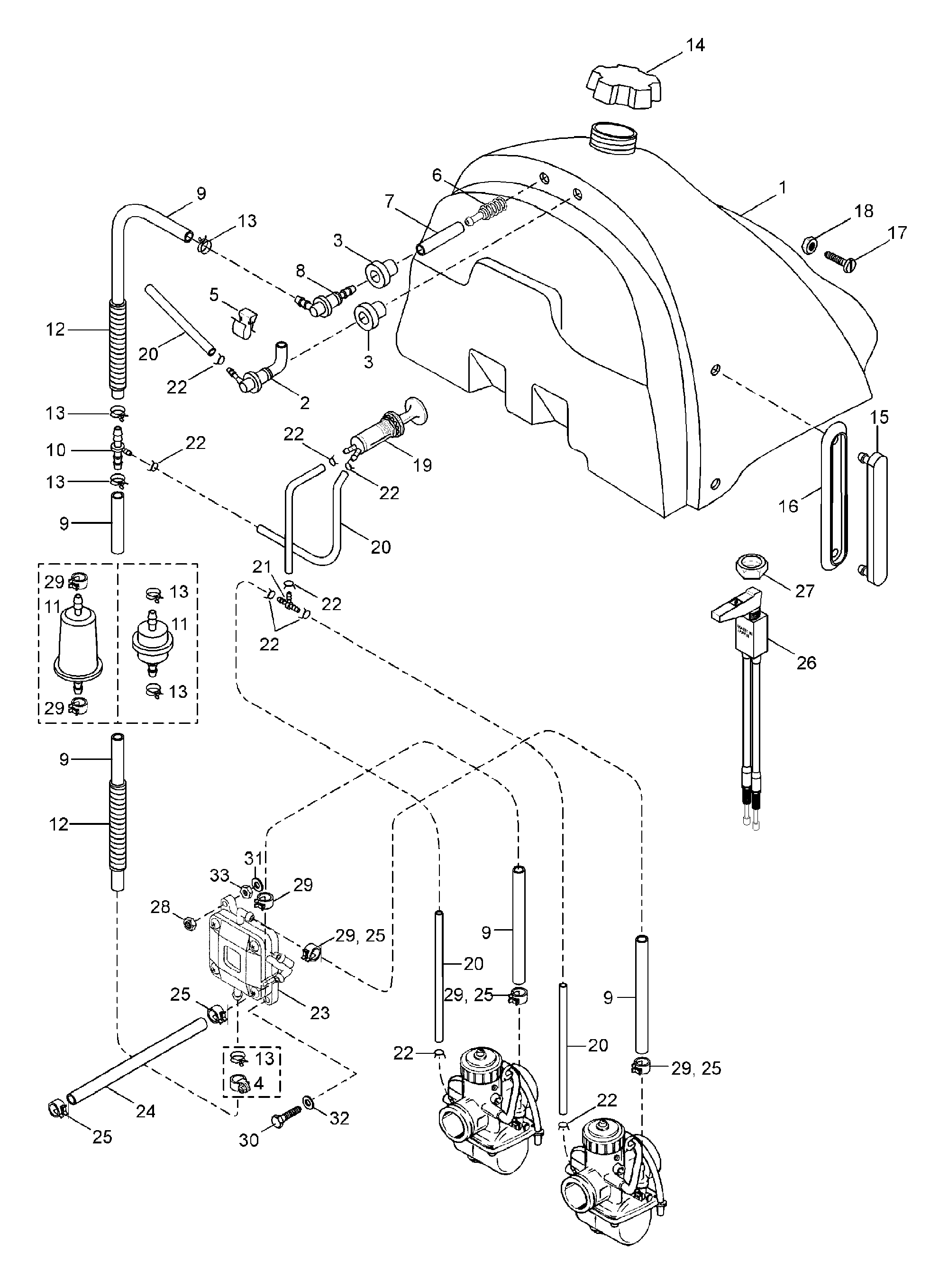

02- Fuel Tank для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
15243841 Fuel tank, holesFuel tank, holes
-
25442152 Air vent fitting a’ssyAir vent fitting a’ssy
-
328037 RubberRubber
-
427040 ClampClamp
-
5414227300 ClipClip
-
6414872100 Fuel filterFuel filter
-
739048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
85341709 Angle adapterAngle adapter
-
939004 Fuel line 8/5Fuel line 8/5
-
939046 Hose 11/8Hose 11/8
-
10415119300 Plastic T-fitting (Primer)Plastic T-fitting (Primer)
-
11414536500 Fuel filterFuel filter
-
1228012 TubingTubing
-
1327119F ClampClamp
-
14572230500 Cap assemblyCap assembly
-
15572015900 Fuel level gaugeFuel level gauge
-
16570018000 Fuel merer, rubberFuel merer, rubber
-
1740211 Screw M6x35Screw M6x35
-
1833200 Nut M6Nut M6
-
19414479200 PrimerPrimer
-
2039035 Airhose 5/3Airhose 5/3
-
2121062 “T”fitting, fuel“T”fitting, fuel
-
22543230 Clamp, primer hodeClamp, primer hode
-
23403901200 Fuel pumpFuel pump
-
2439001 Fuel line 11/6Fuel line 11/6
-
25414420700 Spring clipSpring clip
-
26535482 ChokeChoke
-
27414977200 Elastic nutElastic nut
-
29414554800 Spring clampSpring clamp
-
3040029 Screw M6x16Screw M6x16
-
3120009 WasherWasher
-
3220052 Spring washerSpring washer
-
3333200 Nut M6Nut M6
