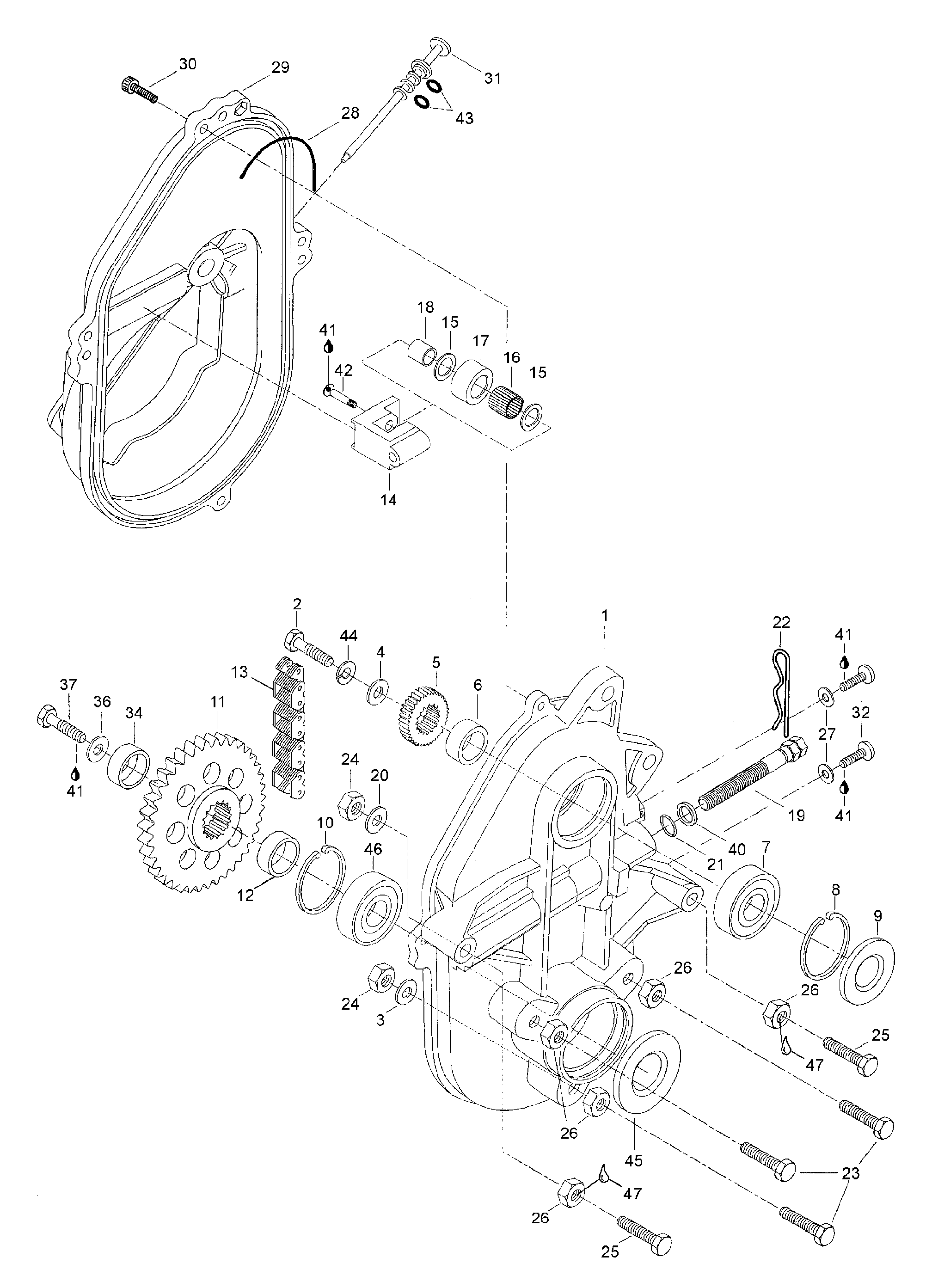

05- Chaincase для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1504151777 ChaincaseChaincase
-
240036 Screw M8x20Screw M8x20
-
320073 Copper washerCopper washer
-
420076 WasherWasher
-
5504084300 Sprocket Z=25Sprocket Z=25
-
6504093400 ShimShim
-
7405404400 Bearing 6205Bearing 6205
-
8371901700 CirclipCirclip
-
9414531200 SealSeal
-
1031030 CirclipCirclip
-
11504085500 Sprocket Z=44Sprocket Z=44
-
12501021800 SpacerSpacer
-
13504151857 Chain driving, 74Chain driving, 74
-
14504081000 Tensioner, MachTensioner, Mach
-
15504080300 WasherWasher
-
1631050 Needle bearingNeedle bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Tension adjuster scr.Tension adjuster scr.
-
2020005 WasherWasher
-
21414484400 O-ringO-ring
-
22414575600 PinPin
-
2340201 Screw M10x40Screw M10x40
-
2433012 Nut elastic M10Nut elastic M10
-
2540189 Screw M10x65Screw M10x65
-
26504083800 SpacerSpacer
-
2720042 GasgetGasget
-
28414362300 O-ringO-ring
-
29080037100 CoverCover
-
3040340 Self tapping screwSelf tapping screw
-
31572092700 Filler cap assyFiller cap assy
-
32732601132 Allen screwAllen screw
-
34501022400 SpacerSpacer
-
3620068 WasherWasher
-
3740040 Screw M10x25Screw M10x25
-
4020005 WasherWasher
-
41413707400 Loctite 271\10 ccLoctite 271\10 cc
-
42732601144 ScrewScrew
-
4328402 O-ringO-ring
-
4420072 Lock washerLock washer
-
45504151925 SealSeal
-
46405403900 BearingBearing
-
47413703000 Loctite 242\10 ccLoctite 242\10 cc
