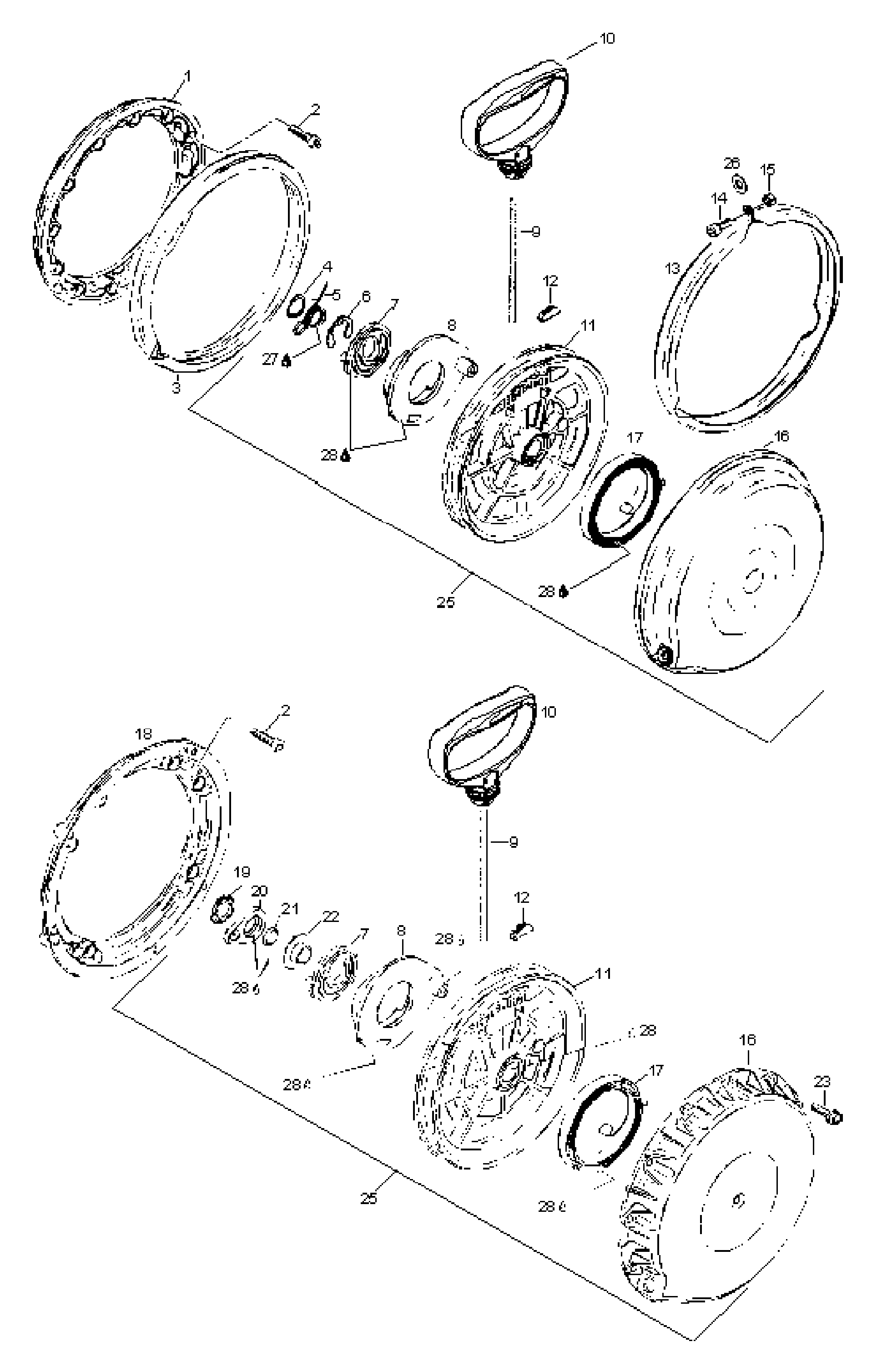

04- Rewind Starter для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1420887441 Rewind starter kit. Includes items 1 thru 17Rewind starter kit. Includes items 1 thru 17
-
1420810860 Connection flangeConnection flange
-
2420840861 Allen screw M6x25Allen screw M6x25
-
3420860950 Damper ringDamper ring
-
4420945770 CirclipCirclip
-
5420938986 Locking springLocking spring
-
6420845300 Retaining ringRetaining ring
-
7420852301 Pawl lockPawl lock
-
8420852296 PawlPawl
-
9420852491 Starter rope 2,2mStarter rope 2,2m
-
9412500100 Starter rope 30mStarter rope 30m
-
10572084400 HandleHandle
-
11420852284 Rope sheaveRope sheave
-
12420852070 Key clampKey clamp
-
13420851330 ClampClamp
-
14420241236 Allen screw M6x16Allen screw M6x16
-
15420842040 Lock nut M6Lock nut M6
-
16420810875 Starter housing assyStarter housing assy
-
17420939115 Rewind spring assyRewind spring assy
-
25420887442 Rewind starter assyRewind starter assy
-
27420297433 Molykote G-NMolykote G-N
-
28420897061 Silicon comb. greaseSilicon comb. grease
